2 IN 1 SMD Hot Air Rework Station

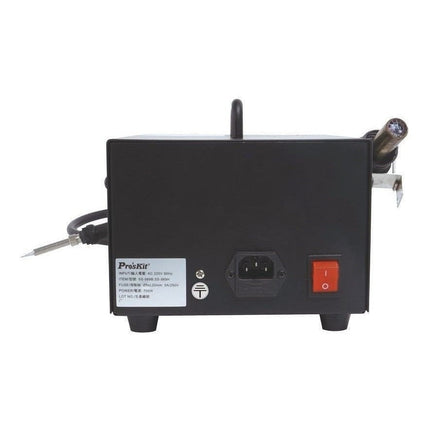

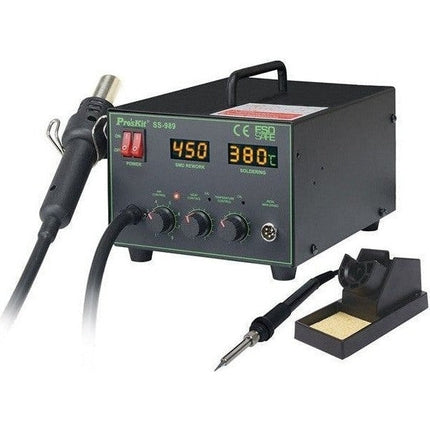

Eclipse Tools SS-989E 2 IN 1 SMD Hot Air Rework Station

Tri-Tek Electronics is an authorized distributor of Eclipse Tools products, ensuring full manufacturer warranty coverage and best pricing and factory support.

Product Overview

The Eclipse Tools SS-989E 2 IN 1 SMD Hot Air Rework Station is a high-performance tool designed for precise and efficient reworking of surface mount devices (SMD). It features accurate temperature control, a microprocessor-controlled system, and a closed circuit sensor design, making it suitable for professional and DIY electronics repair and assembly.

Features and Specifications

  • Accurate Temperature Control: Ensures precise reworking of components.
  • Microprocessor Controlled: Offers reliable and stable temperature control.
  • Temperature Calibration Function: Allows for easy adjustments and calibration.
  • Certified Safety Standards: Complies with CE, ESD, and RoHS standards.
  • High-Quality Components:
    • AWG 20 (0.5mm²) UL Certified Wires
    • Silicone handpiece cord wire heat-resistant up to 200°C
  • High Power and Fast Warm-Up:
    • Alumina Ceramic Soldering Iron Heating Element for quick heat-up.
    • Metal Heating Core for the hot air gun.
  • Energy Saving: Individual function starts save energy, or share function by two users simultaneously.
  • Adjustable Settings: Customizable temperature and air flow for various components like QFP, SOP type IC devices.
  • Interchangeable Parts: Compatible with most branded hot air nozzles and tips.
  • Auto Cool-Off Process: Prolongs the service life by keeping the blower on until the nozzle cools down.

Specifications

  • Model: SS-989E
  • Power Consumption: 700W
  • Soldering Power: 60W
  • Soldering Iron Temperature Range: 200°C ~ 480°C (392°F ~ 896°F)
  • Hot Air Temperature Range: Room temperature ~ 480°C (896°F)
  • Soldering Iron Heating Element: Alumina Ceramic
  • Hot Air Heating Element: Metal Heating Core
  • Pump/Motor Type: Diaphragm Pump
  • Air Capacity: 24L/min (max)
  • Equipment Noise: 45dB
  • Temperature Display: LED
  • Power Input: AC 110V~120V 60Hz
  • Dimensions: 10(L) x 7.5(W) x 5.5(H) in.
  • Weight: 9.25 lbs (with hot air gun)

Accessories Included

  • Hot Air Gun: AC110~120V x 1pcs (9SS-900NE-HG)
  • Soldering Iron: AC 24V/60W x 1pcs (9SS-900N-SI)
  • Soldering Stand: x 1pcs
  • Nozzles:
    • Nozzle 9SS-900-A1 (∅2.2mm) x 1pcs
    • Nozzle 9SS-900-A2 (∅6.6mm) x 1pcs
    • Nozzle 9SS-900-A3 (∅8.5mm) x 1pcs

Example Use Scenario

The SS-989E is ideal for reworking QFP and SOP type IC devices. For example, it can be used to remove and replace faulty ICs on a printed circuit board (PCB) in a professional electronics repair shop. The adjustable temperature and air flow ensure that components are reworked without damage, and the auto cool-off feature prolongs the tool's lifespan.

Why Choose the Eclipse Tools SS-989E 2 IN 1 SMD Hot Air Rework Station?

  • Accurate and Reliable: Provides precise temperature control for professional results.
  • High-Quality Construction: Built to last with certified safety standards.
  • Versatile Use: Suitable for a wide range of SMD reworking tasks.
  • Energy Efficient: Save energy with individual or shared function starts.
  • Comprehensive Kit: Includes all necessary accessories for immediate use.
Product form

Eclipse Tools SS-989E 2 IN 1 SMD Hot Air Rework Station Tri-Tek Electronics is an authorized distributor of Eclipse Tools... Read more

Free local pickup in our store

SKU: ECLSS-989E
UPC: 4711552158397

Pre-order Now

$226.06 $193.79

  •  Restock is coming soon!
