Description

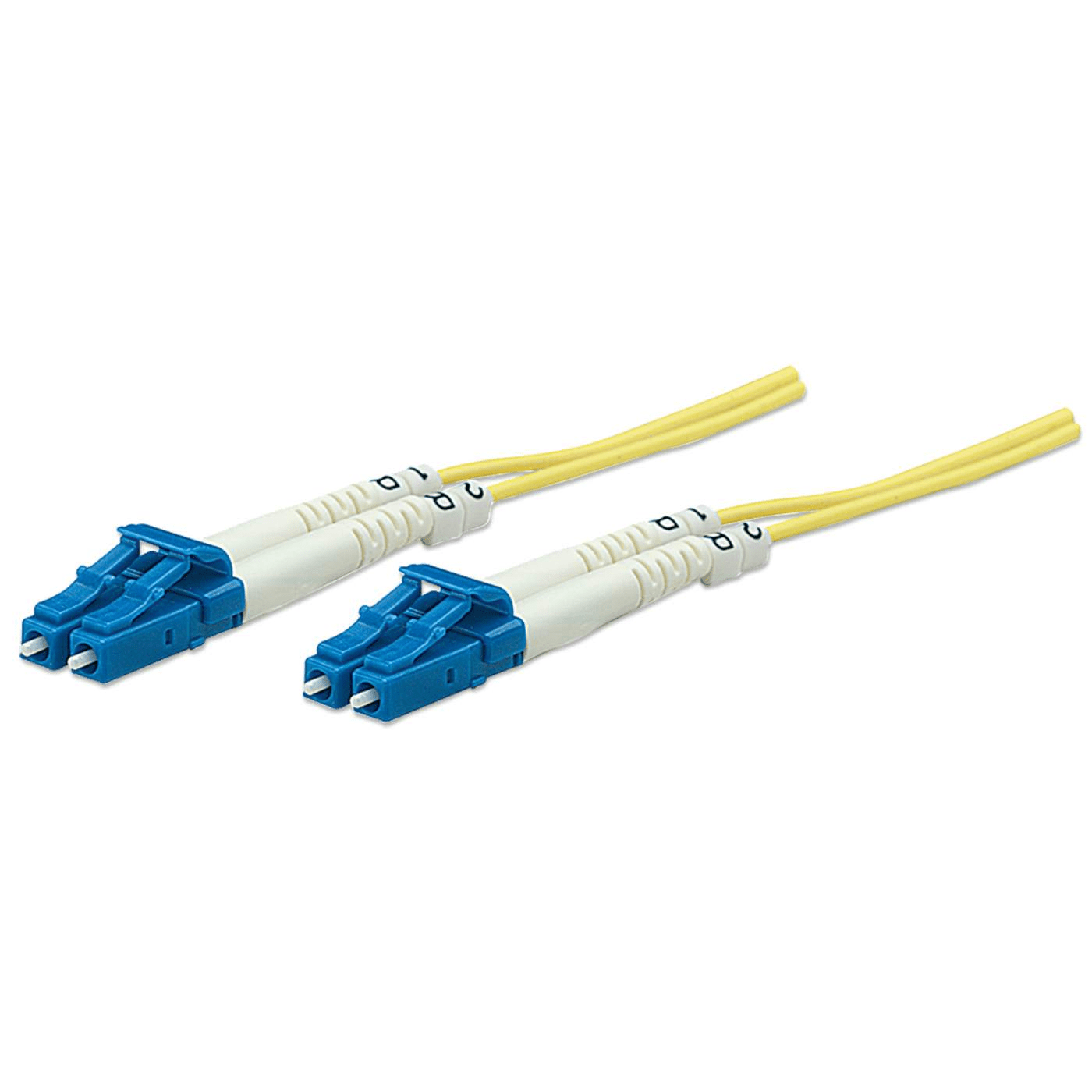

Intellinet 751674 — 3 m Duplex LC to LC Single‑Mode Fiber Patch Cable (SM DPLX LC‑LC)
Product Overview
The Intellinet 751674 is a premium 3-meter (approximately 10-foot) single-mode fiber optic patch cable designed for high-performance networking environments. Featuring duplex LC to LC UPC connectors and constructed with OS2 9/125 μm bend-insensitive fiber, this cable ensures optimal signal integrity across long-distance connections. Ideal for use in data centers, telecom rooms, interconnect and cross-connect systems, it supports reliable, low-loss optical transmissions.
Its compact 2.0 mm jacket is OFNR-rated, making it suitable for riser installations in structured cabling systems. The G.657.A1 bend-insensitive fiber provides enhanced flexibility without compromising performance, particularly useful in high-density rack environments or tight installation spaces. Each cable comes with a factory-issued test report and is backed by a lifetime warranty.
As an authorized distributor of Intellinet products, Tri-Tek Electronics ensures full manufacturer warranty coverage, factory support, and the most competitive pricing.
Features and Specifications
-
Cable Length: 3 meters (approx. 10 ft)
-

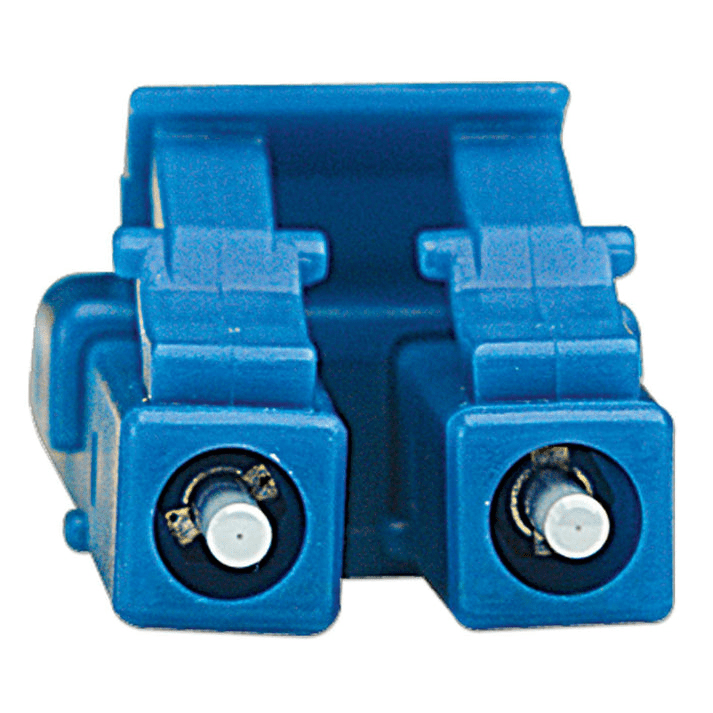

Connector Type: Duplex LC to LC, UPC polish
-
Fiber Type: Single-Mode OS2 (9/125 μm)
-
Fiber Standard: G.657.A1 bend-insensitive (compatible with G.652.D)
-
Jacket Rating: OFNR (Optical Fiber Nonconductive Riser)
-
Outer Diameter: 2.0 mm
-
Insertion Loss: ≤ 0.3 dB (typical ≤ 0.2 dB)
-
Return Loss: ≥ 55 dB
-
Minimum Bend Radius: 10 mm
-
Operating Temperature: –40 °C to +85 °C
-
Connector Durability: ≥ 1,000 mating cycles
-
Color: Yellow (standard for single-mode fiber)
-
Includes test report and lifetime warranty
Installation and Use Case Example
This 3-meter duplex LC patch cable is ideal for connecting single-mode LC ports between switches, transceivers, or patch panels within the same rack or adjacent enclosures. An example use case would be linking a fiber uplink on a managed switch to a structured fiber patch panel in a telecom closet or data center rack. The bend-insensitive design is particularly useful when cable management space is limited, reducing the risk of signal loss due to sharp bends.
Ideal for Installers and Technicians
-
Perfect for professional installers and network technicians seeking reliable, standards-compliant fiber patching
-
Suitable for enterprise networks, ISPs, and structured cabling installations
-
Quick deployment in riser-rated indoor environments
-
Reduced risk of signal degradation due to tight radius routing
-
Compact jacket minimizes cable bulk in high-density setups
Tri-Tek Advantage
Tri-Tek Electronics, located in Mesa, Arizona, is an authorized Intellinet distributor. We offer full manufacturer warranty coverage, expert support, and the best value for fiber optic components in Phoenix, Mesa, Chandler, Tempe, Gilbert, Glendale, and Scottsdale. Our local inventory ensures fast availability for urgent installations and service calls.
