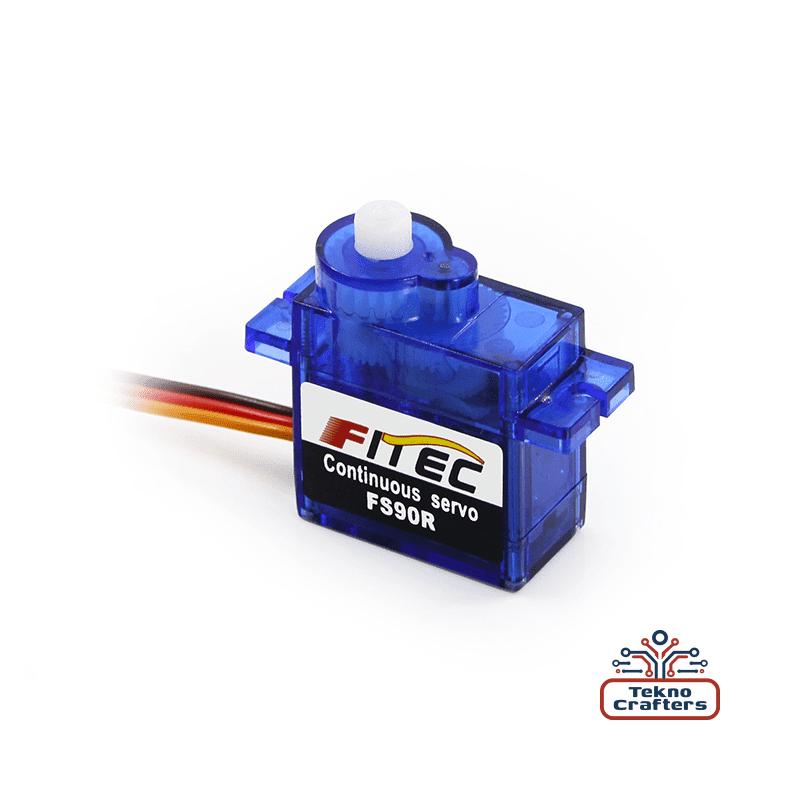

TeknoCrafters FA6030 FS90R Micro Servo - 360° Continuous Rotation Servo
The TeknoCrafters FA6030, also known as the FS90R Micro Servo, is a micro-sized servo motor engineered for continuous 360-degree rotation. Designed for applications requiring precise speed and direction control, this servo is ideal for robotics projects, especially for beginners.
Key Features:
-
Continuous Rotation: Unlike standard servos with limited range motion, the FS90R provides full 360-degree continuous rotation, making it suitable for driving wheels or tracks in robotic applications.
-
Compact and Lightweight: With dimensions of 22.5 × 12.1 × 23.4 mm and weighing just 9 grams, this micro servo is perfect for projects where space and weight are critical factors.
-
Wide Operating Voltage: Operates efficiently within a voltage range of 4.8V to 6V, providing flexibility for various power supply configurations.
Specifications:
| Parameter |
4.8V |
6V |
| Speed (no-load) |
100 RPM |
130 RPM |
| Stall Torque |
18 oz·in (1.3 kg·cm) |
21 oz·in (1.5 kg·cm) |
| No-load Current |
— |
130 mA |
| Stall Current |
— |
800 mA |
| Lead Length |
10 inches (250 mm) |
10 inches (250 mm) |
Control and Compatibility:
The FS90R interprets standard RC servo position pulses to regulate its rotation speed and direction. A 1.5 ms pulse width sets the servo at its rest point. Pulse widths exceeding 1.5 ms induce counterclockwise rotation, while those below 1.5 ms result in clockwise rotation. The speed increases proportionally with the deviation from the 1.5 ms pulse width. Additionally, the servo features a potentiometer adjustment, allowing users to fine-tune the middle point for precise control.
Included Accessories:
- Various servo horns for versatile connectivity.
- Mounting hardware to facilitate easy installation.
Installation Example:
In a typical robotics application, two FS90R servos can be mounted on either side of a lightweight chassis, each connected to a wheel. By adjusting the input pulse widths, users can control the speed and direction of each wheel independently, enabling the robot to move forward, backward, or execute turns with precision.
Value for Technicians and Installers:
The FS90R's straightforward control mechanism allows for direct connection to a microcontroller's I/O line without additional electronics, simplifying the design and reducing potential points of failure. Its compact size and continuous rotation capability make it a valuable component for small-scale robotic projects, educational kits, and other applications where space is limited, and precise motor control is essential.
Tri-Tek Electronics, as an authorized distributor of TeknoCrafters products, ensures that customers receive genuine FS90R Micro Servos with full manufacturer warranty coverage. We are committed to offering the best pricing and factory support to meet your project needs.
