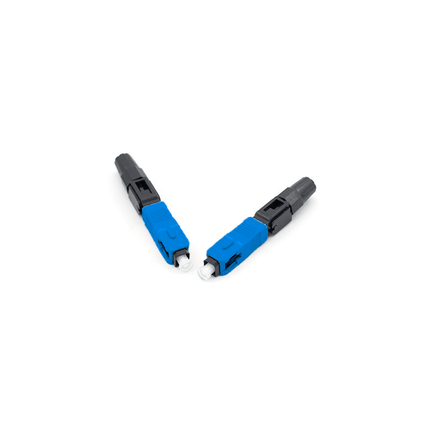

Vertical Cable 263-OSP03-10Z06 SC SM UPC Mechanical Fiber Connector, 900µm Buffered, 6-Pack
The Vertical Cable 263-OSP03-10Z06 SC Single Mode UPC Mechanical Fiber Connector is a professional field-installable solution designed for terminating 9/125µm single mode fiber quickly and reliably. Engineered for 900µm buffered fiber, this connector eliminates the need for epoxy and polishing, making it ideal for fast-paced fiber installations and service calls.
Tri-Tek Electronics is an authorized distributor of Vertical Cable products, ensuring full manufacturer warranty coverage, factory-direct support, and competitive pricing for contractors and fiber technicians throughout Phoenix, Mesa, Chandler, Tempe, Gilbert, Scottsdale, and Glendale, Arizona.
Product Overview
The 263-OSP03-10Z06 features an SC UPC (Ultra Physical Contact) polished interface optimized for single mode applications requiring low insertion loss and dependable signal transmission. Its mechanical splice design incorporates a factory pre-polished ferrule, enabling rapid field termination using standard fiber preparation and cleaving tools.
Packaged in a convenient 6-piece kit, this connector is well-suited for telecom rooms, FTTH deployments, enterprise backbone installations, and security system fiber links.
Key Features
• SC connector with UPC polish
• Single mode fiber compatibility (9/125µm)
• Designed for 900µm buffered fiber
• Mechanical splice termination – no epoxy required
• Factory pre-polished ferrule
• Low insertion loss performance
• Supplied in a 6-pack
Technical Specifications
Connector Type
SC UPC
Fiber Type
Single Mode, 9/125µm
Cable Compatibility
900µm Buffered Fiber
Polish Type
UPC (Ultra Physical Contact)
Termination Method
Mechanical splice
Packaging
6 connectors per package
Installation & Application Scenario
During a commercial buildout in Phoenix or a campus fiber upgrade in Mesa, technicians often need to terminate single mode fiber quickly inside patch panels or wall-mounted fiber enclosures. After stripping and precision cleaving the 900µm buffered fiber, the installer inserts the fiber into the mechanical connector body and secures the splice according to standard procedures.
Typical applications include:
• Enterprise backbone terminations
• ISP and telecom room installations
• Fiber-to-the-home (FTTH) service calls
• Surveillance and access control fiber links
• Inter-building fiber connections
The UPC polish is ideal for general single mode applications where low insertion loss and reliable signal transfer are required.
Benefits for Installers & Technicians
• Reduces labor time compared to epoxy-and-polish connectors
• Eliminates curing and polishing equipment
• Provides consistent single mode performance
• Ideal for both new construction and retrofit projects
• Convenient 6-pack for service vehicles and job sites
