Description

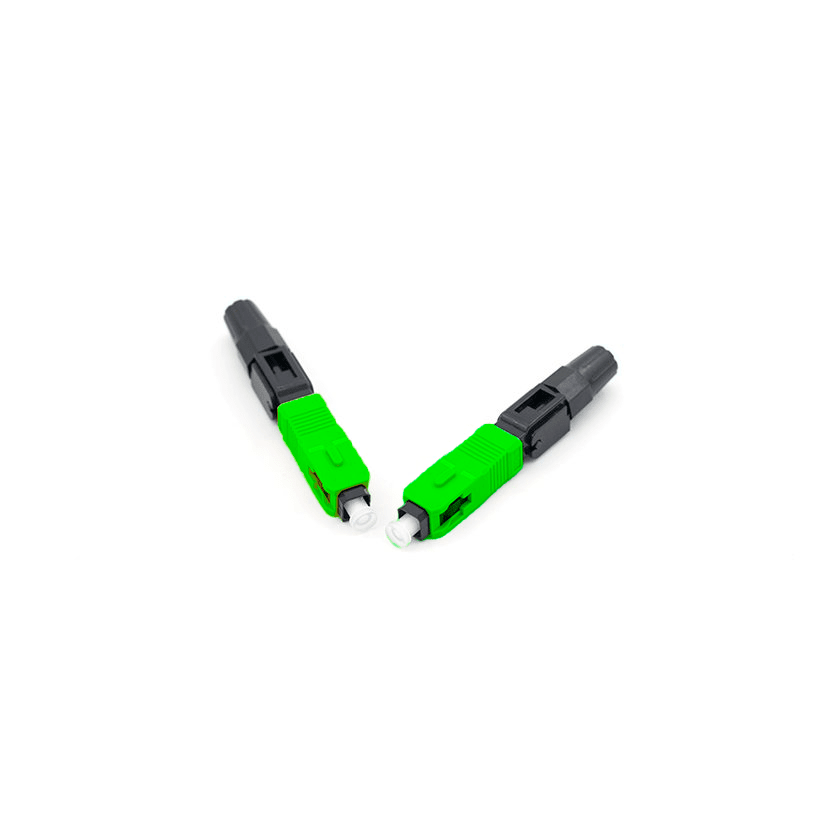

Vertical Cable 263-OSP03-10Y06 SC SM APC Mechanical Fiber Connector, 900µm Buffered, 6-Pack
The Vertical Cable 263-OSP03-10Y06 SC Single Mode APC Mechanical Fiber Connector is a professional field-installable termination solution designed for 9/125µm single mode fiber. Built for 900µm buffered fiber, this connector provides fast, reliable terminations without epoxy or polishing—making it ideal for contractors and fiber technicians working in demanding network environments.
Tri-Tek Electronics is an authorized distributor of Vertical Cable products, ensuring full manufacturer warranty coverage, factory support, and competitive pricing for installers throughout Phoenix, Mesa, Chandler, Tempe, Gilbert, Scottsdale, and Glendale, Arizona.
Product Overview
The 263-OSP03-10Y06 features an SC APC (Angled Physical Contact) interface, engineered for low back reflection and optimal performance in single mode fiber systems. Its mechanical splice design and factory pre-polished ferrule allow for rapid field termination using standard fiber prep and cleaving tools.
This 6-pack configuration is ideal for structured cabling installations, FTTH deployments, telecom rooms, and service calls requiring dependable single mode performance.
Key Features
• SC connector with APC polish (angled end face)
• Single mode fiber compatibility (9/125µm)
• Designed for 900µm buffered fiber
• Mechanical splice termination – no epoxy required
• Factory pre-polished ferrule
• Low back reflection performance
• Supplied in a 6-pack
Technical Specifications
Connector Type
SC APC
Fiber Type
Single Mode, 9/125µm
Cable Compatibility
900µm Buffered Fiber
Polish Type
APC (Angled Physical Contact)
Termination Method
Mechanical splice
Packaging
6 connectors per package
Installation & Application Scenario
For contractors performing FTTH installations or terminating single mode backbone fiber in a commercial building in Phoenix or Mesa, the 263-OSP03-10Y06 provides a quick and efficient solution. After properly stripping and precision cleaving the 900µm buffered fiber, the technician inserts the fiber into the connector body and secures the mechanical splice according to installation procedures.
This connector is ideal for:
• Fiber-to-the-home (FTTH) installations
• Telecom and ISP deployments
• Single mode backbone terminations
• Security and surveillance fiber links
• Enterprise and campus fiber infrastructure
The APC polish is especially beneficial in applications requiring reduced return loss, such as long-distance or high-bandwidth single mode systems.
Benefits for Installers & Technicians
• Eliminates epoxy curing and polishing time
• Reduces specialized tooling requirements
• Provides low-reflection performance for sensitive applications
• Ideal for fast service calls and new installations
• Convenient 6-pack for small projects and maintenance work
