Description

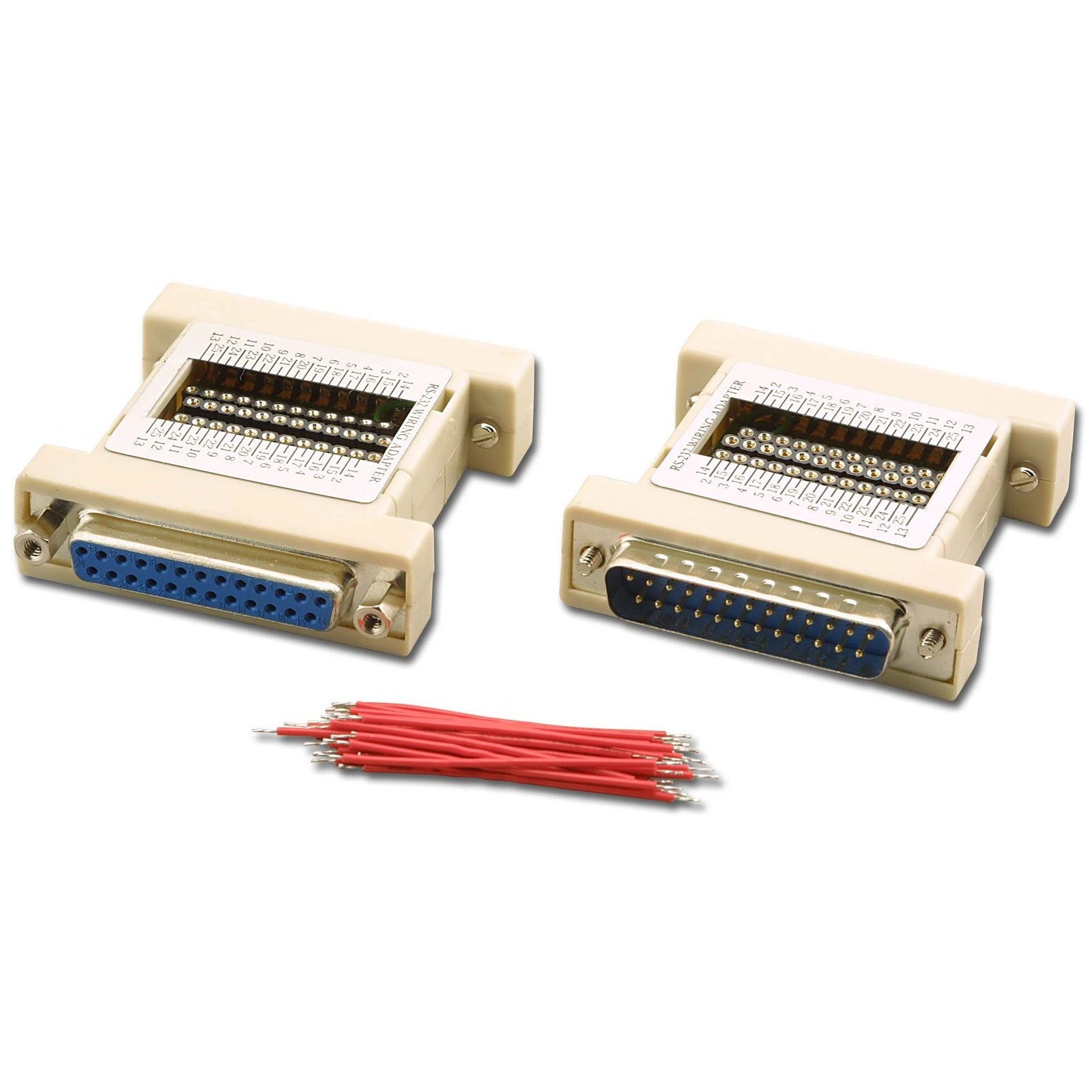

Pan Pacific AD-D25WA DB25 M/F RS232 Mini Wiring Adapter
The Pan Pacific AD-D25WA is a compact and versatile RS232 Mini Wiring Adapter designed for professional and industrial serial communication setups. This in-line adapter features a DB25 male to DB25 female interface, allowing for customizable RS232 signal wiring without the need for bulky cables or permanent modifications. It’s ideal for technicians, installers, and system integrators working with legacy or custom-configured serial communication equipment.
Tri-Tek Electronics is an authorized distributor of Pan Pacific products and guarantees full manufacturer warranty coverage, factory support, and the best local pricing. With a convenient retail location in Mesa, Arizona, Tri-Tek is a trusted supplier for Phoenix-area professionals in Tempe, Chandler, Scottsdale, Glendale, and Gilbert.
Key Features
-
DB25 Male to DB25 Female interface
-
Miniature housing—ideal for tight spaces or panel mount applications
-
Fully configurable pin assignments for custom RS232 wiring
-
Screw terminals for secure and fast reconfiguration
-
Designed for diagnostic, test bench, or field service applications
Specifications
| Specification |
Detail |
| Connector A |
DB25 Male |
| Connector B |
DB25 Female |
| Interface Standard |
RS232 |
| Form Factor |
Mini/Compact |
| Housing Dimensions |
Approximately 1" x 1" x 1" |
| Wiring Access |
Screw terminal block |
| Use Case |
Field installations, prototyping, repairs |
Example Use Case
A field technician working on a legacy CNC machine or older POS system can use the AD-D25WA to quickly reroute or monitor RS232 signals. The compact size makes it ideal for environments where space is limited, such as inside control panels or network equipment racks. It's an indispensable tool for any professional maintaining or testing RS232 serial connections.
Tri-Tek Electronics proudly serves Arizona's low voltage and communications professionals. Visit our Mesa, AZ showroom or contact our knowledgeable sales team for assistance with your RS232 interfacing needs.
