Description

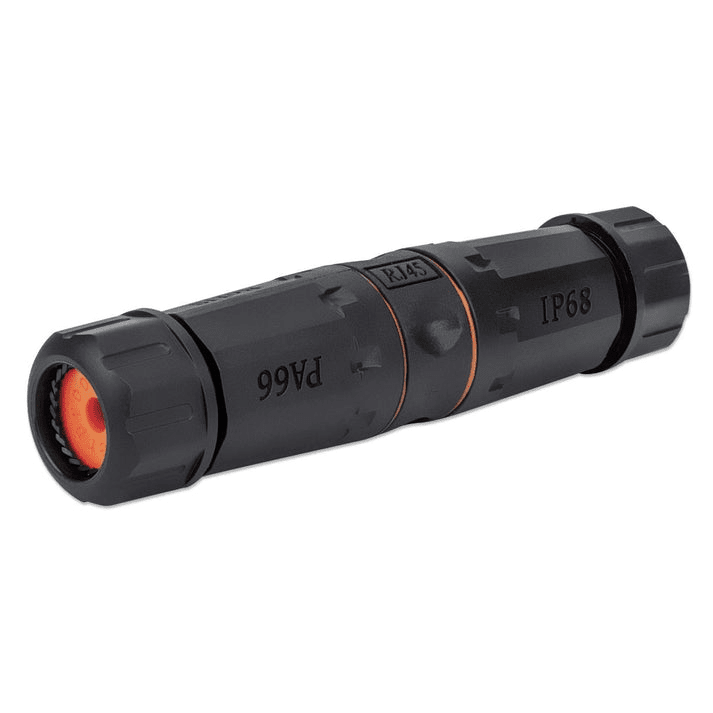

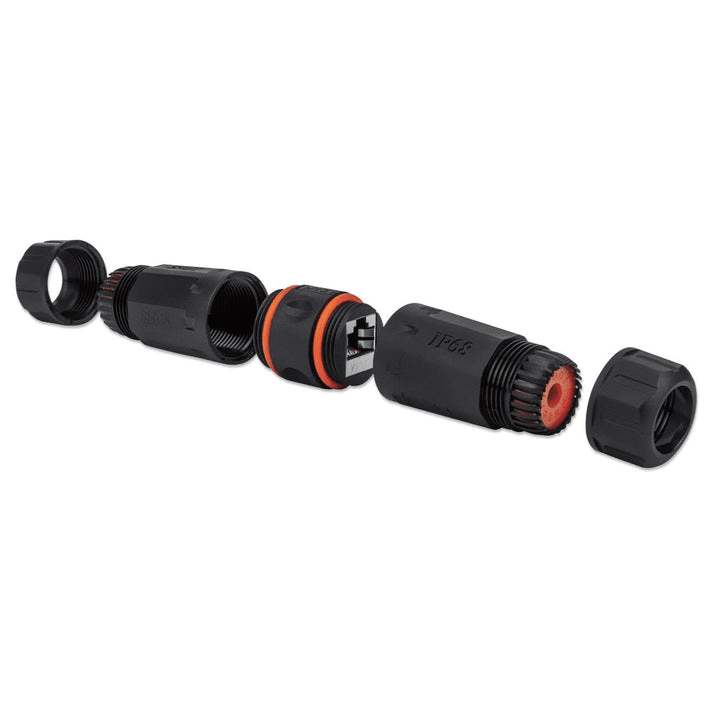

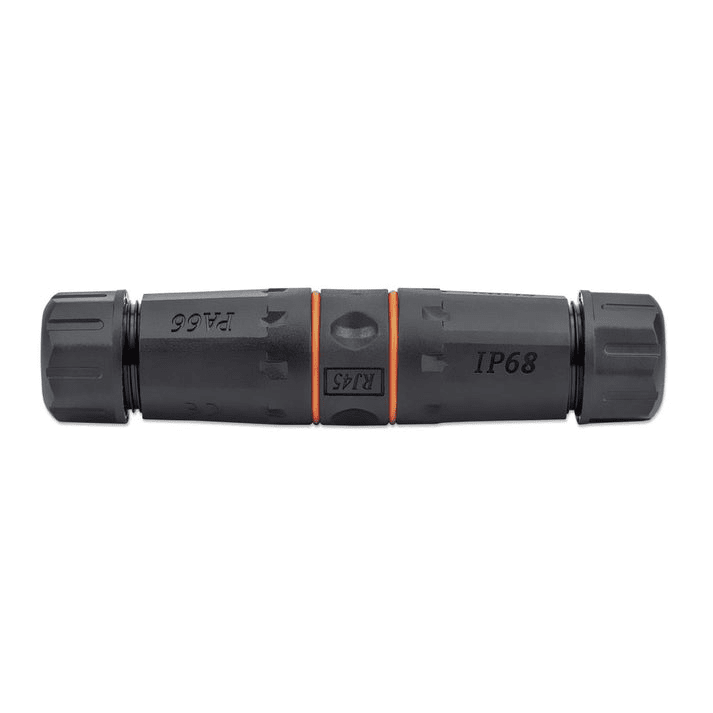

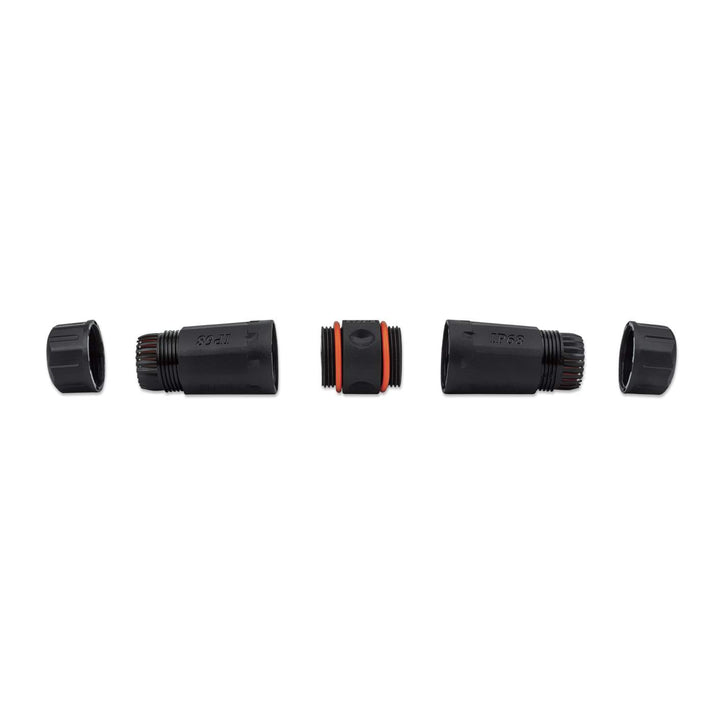

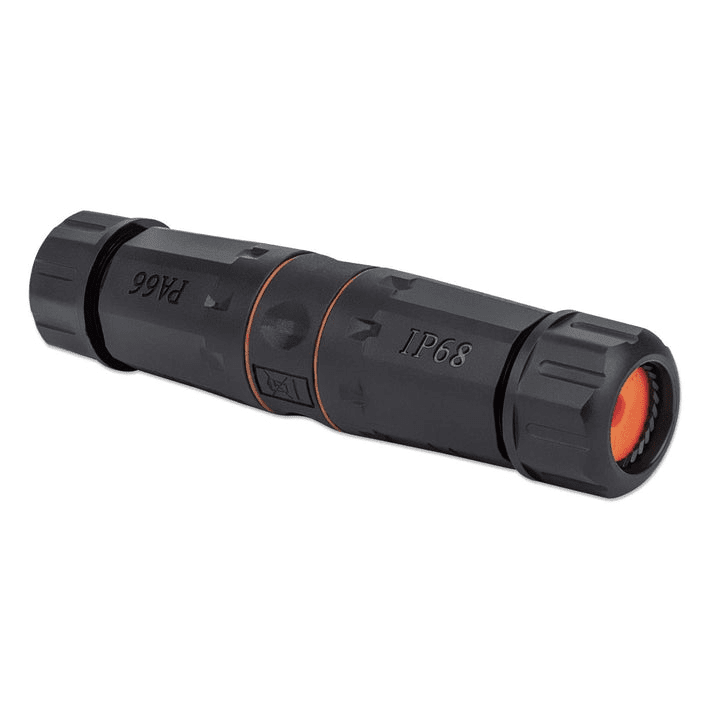

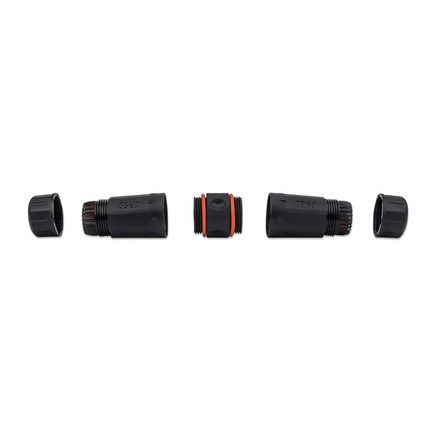

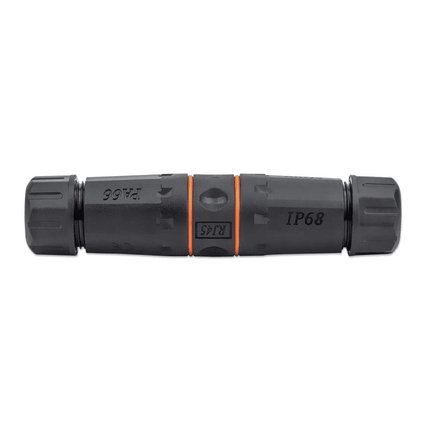

RJ45 Cat6a Waterproof Outdoor Modular Inline Coupler (Intellinet 791120)
Overview
A rugged, IP68-rated RJ45 in-line coupler designed to provide secure, dustproof, and waterproof extensions for shielded Ethernet patch cables, making it perfect for outdoor or industrial installations.
Features
-
Extends or connects shielded or unshielded RJ45 Cat5e/Cat6/Cat6A patch cables in exposed environments
-
IP68-rated: totally dustproof and waterproof
-
3-micron gold-plated contacts for superior signal integrity
-
Wide operating range: –20 °C to 70 °C (–4 °F to 158 °F)
-
Supports all PoE types (IEEE 802.3af/at/bt)
-
Accepts STP Cat6a cables with diameters from 5–7.5 mm (0.2–0.3 in)
-
Includes lifetime warranty
Specifications
| Specification |
Details |
| Standards |
Cat5, Cat5e, Cat6, Cat6a |
| Housing Material |
PA66 (rugged thermoplastic) |
| Contact Material |
Phosphor bronze, 3 µm gold-plated |
| Dimensions (L×W×H) |
122 × 28 × 28 mm (4.8″ × 1.1″ × 1.1″) |
| Weight |
49 g (1.73 oz) |
| Storage Temp. |
–40 °C to 85 °C (–40 °F to 185 °F) |
| Package Includes |

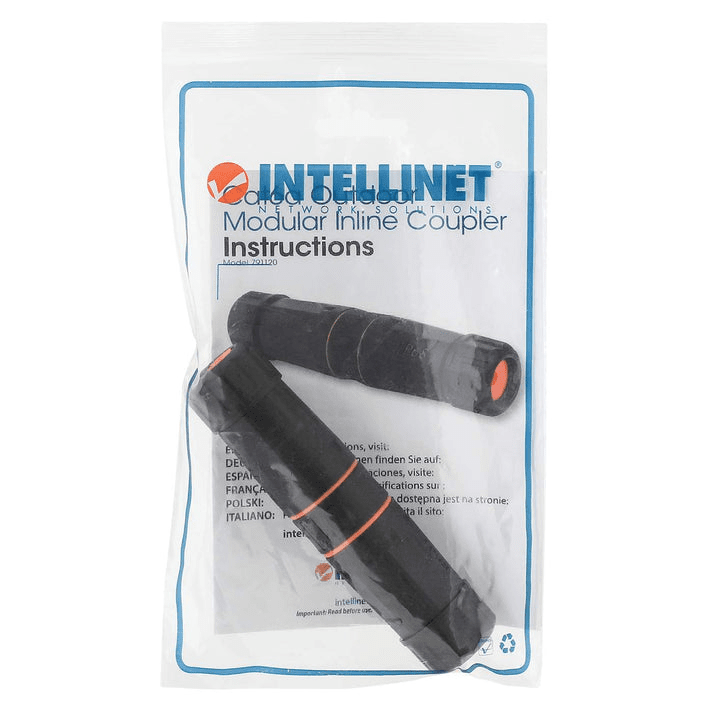

Coupler unit and Quick Installation Guide |
Example Installation Scenario
Ideal for outdoor PoE camera systems: Use the 791120 to bridge two shielded Cat6a patch cables feeding a security camera from a weatherproof NVR setup. Its IP68 rating ensures protection against rain, dust, and direct exposure, while PoE compatibility keeps the cable runs clean and efficient.
Why It Benefits Installers & Technicians
-
Peace of Mind in Harsh Environments: IP68 protection ensures reliable performance, even outdoors in the Arizona sun or dust-laden landscapes.
-
Maintains Network Integrity: Gold-plated contacts and STP compatibility keep data and PoE transmission free from interference.
-
Hassle-Free Support: Backed by a lifetime warranty and fully supports IEEE PoE standards.
Tri‑Tek Electronics is an authorized distributor of Intellinet products and proudly serves Mesa, AZ and the surrounding Phoenix area. We guarantee full manufacturer warranty coverage, the best pricing, and expert factory support. Visit our retail location in Mesa or contact us for local availability and technical assistance.
