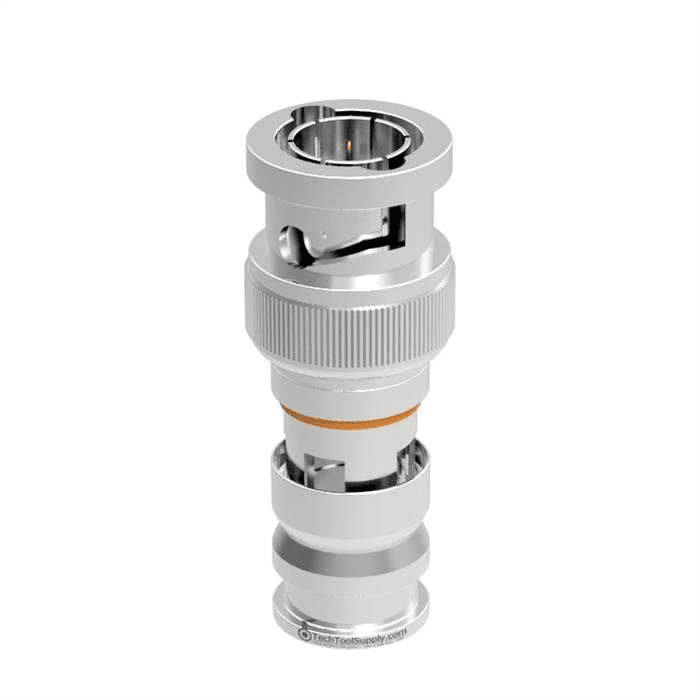

Holland BNC6Q‑MCV Super‑Fast MCV RG6Q BNC Compression Connector for RG6 Quad Shield Cable
The Holland BNC6Q‑MCV Super‑Fast MCV RG6Q BNC Compression Connector is engineered for high‑performance compression terminations on RG6 Quad Shield coaxial cable. This professional‑grade connector uses Holland’s patented MCV (Multiple Cable Version) design to make terminations faster and more consistent by eliminating the need to fold back the cable’s braided shielding. It’s ideal for CCTV, digital video distribution, and other AV installations where reliable signal integrity and durable connections matter.
Key Features
-
Designed for BNC male compression terminations on RG6 Quad Shield cable
-
MCV patented design — fits a range of quad shield cable diameters without folding braid back, speeding up install time
-
Easy insertion for quick field terminations
-
All‑metal construction optimized for demanding digital video applications
-
Patented viewing window and accommodates color‑coded application bands for identification
-
Rugged build for long‑lasting residential or commercial use
Specifications
-
Cable Type: RG6 Quad Shield coaxial cable
-
Connector Type: BNC male compression
-
Frequency Range: DC – 3,000 MHz
-
Return Loss: > ‑27 dB @ 1 GHz, > ‑21 dB @ 3 GHz
-
Insertion Loss: < 0.15 dB @ 1 GHz
-
Jacket O.D. Range: Approx. 6.6 – 7.4 mm (quad shield)
-
Typical Pull Force: ~70 lbs
Ideal Applications
-
Terminating quad shield RG6 coax for security cameras and CCTV systems
-
Professional AV and video distribution installations
-
Residential and commercial coaxial video cable connections
Installation Notes
The Super‑Fast MCV design significantly reduces termination time by allowing the installer to insert the cable directly without the traditional braid fold‑back step. This minimizes labor and improves consistency, especially on larger projects or tight install schedules.
