Vertical Cable 107‑1954BK6Q500 RG6 Quad Shield CCS Coaxial Cable – 500 ft Box
Tri‑Tek Electronics is proud to be an authorized distributor of Vertical Cable products, including the 107‑1954BK6Q500. We ensure full manufacturer warranty coverage, best pricing, and factory-level technical support. Our Mesa, AZ retail location provides easy pickup and expert assistance for Phoenix metro‑area installers.
Product Overview
Designed for professional-grade installations, this cable features quad shielding and 18 AWG copper‑clad steel (CCS) to deliver superior signal strength and resilience. It’s ideal for HDMI-quality HDTV, satellite, broadband, and CCTV applications.
Key Features
-

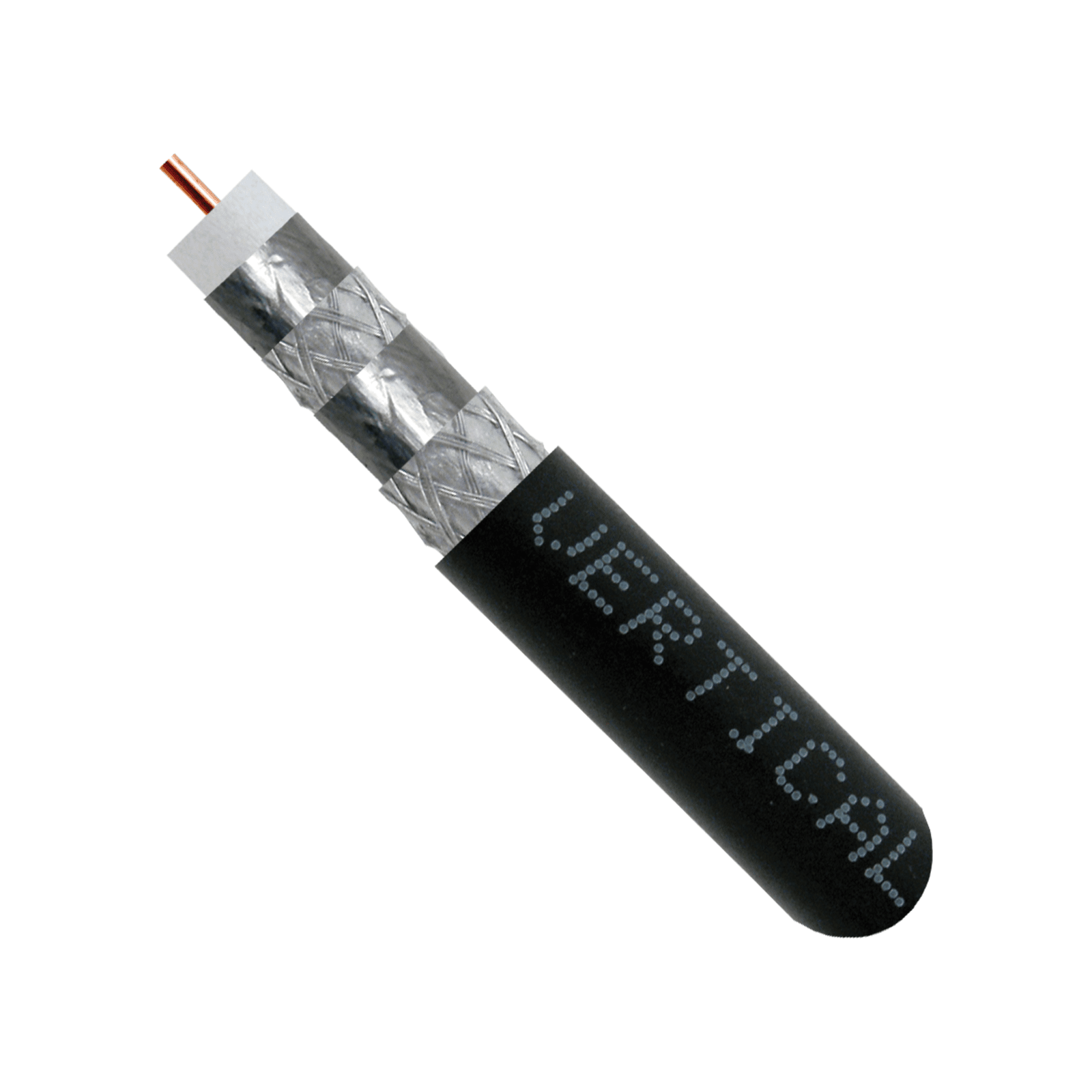

Quad Shielding: Double aluminum foil with dual braid layers (60% + 40%) to block EMI/RFI interference
-
18 AWG Solid Copper-Clad Steel Conductor: Delivers consistent performance across long distances
-
Sweep Tested to 3.0 GHz: Maintains signal integrity for HDTV, satellite, and broadband applications
-
CM/CL2-Rated Black PVC Jacket: Flame-retardant, UV and moisture-resistant for in-wall use
-
ETL Listed and RoHS Compliant: Meets key safety and environmental standards
Technical Specifications
-
Center Conductor: 18 AWG solid copper-clad steel (1.024 mm diameter)
-
Dielectric: Foam polyethylene, 4.57 mm diameter
-

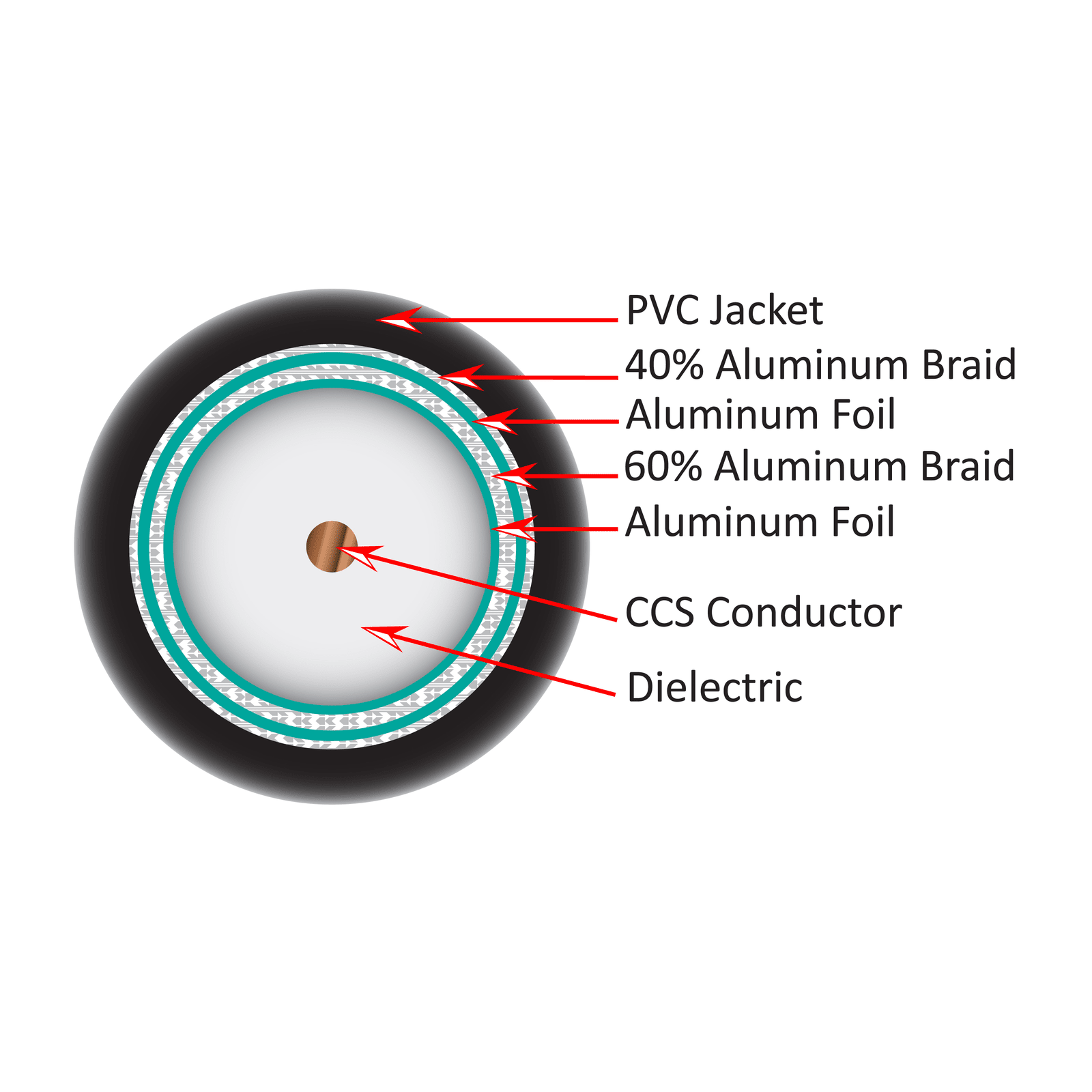

Shielding: Quad shield with dual foil and dual braid (60% + 40%)
-
Jacket: Black PVC, 7.6 mm diameter
-
Impedance: 75 ± 3 ohms
-
Capacitance: Approximately 52 ± 2 pF/m
-
DC Resistance: ≤120 ohms/km
-
Operating Temperature: -30°C to +75°C
-
Attenuation (at 100 ft): 0.58 dB @ 5 MHz, 3.24 dB @ 270 MHz
-
Return Loss: 20–25 dB up to 3 GHz
-
Cable Rating: CM/CL2 for in-wall installations
-

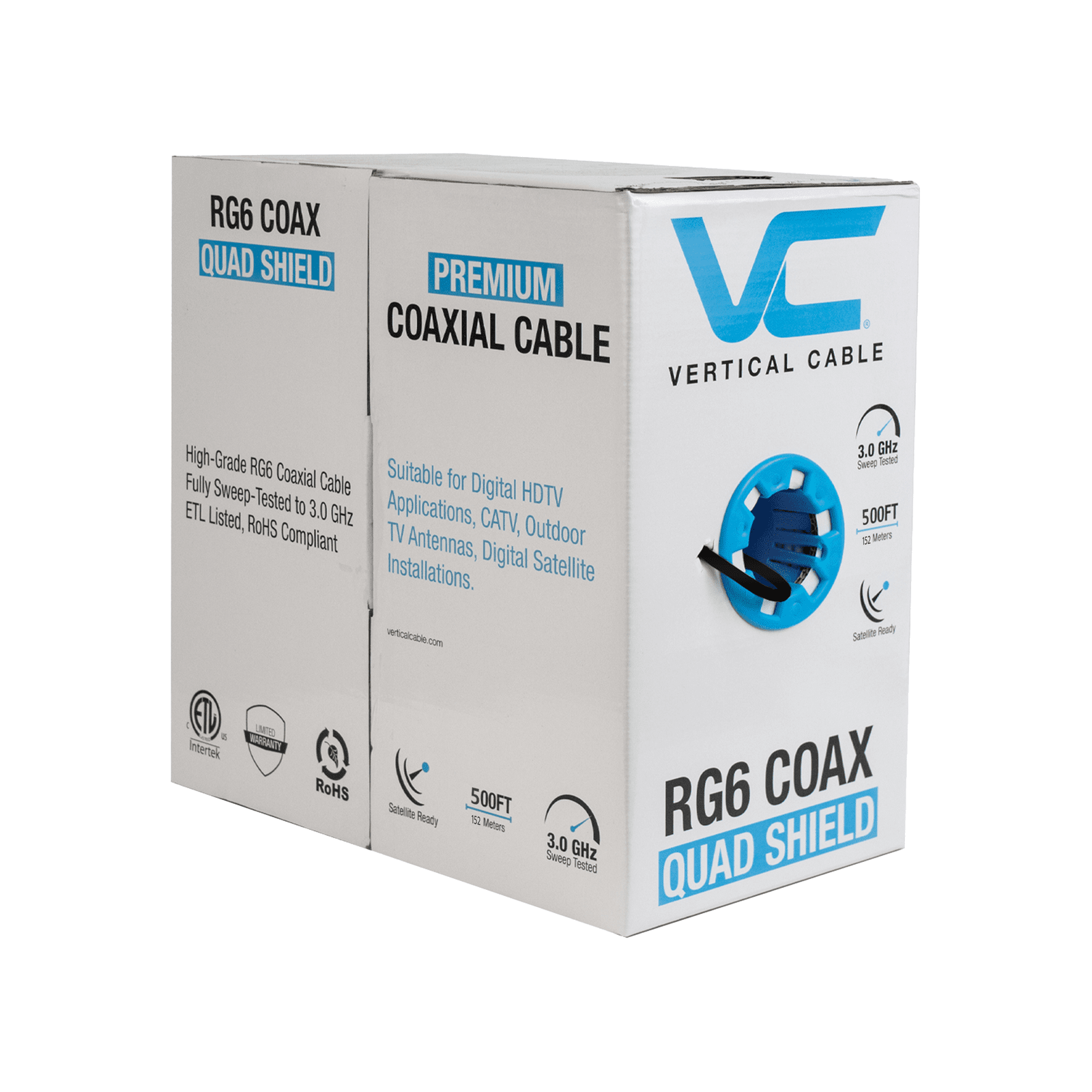

Packaging: 500 ft pull box
-
Warranty: 1-year manufacturer warranty
Applications
-
HDTV and satellite distribution in residential or commercial environments
-
Broadband internet and cable modem setups
-
CCTV and video surveillance installations
-
Multi-dwelling unit MATV/SMATV configurations
Recommended Installation Tools
Installers are encouraged to use quality compression or crimp connectors along with tools such as Jonard Tools COAXKIT‑2 or Eclipse Tools 1800 for reliable terminations.
Installation Scenario
Home Theater Integration: An AV technician routing cable from a centralized media closet to multiple rooms will appreciate the quad shield’s resistance to interference, particularly in high-EMI environments such as attics or near electrical systems.
Why Choose This Cable?
-
High shielding performance minimizes interference
-
Fully compliant with in-wall and safety codes
-
Trusted quality from Vertical Cable with support from Tri‑Tek Electronics
-
Durable packaging and construction ideal for installers
Available from Tri‑Tek Electronics
Available now at Tri‑Tek Electronics in Mesa, AZ. We serve professional installers, hobbyists, and technicians throughout Phoenix, Chandler, Gilbert, Tempe, Scottsdale, and Glendale. Benefit from our expert support and manufacturer-direct reliability.
