Vertical Cable 047-WHS-1260 12U Wall Mount Swing-Out Enclosure – 24" Depth
The Vertical Cable 047-WHS-1260 is a robust 12U wall-mount swing-out enclosure designed to provide secure, space-efficient housing for network, AV, and security equipment. Its 24" depth and swing-out rear access make it ideal for installations requiring both compactness and accessibility.
Key Features
-
12U Rack Capacity: Accommodates standard 19" rack-mount equipment.
-

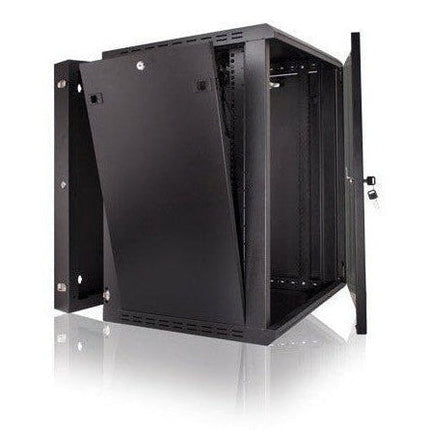

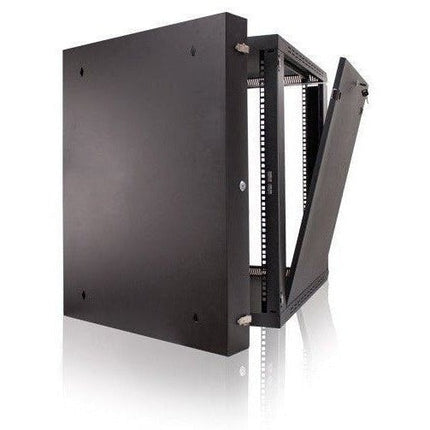

Swing-Out Rear Access: Non-reversible rear hinge allows easy access to the back of mounted devices, simplifying maintenance and cable management.
-

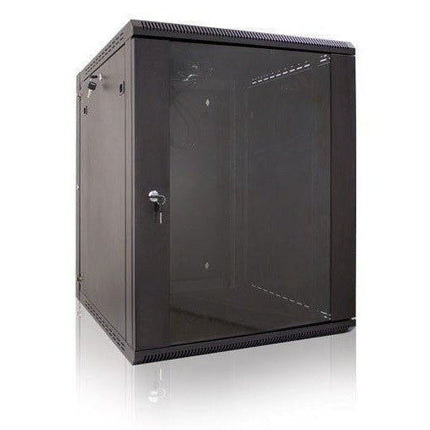

Lockable Panels: Front and side doors are lockable, enhancing security for sensitive equipment.
-
Ventilation: Top and side panels are vented to promote airflow and prevent overheating.
-

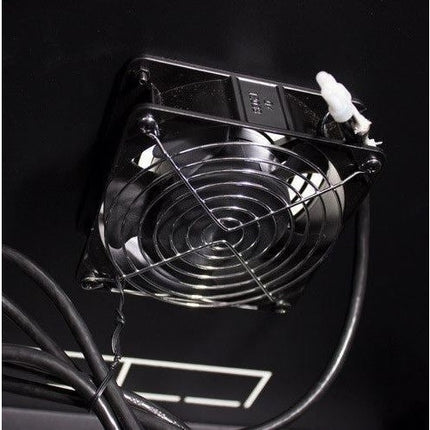

Cooling Fan Included: Built-in cooling fan with power supply maintains optimal operating temperatures.
-

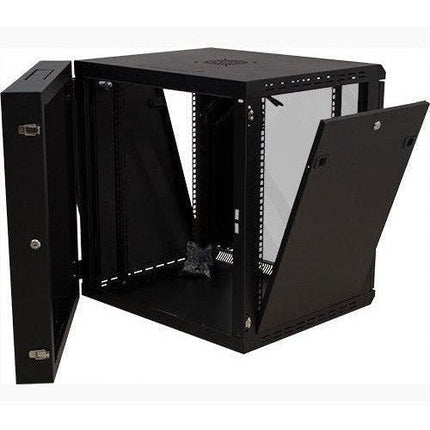

Removable Panels: Front door and side panels are easily removable for convenient equipment installation and maintenance.
-
Durable Construction: Black powder-coated steel provides a professional appearance and long-lasting durability.
-
Pre-Assembled: Ships fully assembled with 20 sets of cage nuts, screws, and washers for quick installation.
Specifications
| Specification |
Detail |
| Height |
25 inches |
| Width |
24 inches |
| Depth |
24 inches |

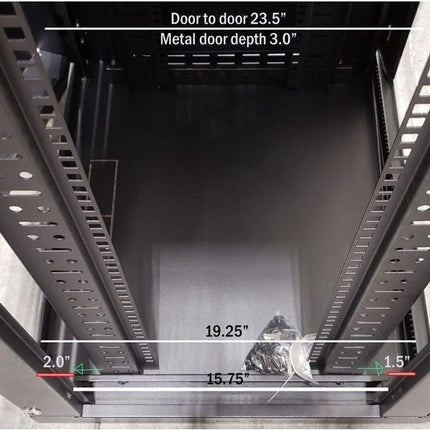

| Usable Depth |
15.75 inches |
| Color |
Black |
| Weight |
68 lbs |
| Load Capacity |
132 lbs |
Installation Scenario
Ideal for small to medium-sized network installations, the 047-WHS-1260 is perfect for environments where floor space is limited. Its wall-mount design is suitable for telecommunications closets, security system setups, and AV control rooms. The swing-out feature allows technicians to access rear connections without dismounting the enclosure, streamlining maintenance tasks.
