12U Economy Swing-Out Network Enclosure

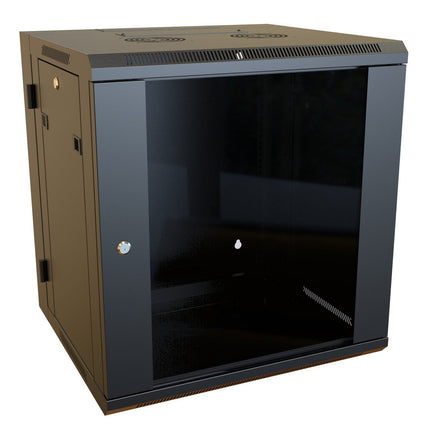

Hammond Mfg RB-SW12, 12U Economy Swing-Out Wall Rack

The Hammond RB-SW Series is a wall-mount network enclosure designed for light-duty use. Key features include a double-hinged design for easy rear access, construction in 16-gauge steel, adjustable EIA compliant rails, and a locking tempered glass front door. It also has removable side panels, venting for airflow, and cable access points. The enclosure is tested for a 130 lbs equipment load capacity, finished in black powder paint, and meets PCI DSS compliance requirements.

  • Rack Units: 12U
  • Overall Dimensions: 25.15"H x 23.62"W x 21.65"D
  • Mounting Dimensions: 21.00"H x 19.00"W x 16.13"D
  • Double-hinged for easy rear access (body swings open to 120°).
  • Constructed in light-duty 16-gauge steel.
  • Includes two (2) pairs of EIA compliant square hole punched rails with 19” mounting.
    • Starter pack of (25) M6 screws and cage nuts included.
    • For 10-32 hardware, see our CAGKIT Series.
  • Rails are adjustable.
  • Includes one (1) locking lightly smoked tempered glass reversible front door (hinged on the right side as standard).
  • Includes one (1) pair of locking removable side panels.
  • The front and side of the frame include venting for airflow.
  • Top, bottom and rear cable access.
  • Provision for optional fans on the top panel.
  • The middle body section is not reversible and hinges on the left side.
  • Ships assembled - ready to install.
  • Meets PCI DSS (Payment Card Industry Data Security Standard) compliance requirements.
  • Finished in black powder paint.
  • Tested to 130 lbs (59 kg) of equipment load capacity.
  • RoHS Compliant.

Tri-Tek Electronics is an authorized distributor of Hammond products. Purchasing the RB-SW12 through Tri-Tek Electronics ensures full manufacturer warranty coverage, competitive pricing, and factory support.

Product form

Hammond Mfg RB-SW12, 12U Economy Swing-Out Wall Rack    The Hammond RB-SW Series is a wall-mount network enclosure designed for... Read more

Free local pickup in our store

SKU: HAMRB-SW12
UPC: 244.19

Pre-order Now

$399.98 $359.99

  •  Restock is coming soon!

Hammond Mfg RB-SW12, 12U Economy Swing-Out Wall Rack

The Hammond RB-SW Series is a wall-mount network enclosure designed for light-duty use. Key features include a double-hinged design for easy rear access, construction in 16-gauge steel, adjustable EIA compliant rails, and a locking tempered glass front door. It also has removable side panels, venting for airflow, and cable access points. The enclosure is tested for a 130 lbs equipment load capacity, finished in black powder paint, and meets PCI DSS compliance requirements.

  • Rack Units: 12U
  • Overall Dimensions: 25.15"H x 23.62"W x 21.65"D
  • Mounting Dimensions: 21.00"H x 19.00"W x 16.13"D
  • Double-hinged for easy rear access (body swings open to 120°).
  • Constructed in light-duty 16-gauge steel.
  • Includes two (2) pairs of EIA compliant square hole punched rails with 19” mounting.
    • Starter pack of (25) M6 screws and cage nuts included.
    • For 10-32 hardware, see our CAGKIT Series.
  • Rails are adjustable.
  • Includes one (1) locking lightly smoked tempered glass reversible front door (hinged on the right side as standard).
  • Includes one (1) pair of locking removable side panels.
  • The front and side of the frame include venting for airflow.
  • Top, bottom and rear cable access.
  • Provision for optional fans on the top panel.
  • The middle body section is not reversible and hinges on the left side.
  • Ships assembled - ready to install.
  • Meets PCI DSS (Payment Card Industry Data Security Standard) compliance requirements.
  • Finished in black powder paint.
  • Tested to 130 lbs (59 kg) of equipment load capacity.
  • RoHS Compliant.

Tri-Tek Electronics is an authorized distributor of Hammond products. Purchasing the RB-SW12 through Tri-Tek Electronics ensures full manufacturer warranty coverage, competitive pricing, and factory support.
