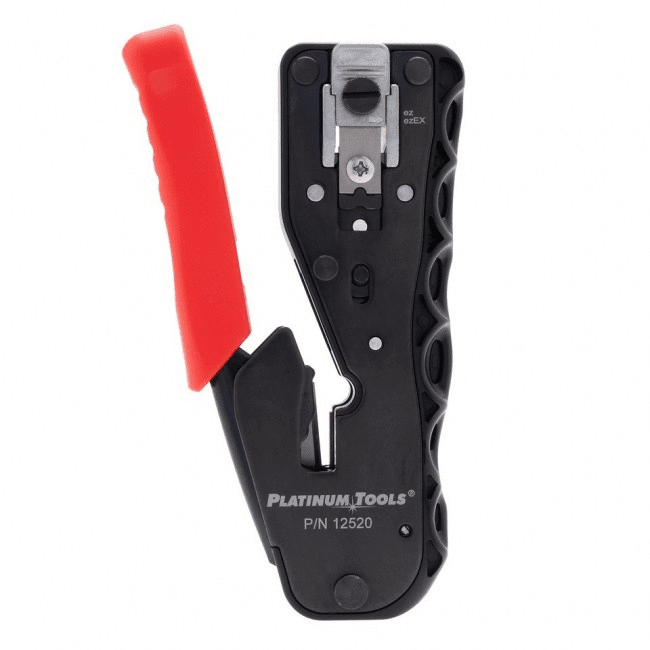

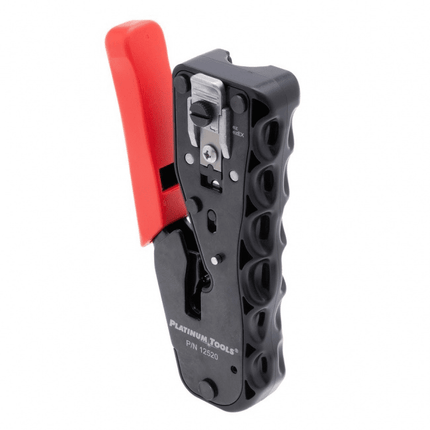

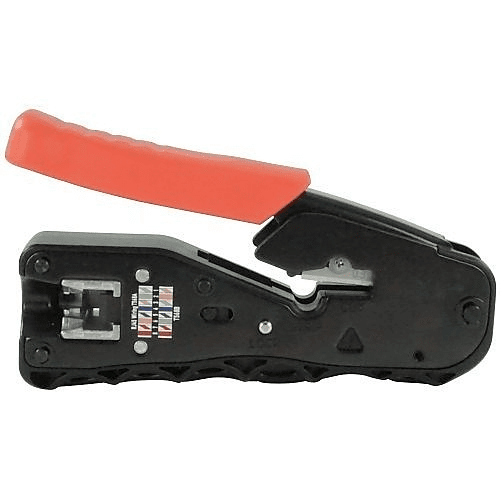

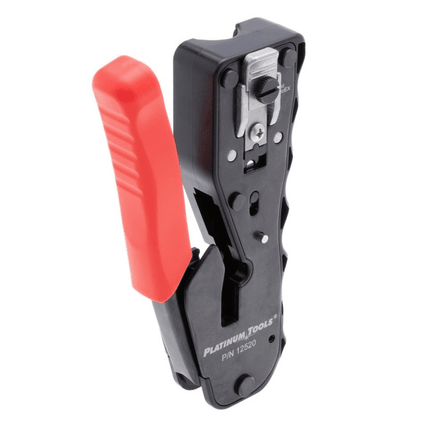

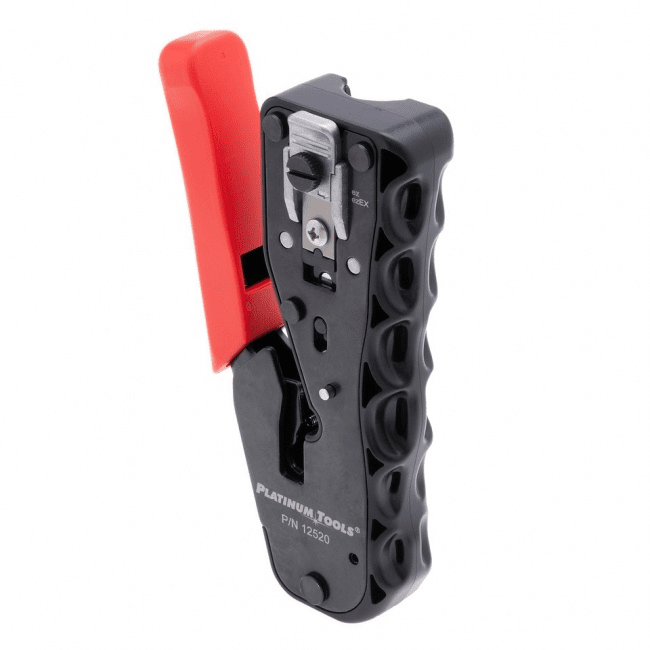

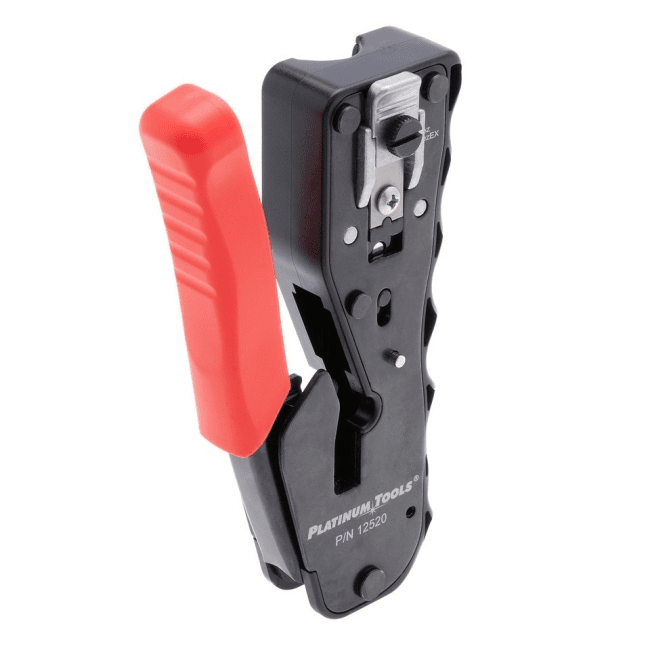

Platinum Tools 12520C PTS Pro Crimp Tool for ezEX & EZ-RJ45 Modular Plugs
The Platinum Tools 12520C PTS Pro Crimp Tool is a professional-grade termination solution designed for both ezEX and standard EZ-RJ45 modular plugs. Built for structured cabling professionals, security installers, and low voltage technicians, this tool delivers clean, consistent terminations for Category-rated twisted pair cable in demanding commercial and residential environments.
Tri-Tek Electronics is an authorized distributor of Platinum Tools, providing full manufacturer warranty coverage, factory support, and competitive pricing. Contractors across Phoenix, Mesa, Chandler, Tempe, Gilbert, Scottsdale, and Glendale rely on our Mesa, AZ retail location for professional-grade networking tools and structured cabling supplies.
Product Overview
The 12520C PTS Pro Crimp Tool is engineered to terminate both ezEX pass-through and standard EZ-RJ45 connectors with precision. Its integrated flush-cutting system trims conductors during the crimp cycle, reducing errors and ensuring repeatable, professional results.
This tool is ideal for:
-
Structured cabling installations
-
CAT5e, CAT6, CAT6A data networks
-
IP security camera systems
-
VoIP phone deployments
-
Patch panel builds
-
Custom Ethernet cable fabrication
ezEX Modular Plug Application
The ezEX system is specifically designed for larger diameter cables and thicker conductors, commonly found in:
These cable types often have thicker insulation and larger conductor diameters that require a connector and crimp tool capable of properly seating and trimming the conductors. The 12520C ensures proper flush trimming during termination, producing clean results even with heavier gauge cable constructions.
Standard Plug Compatibility
In addition to ezEX connectors, the 12520C also supports:
This dual compatibility makes it a versatile tool for technicians handling mixed installations in commercial offices, residential retrofits, and security system upgrades throughout the Phoenix metro area.
Key Features
-
Compatible with ezEX modular plugs for thicker conductor cable (CAT6A & direct burial)
-
Compatible with standard EZ-RJ45 modular plugs
-
Integrated flush cutter trims conductors during crimp cycle
-
Precision cast crimping die
-
Ratcheted mechanism ensures full crimp cycle completion
-
Built-in cable cutter
-
Integrated jacket stripping capability
-
Ergonomic, non-slip comfort grip handles
-
Designed for professional field use
Specifications
Tool Type: Modular plug crimp tool
Crimping Capability: ezEX and EZ-RJ45 pass-through connectors
Supported Cable Types: Solid and stranded conductor cable
Application Focus: Standard and large-diameter Category cable
Frame Construction: Precision cast frame
Handle Design: Ergonomic, non-slip grip
Integrated Functions: Crimping, cutting, stripping
Installation & Usage Example
When terminating CAT6A direct burial cable for an outdoor IP camera system in Gilbert, a technician can use ezEX modular plugs to accommodate the thicker conductors. After arranging conductors in T568B configuration, the wires are passed through the connector and inserted into the 12520C tool. During the crimp cycle, the tool simultaneously terminates the plug and trims excess conductor flush to the face of the connector.
For indoor office installations in Mesa or Tempe using standard CAT6 cable, the same tool seamlessly handles EZ-RJ45 connectors, allowing contractors to standardize on one professional crimping solution.
This reduces tool redundancy and increases efficiency on job sites across Arizona.
Why Buy From Tri-Tek Electronics?
Tri-Tek Electronics is an authorized distributor of Platinum Tools, ensuring:
-
Full manufacturer warranty coverage
-
Factory-direct support
-
Competitive contractor pricing
-
Local inventory availability
-
Retail location in Mesa, AZ
We proudly support structured cabling installers, low voltage contractors, and IT professionals throughout Phoenix, Chandler, Scottsdale, Glendale, and surrounding Arizona communities.
The Platinum Tools 12520C PTS Pro Crimp Tool is a reliable, professional-grade solution for consistent, high-performance Ethernet terminations.
