Description

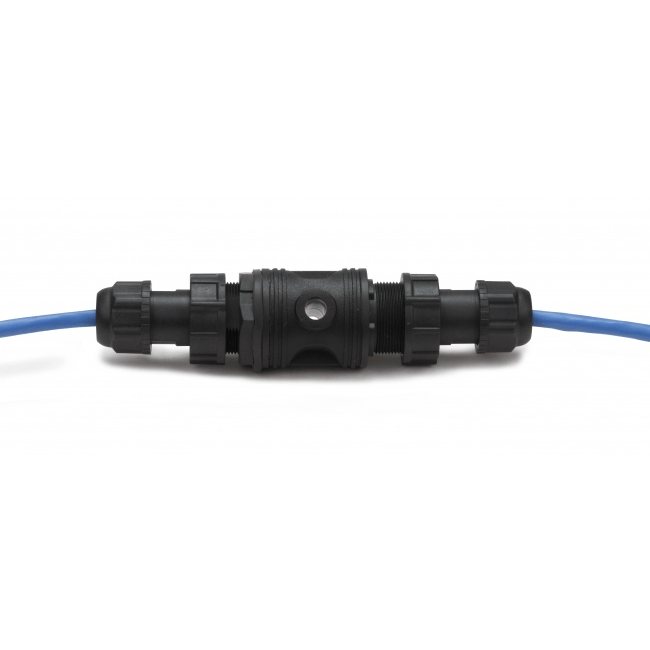

Platinum Tools 740C Waterproof RJ45 Splice Coupler
The Platinum Tools 740C Waterproof RJ45 Splice Coupler is engineered to provide robust, reliable Ethernet connections in environments exposed to water, dust, vibration, and other challenging conditions. With its IP67 rating, this coupler ensures secure and durable connections for both indoor and outdoor installations.
Key Features
-
IP67 Rated: Offers complete protection against dust ingress and immersion in water up to 1 meter for 30 minutes
-
Durable Construction: Made from black nylon housing with gold-plated copper alloy contacts for corrosion resistance and optimal conductivity
-
Compatibility: Supports RJ45 (8P8C) connectors for both UTP and STP applications, compatible with Cat5e and Cat6 cables
-
Secure Connection: Features a screw mating system to ensure a tight and secure connection resistant to shock and vibration
-
Compact Design: Measures 5.0" in length and 1.125" in width, weighing approximately 2.24 oz
Technical Specifications
| Specification |
Details |
| Connector Type |
RJ45 (8P8C) |
| Compatibility |
Cat5e and Cat6, UTP and STP |
| Housing Material |
Black Nylon |
| Contact Material |
Gold-Plated Copper Alloy |
| IP Rating |
IP67 |
| Dimensions |
5.0" x 1.125" |
| Weight |
2.24 oz |
| Operating Temperature |
-20°C to +80°C |
| Cycle Life |
1,000 insertions |
| Voltage Rating |
48V |
| Current Rating |
1 Amp |
Applications
Ideal for use in:
Installation Scenario
Consider a scenario where an outdoor security camera system requires Ethernet connectivity. Using the Platinum Tools 740C coupler, installers can ensure a waterproof and dustproof connection between Ethernet cables, safeguarding the network integrity against environmental factors. This is particularly beneficial in areas like Mesa, Arizona, where dust and temperature variations are common.
Tri-Tek Electronics, located in Mesa, AZ, is an authorized distributor of Platinum Tools products. Purchasing from Tri-Tek ensures full manufacturer warranty coverage, competitive pricing, and factory support. Whether you're an installer, hobbyist, or technician, the 740C coupler offers a reliable solution for maintaining network connections in challenging environments.
