Description

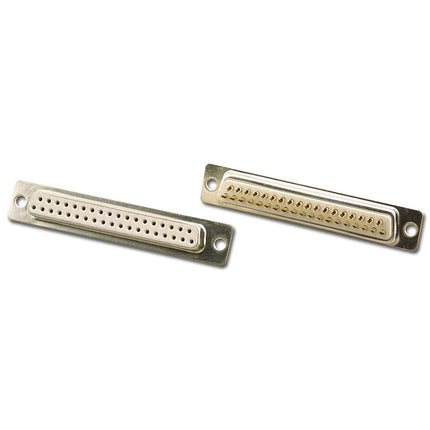

Pan Pacific DS-37S/T-P 37-Pin Female D-Sub Connector – Solder Cup, Tin Shell
The Pan Pacific DS-37S/T-P is a full-size DB-37 female connector designed for reliable point-to-point wiring in control systems, test equipment, and data-acquisition racks. Sturdy tin-plated steel shells shield sensitive signals, while precision solder-cup contacts provide secure terminations for discrete leads or custom cable assemblies. Tri-Tek Electronics in Mesa, AZ is an authorized Pan Pacific distributor, offering factory-fresh connectors with complete manufacturer warranty, competitive local pricing, and responsive Phoenix-area support.
Key Features & Benefits
-
Standard DB-37 female layout with 37 solder-cup contacts for easy hand-solder termination
-
Tin-plated steel shell delivers rugged mechanical protection and 360° EMI/RFI shielding
-
High-temperature glass-filled PBT insulator resists flux and reflow heat during assembly
-
Copper-alloy contacts with overall tin plating ensure low contact resistance and excellent solder wicking
-
Threaded 4-40 jack-screws included for secure panel or cable-mount mating
-
Rated 3 A per contact, 300 V RMS, operating range –55 °C to +105 °C
-
RoHS-compliant materials meet modern environmental directives
Example Installation Scenario
A Mesa-based machine-builder is wiring a PLC breakout panel that requires multiple discrete I/O signals to exit through one shielded cable. By soldering individual 22-AWG leads to the DS-37S/T-P’s cups and anchoring the connector to a bulkhead cut-out, the technician creates a serviceable, EMI-tight interface that mates directly with the customer’s existing DB-37 harness—saving time and ensuring plug-and-play compatibility on the factory floor.
Value for Installers, Hobbyists, and Technicians
-
Control-panel builders achieve neat, high-density terminations without specialized crimp tooling
-
Electronics hobbyists assemble custom breakout boxes for vintage computer or audio gear
-
Field service techs keep spares on hand to replace damaged connectors during on-site repairs
Why Buy from Tri-Tek Electronics
Tri-Tek Electronics stocks the DS-37S/T-P for same-day will-call or rapid shipment throughout Phoenix, Chandler, Gilbert, Tempe, Scottsdale, and Glendale. Every connector is backed by Pan Pacific’s warranty and supported by our in-house applications team to guarantee the right fit for your project.
