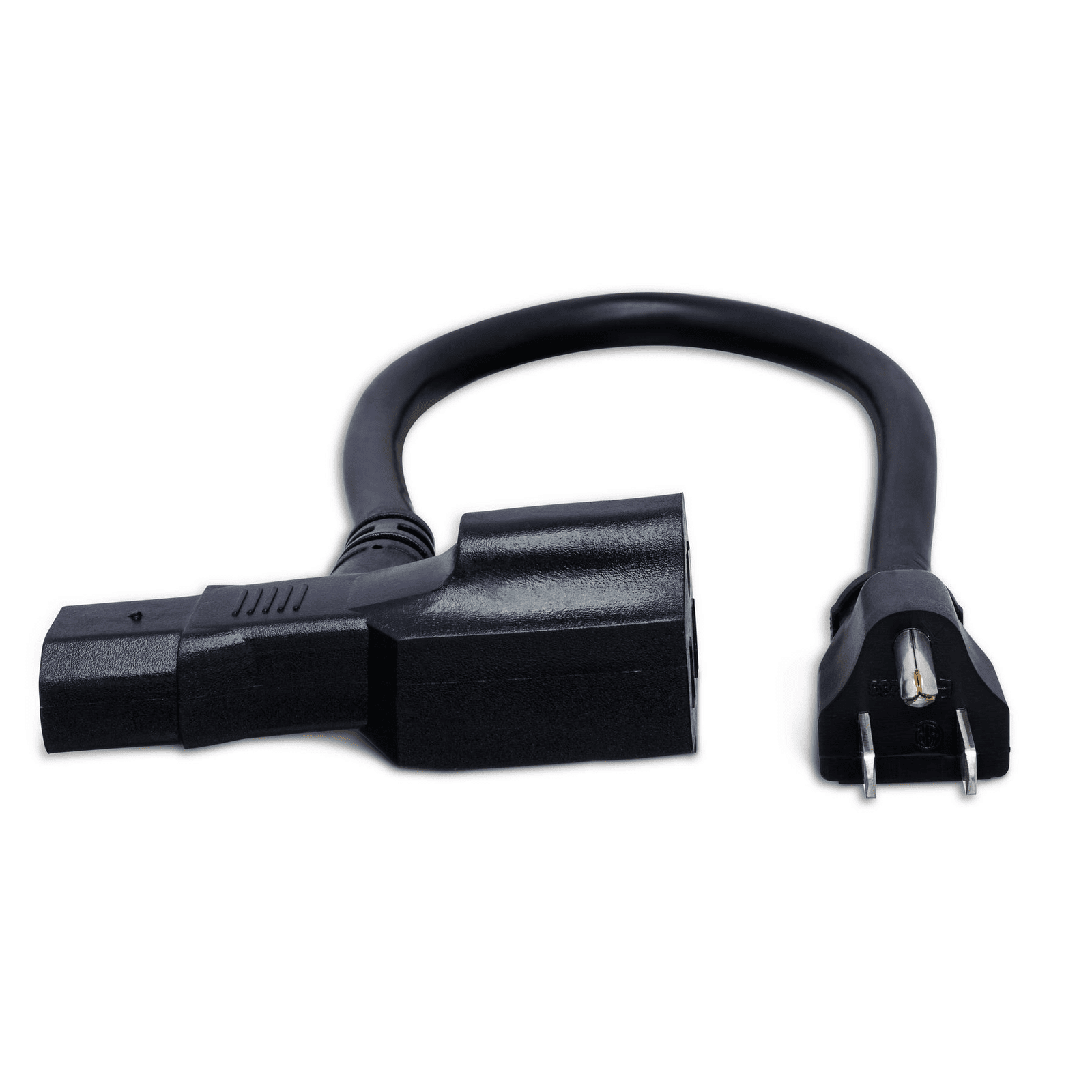

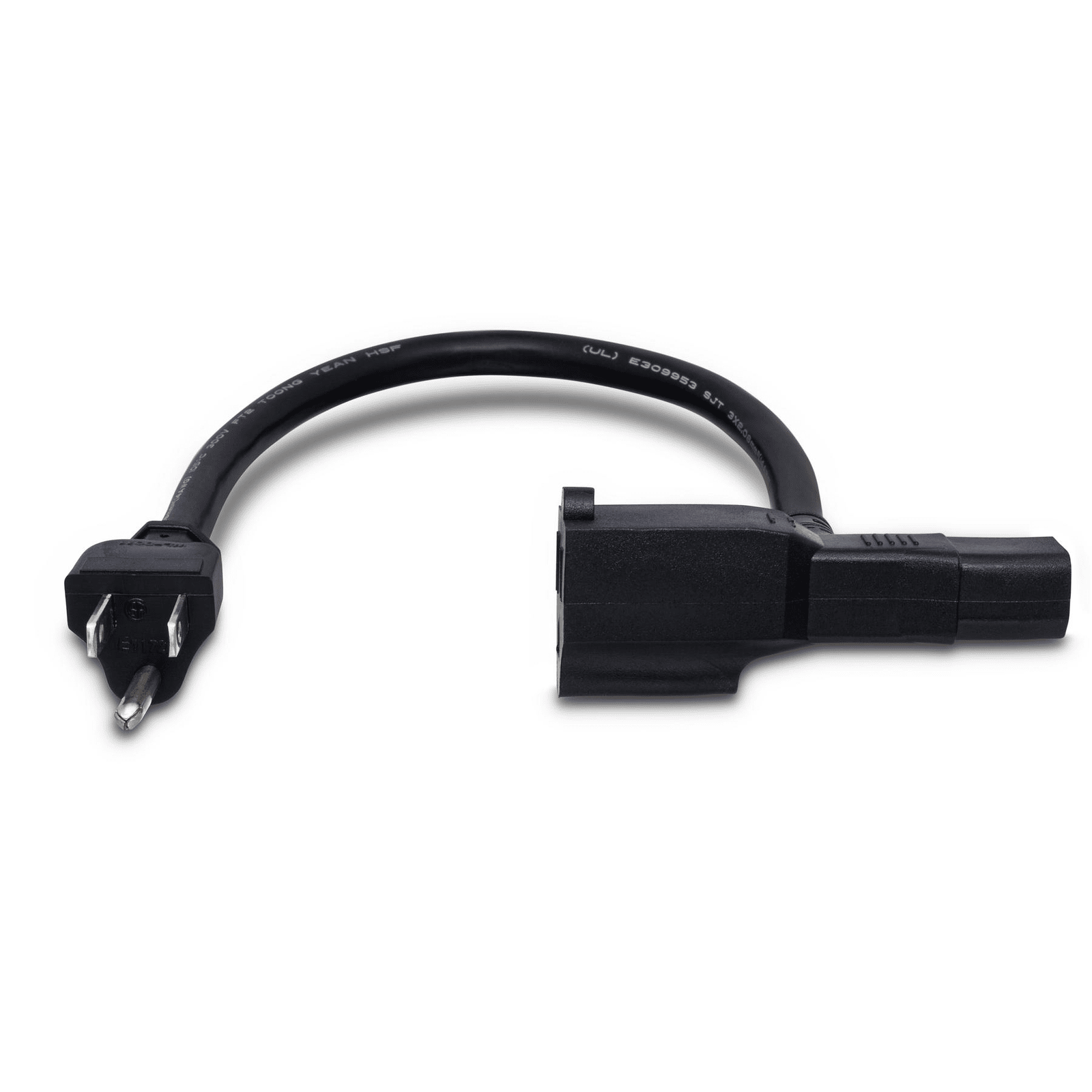

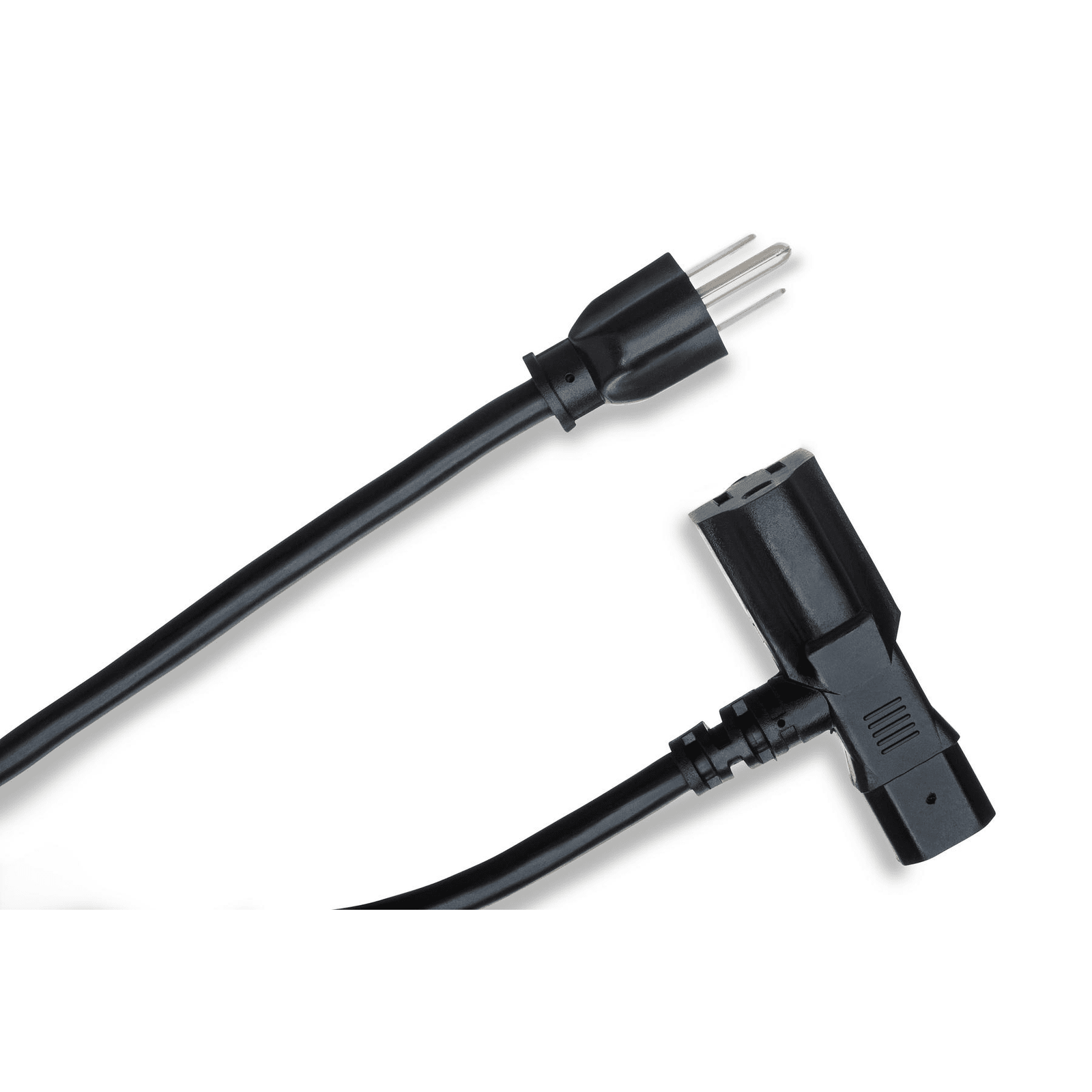

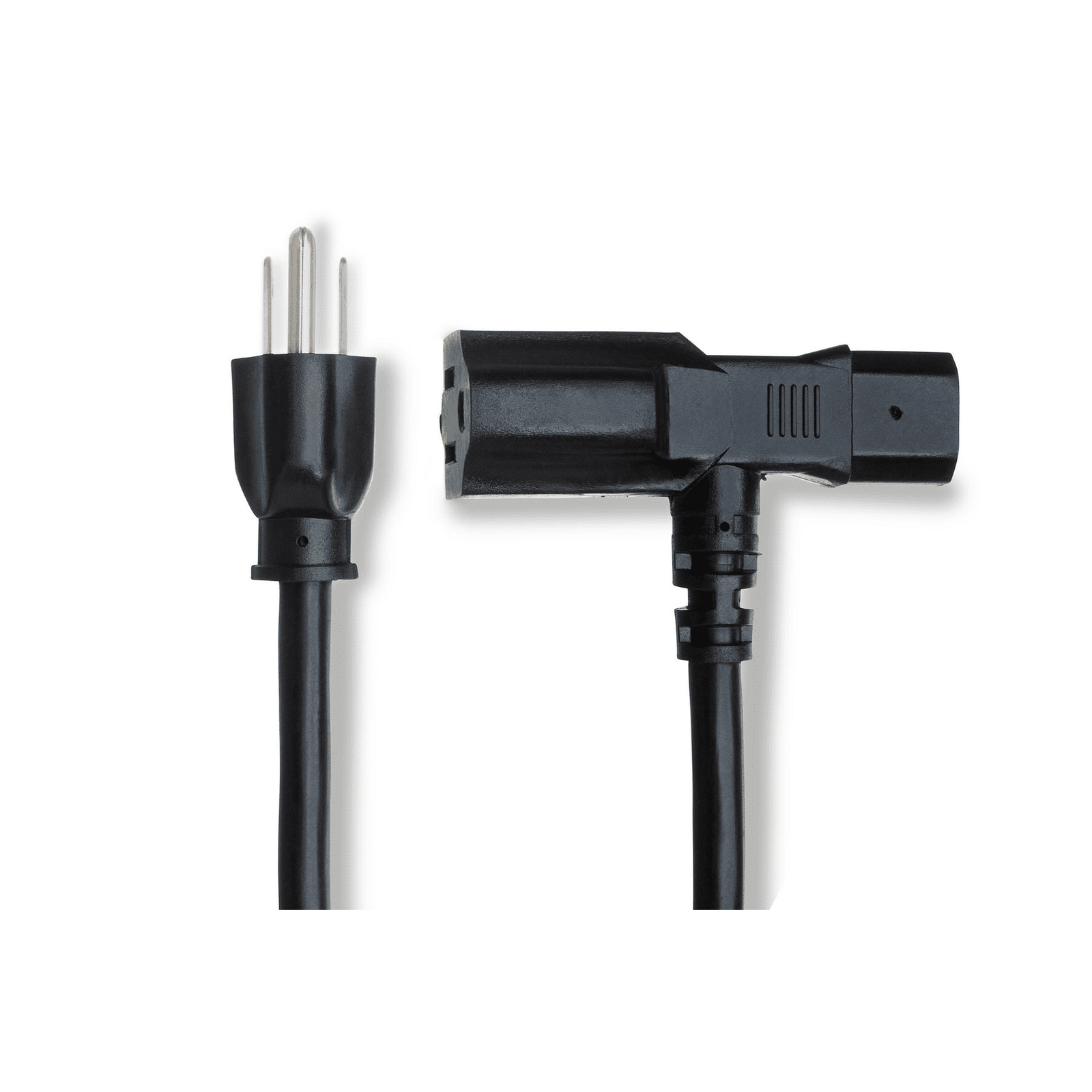

Hosa PWD‑401 – Piggyback IEC C13 to NEMA 5‑15P Power Cord (1 ft)
Overview
The Hosa PWD‑401 is a daisy‑chain style power cord, designed to convert an IEC C14 inlet into a NEMA 5‑15P male plug while preserving the original IEC C13 outlet for chaining additional equipment. It’s especially useful in rack installations, power distribution setups, or any situation where you want to “stack” power connections without losing a receivable input.
Key Features & Benefits
-
Piggyback (daisy‑chain) configuration: IEC C13 female + NEMA 5‑15P male
-
14 AWG, 3‑conductor, Oxygen‑Free Copper (OFC) cable for low resistance
-
Black PVC jacket: flexible, durable, professional appearance
-
Compact 1 ft length—ideal for close spacing in racks or tight installations
-
Designed to maintain an available IEC C13 port for adding another device
-
Suitable for North American / NEMA standard power systems
Specifications
| Parameter |
Value |
| Cable Length |
1 ft (approx. 30 cm) |
| Conductors |
3 × 14 AWG, Oxygen‑Free Copper |
| Input Connector |
IEC C13 (female) |
| Output Connector |
NEMA 5‑15P (male) |
| Jacket Material |
PVC, black |
| Use Case |
Daisy‑chaining in rack enclosures or behind equipment stacks |
| Standard Compliance |
Meets typical North American power cord safety norms |
Typical Use / Application Scenario
In a pro audio rack, you might have several devices each with an IEC C14 inlet, but limited number of free power outlets. Using a PWD‑401, you can plug it into a device’s C14 inlet, and then use its male NEMA plug to connect to a wall outlet or power conditioner — while still leaving the original C13 accessible to feed another device. You can “stack” multiple PWD‑401 units in line to extend the chain. This is particularly helpful for neat cable routing and reducing the number of dropped outlets in one rack.
Tips & Best Practices
-
Ensure that the total current of all chained devices doesn’t exceed the cable’s safe current rating (based on 14 AWG and typical power cord design).
-
Keep the run as short as feasible to reduce voltage drop (1 ft helps minimize this).
-
Use snug, strain-relieved terminations to avoid stress at connection points.
-
Avoid sharp bends close to the connectors—leave some flex radius.
-
For critical or high-current devices, use dedicated power runs rather than chaining multiple loads.
