Description

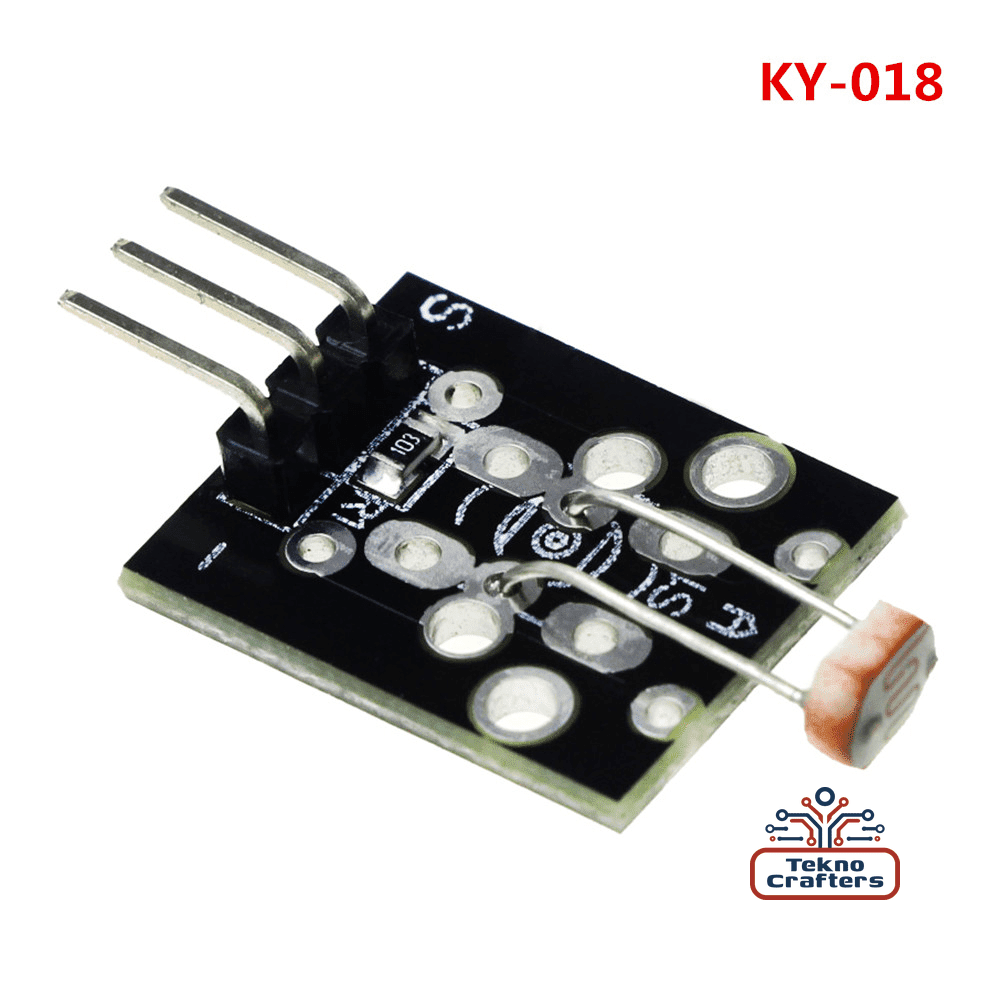

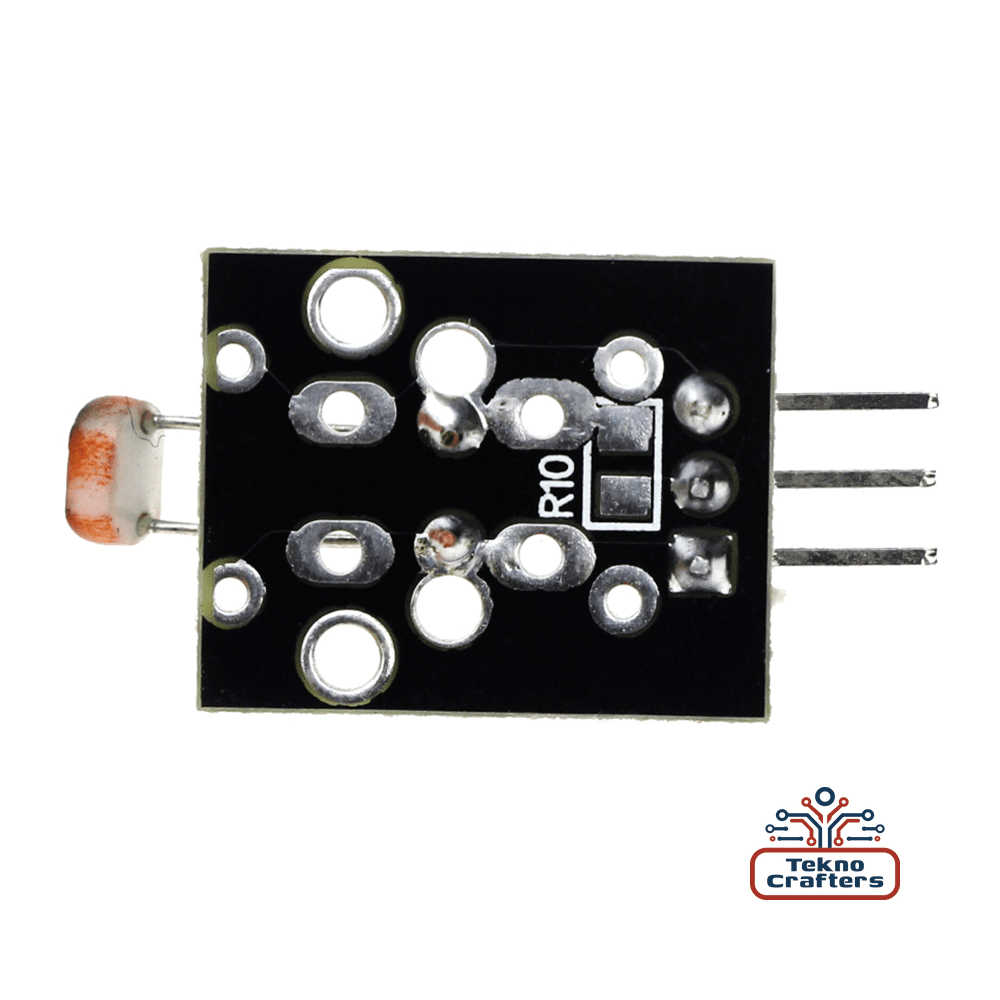

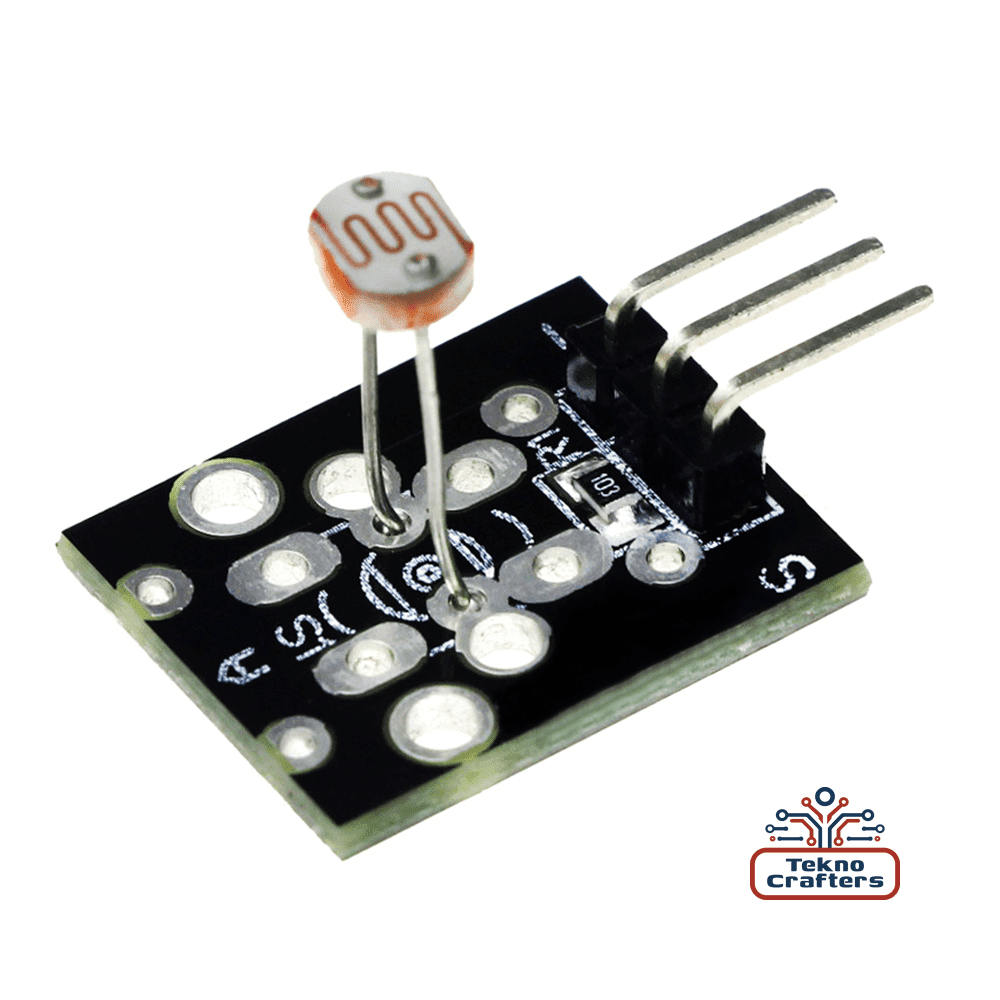

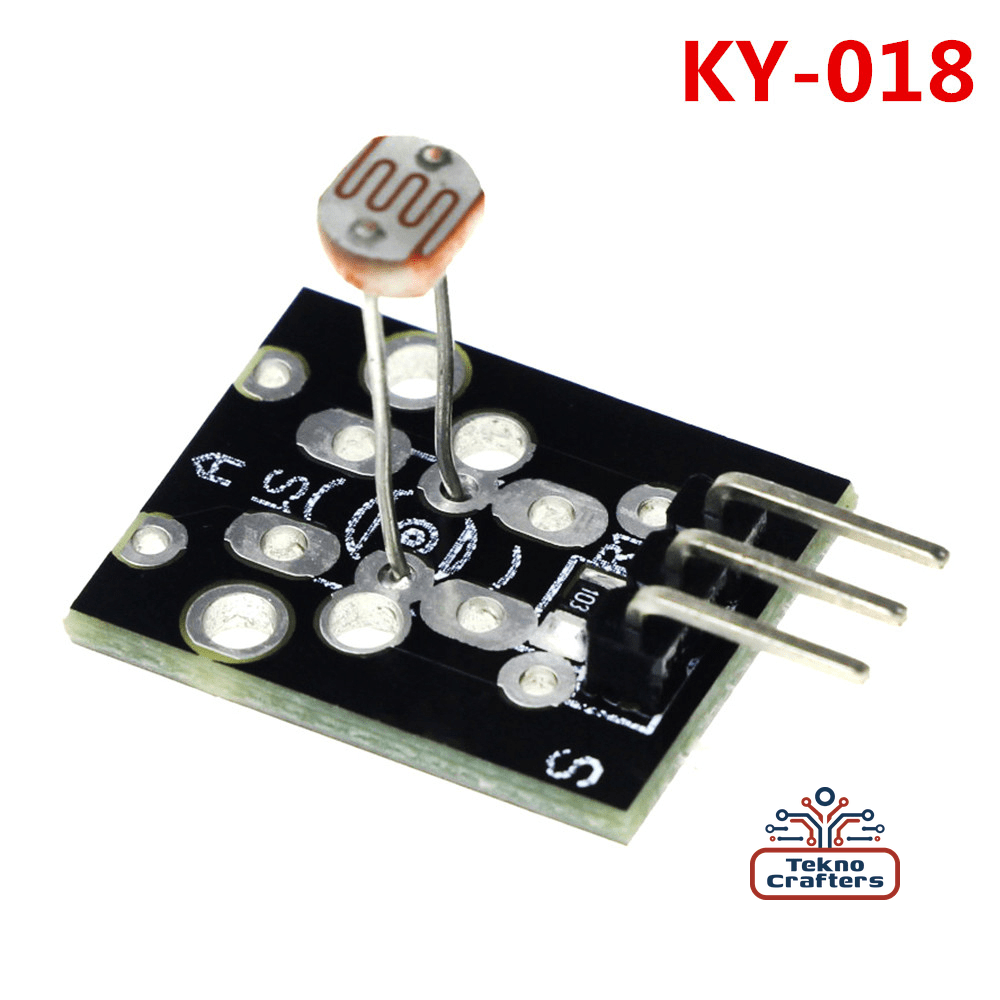

TeknoCrafters FA3041 Photosensitive Resistor Sensor Module (KY-018 Class)
The TeknoCrafters FA3041 is a compact and efficient photosensitive resistor sensor module, modeled after the KY-018 platform. It integrates a light-dependent resistor (LDR) and a 10kΩ fixed resistor to form a voltage divider circuit, providing an analog voltage output that varies with light intensity. This module is ideal for applications requiring ambient light detection and is compatible with microcontrollers such as Arduino, ESP32, and ESP8266. For Raspberry Pi users, an external analog-to-digital converter (ADC) is necessary due to the lack of native analog input.
Tri-Tek Electronics, located in Mesa, Arizona, is an authorized distributor of TeknoCrafters products. We ensure full manufacturer warranty coverage, competitive pricing, and direct factory support. Our retail location serves customers in Phoenix, Chandler, Tempe, Gilbert, Scottsdale, Glendale, and surrounding areas.
Features
-
Sensor Type: Light-dependent resistor (LDR)
-
Operating Voltage: 3.3V to 5V
-
Output Type: Analog voltage
-
Fixed Resistor: 10kΩ
-
Dimensions: Approximately 21mm x 15mm x 6mm
-
Pin Configuration:
Example Applications
-
Ambient Light Detection: Automatically adjust lighting systems based on ambient light levels.
-
Security Systems: Detect changes in light intensity to monitor for unauthorized entry.
-
Consumer Electronics: Implement automatic brightness control in displays and indicators.
-
DIY Projects: Create interactive installations that respond to light changes.
-
Educational Tools: Demonstrate principles of light-dependent resistance in physics experiments.
Installation Example
In a typical Arduino setup, connect the FA3041 module as follows:
This configuration allows the Arduino to read analog voltage changes corresponding to variations in light intensity, enabling real-time monitoring and control in various applications.
