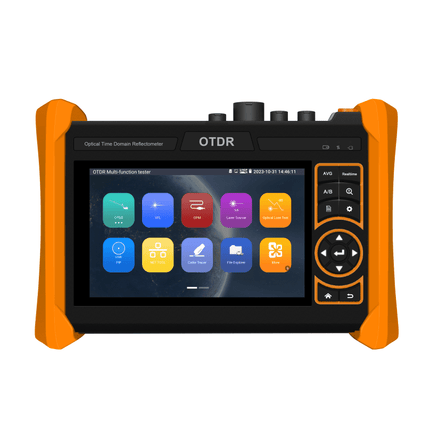

VPro MOT-65 OTDR (1310/1550 nm) 5.4" Touch-Screen Multifunction Tester

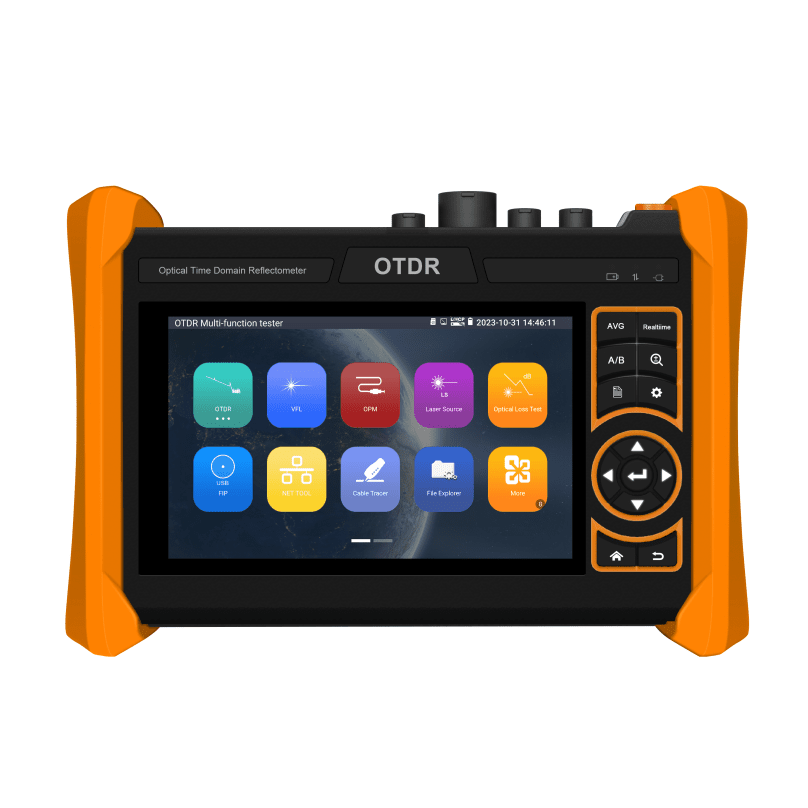

The VPro MOT-65 is a compact, field-ready OTDR for singlemode fiber verification, troubleshooting, and certification. Its bright 5.4" IPS touch display, dual-wavelength OTDR engine (1310/1550 nm), and integrated test utilities—Optical Power Meter, Stabilized Laser Source, and Visual Fault Locator—make it a versatile all-in-one platform for installers and technicians. Tri-Tek Electronics is an authorized distributor and ensures full manufacturer warranty coverage, best pricing, and factory support for local Phoenix-area professionals.

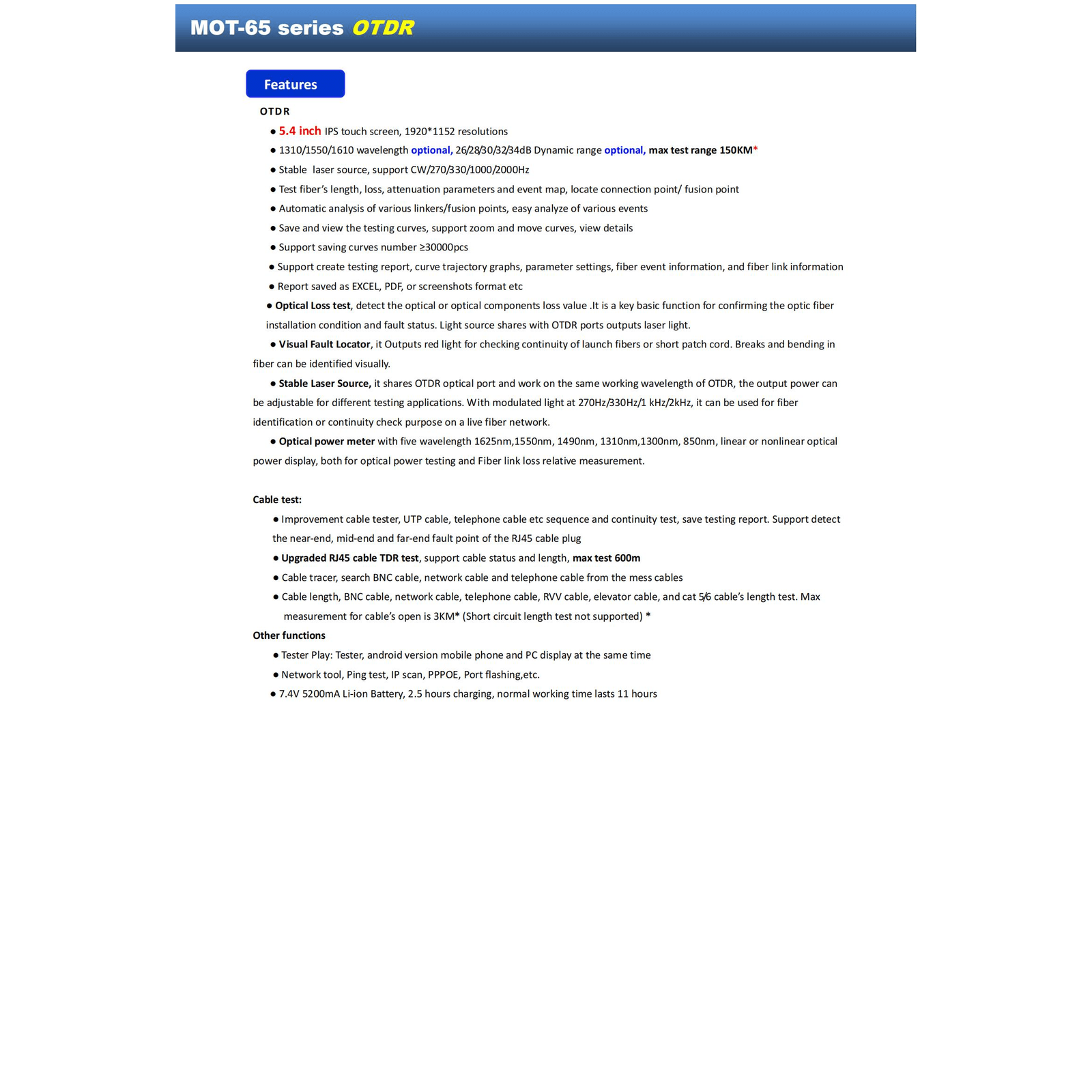

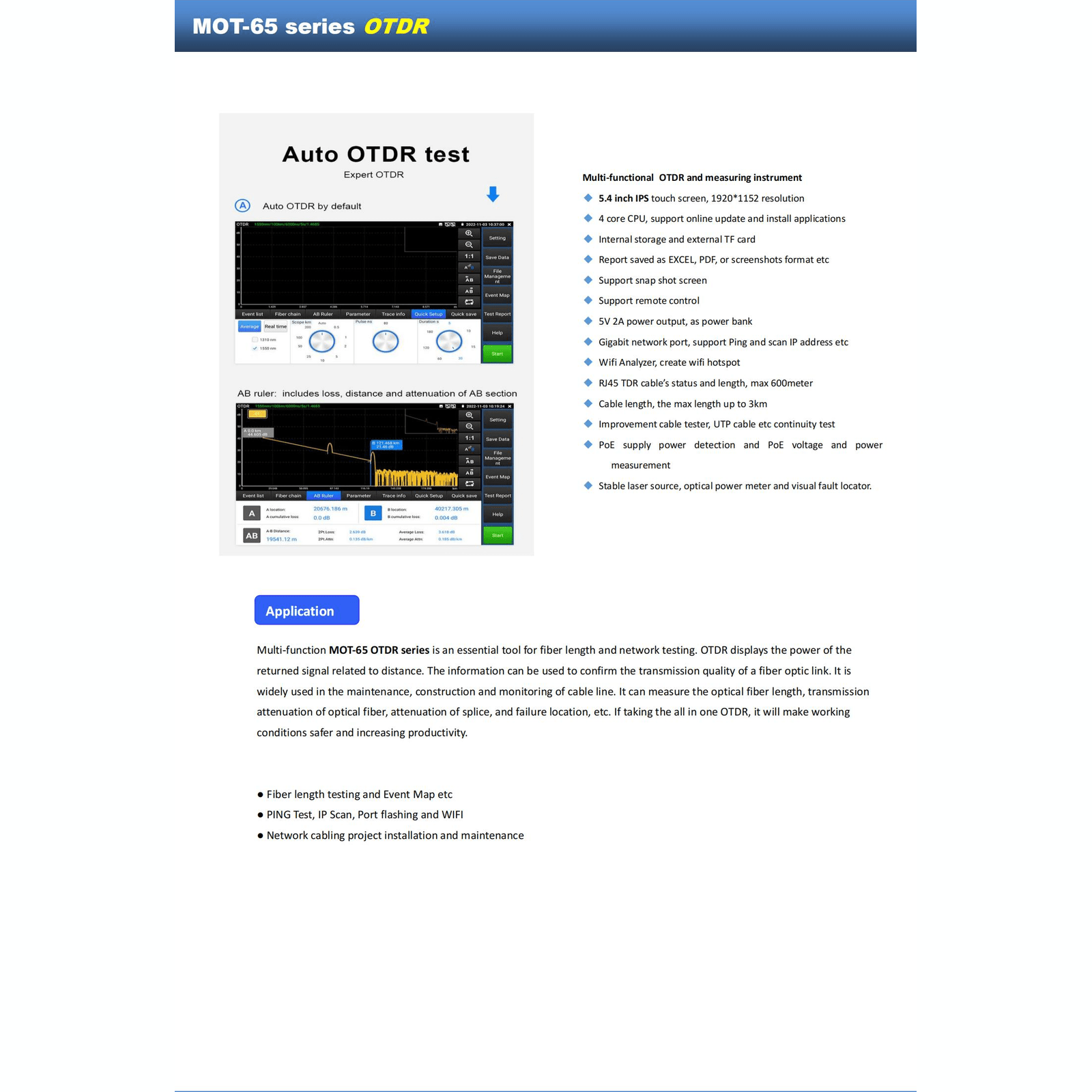

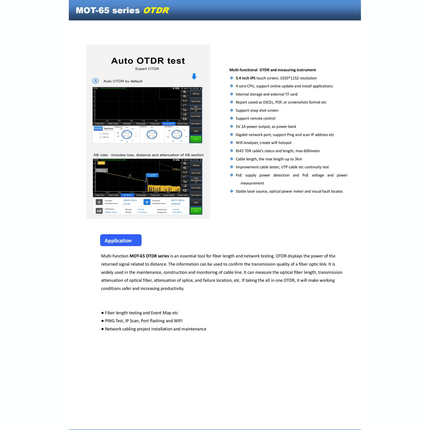

Key Features
-

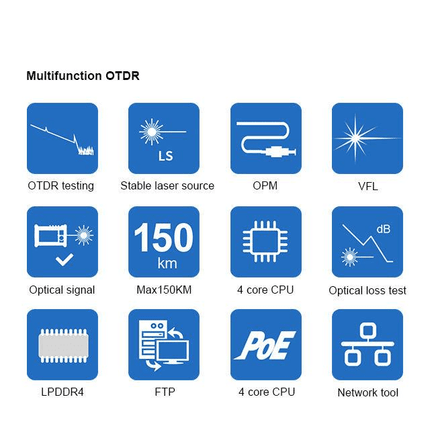

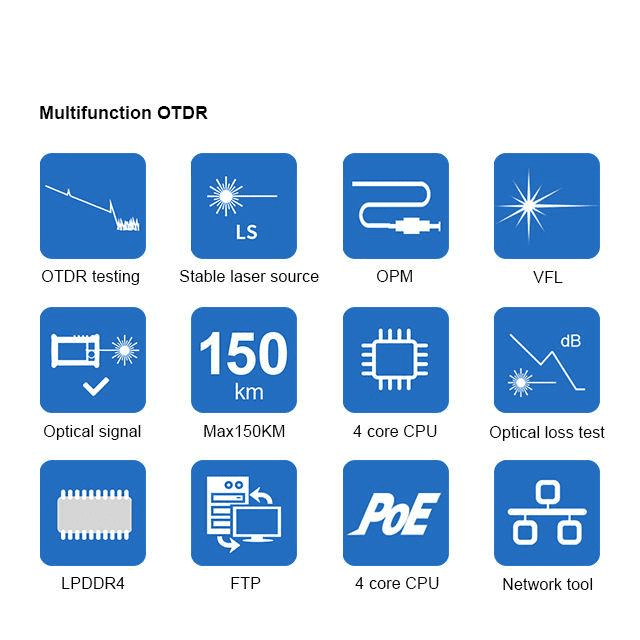

Dual-wavelength OTDR at 1310/1550 nm with up to 150 km test range and selectable pulse widths for short drops or long backbones.
-
Tight event/attenuation dead zones for near-end event visibility; adjustable averaging and real-time modes.
-

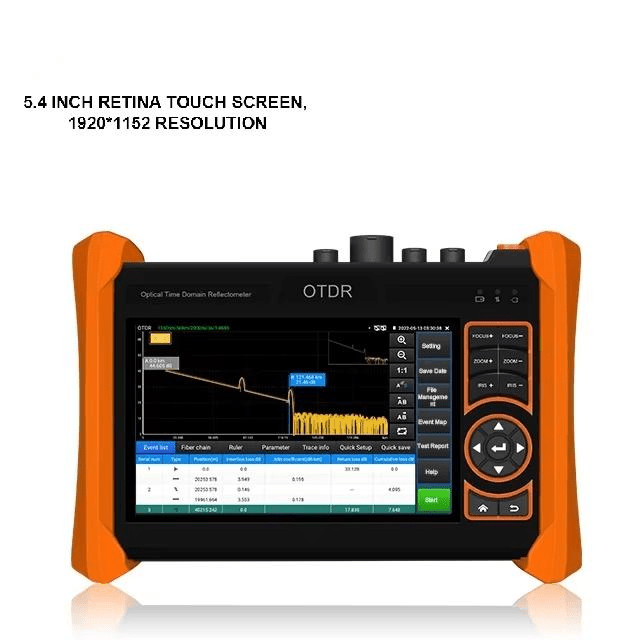

5.4" IPS touch screen (1920×1152) with multi-trace display, pinch-zoom, event map, and PDF/SOR/Excel report export.
-
Built-in Optical Power Meter (850–1625 nm ranges), Stabilized Laser Source (CW/270/330/1k/20k Hz), and 10 mW VFL for quick checks.
-

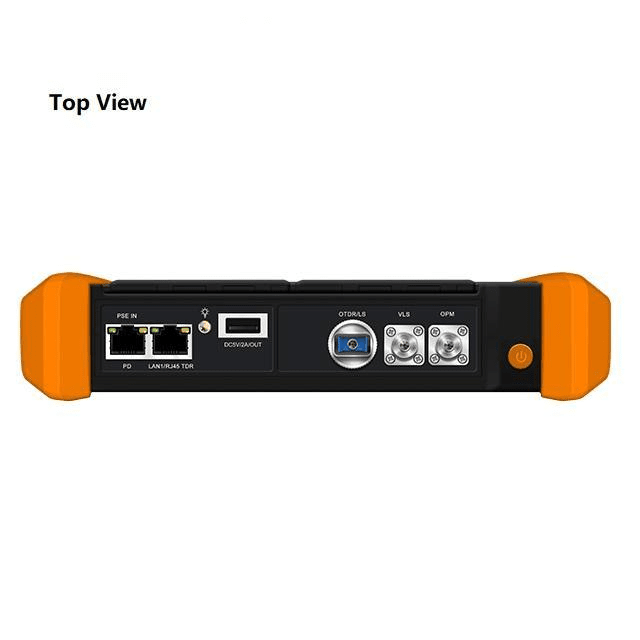

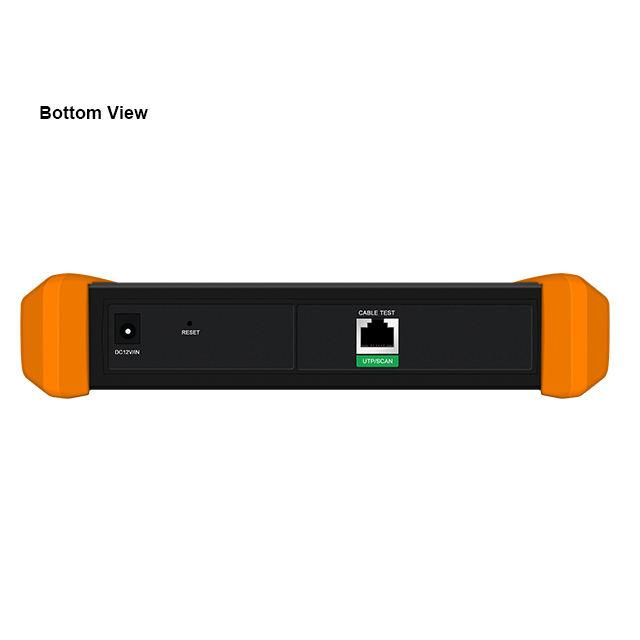

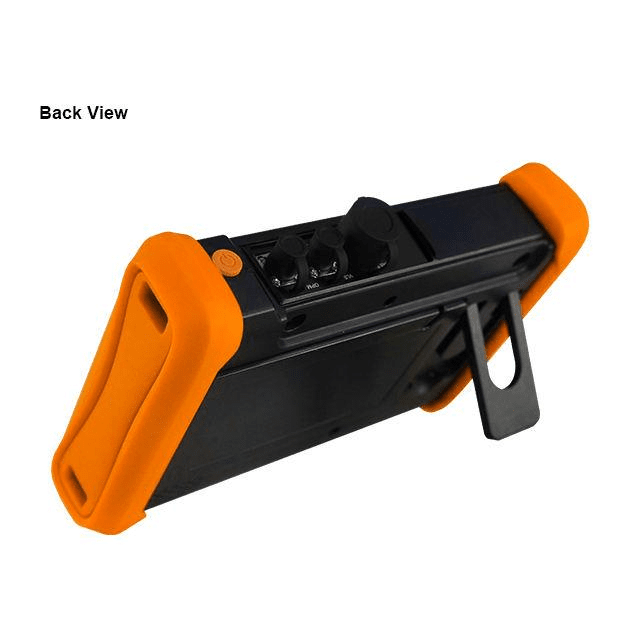

SC-PC OTDR port; internal 8 GB storage plus TF card; USB file management and upgrades.
-
Long-life Li-ion battery (7.4 V, 5200 mAh) with ~11 hours typical operation after ~2.5 hours charge; DC 12 V input.
-
Bonus copper/network tools: UTP cable test, RJ45 TDR (to 600 m), digital cable tracer, basic network pings/traceroute.
What’s Included (Typical Kit)
-
MOT-65 main unit with 5.4" touch screen
-
Li-ion battery, DC 12 V/2 A adapter
-
SC optical test head and dust caps
-
Cable tracer, BNC lead & alligator clamp, RJ45↔BNC adapter
-
8 GB TF card, tool bag, safety cord, user manual, test report
-
RS-485 lead, power cable, accessory set (as supplied)
How Installers Use It (Quick Workflow)
-
Baseline & cleanliness: Clean connectors, verify launch/receive leads are good.
-
Set up OTDR: Choose wavelength(s), range, pulse width, and averaging. Use Auto for first look; switch to Expert to refine pulse/range for near- or far-end details.
-
Connect correctly: OTDR → launch cable/box → cable under test; optionally add a receive tail at the far end to see the last connector cleanly.
-
Run & analyze: View the trace and event map for reflection (connectors) and non-reflection (splices/bends) events, measure distances/losses, and save SOR/PDF/Excel.
-
Spot checks: Use the VFL for visible break/bend checks and the built-in OPM/LS pair for insertion-loss measurements (set a reference first).
Why the Built-In OPM + Light Source Matter
-
The laser source outputs a stabilized test signal at telecom wavelengths (same set as the OTDR module). Pair it with the OPM to measure received power and compute insertion loss. For accurate results, set a reference/baseline using a known-good short jumper before testing devices or links. A VFL is not a substitute for a stabilized source—it’s visible 650 nm and not power-stabilized.

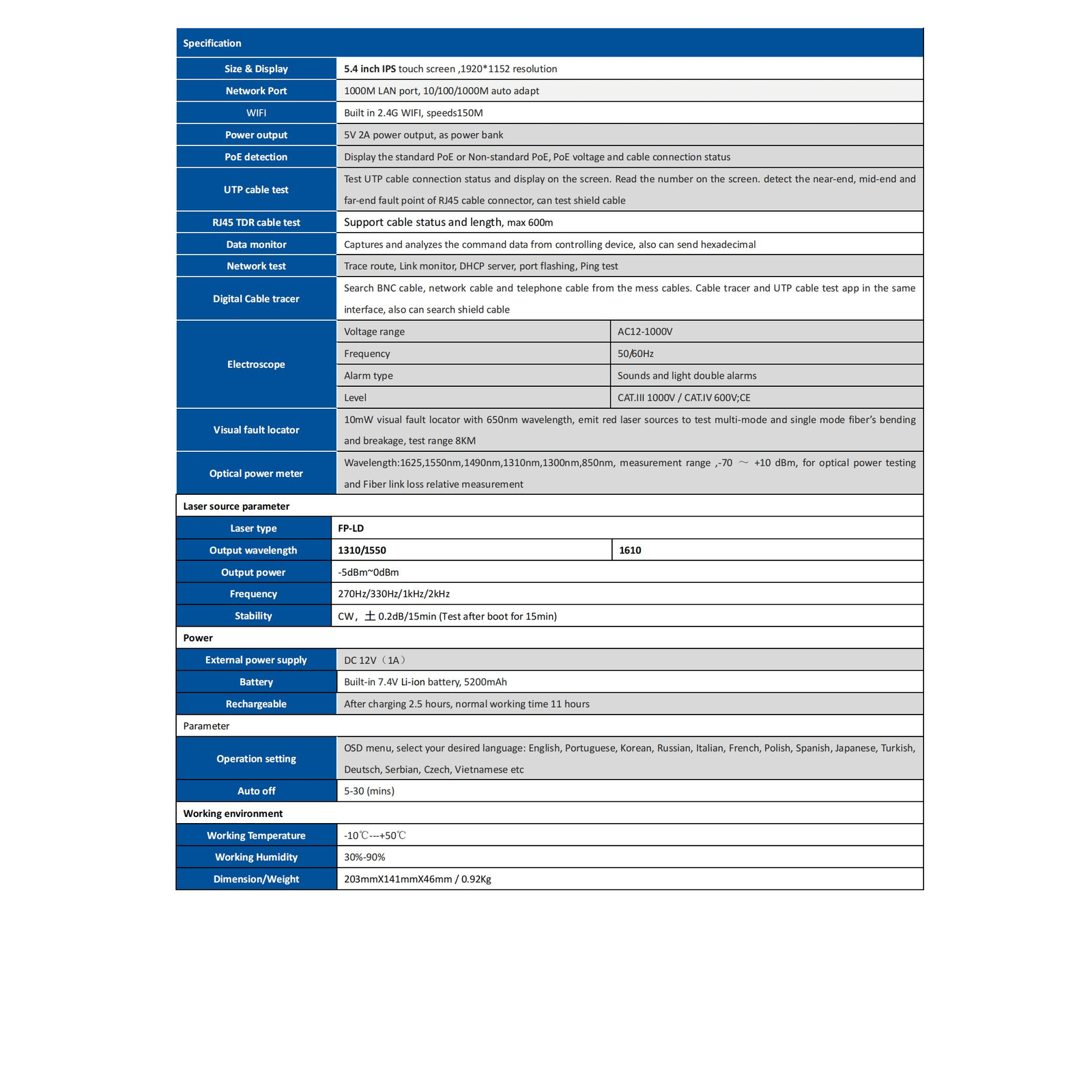

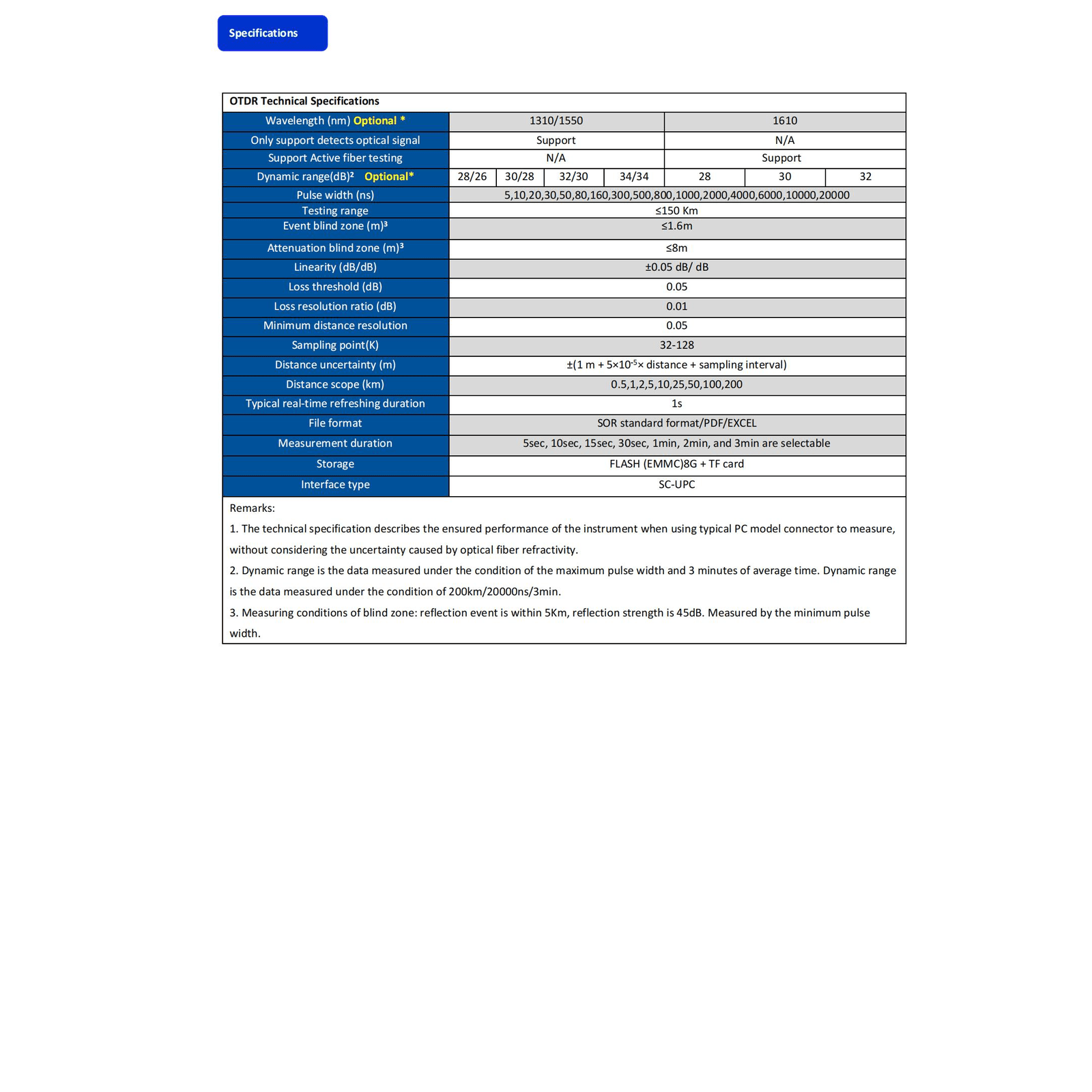

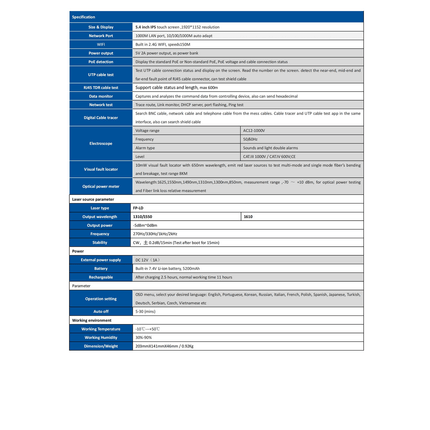

Specifications (Summary)
-
OTDR wavelengths: 1310/1550 nm (1610 nm optional)
-
Max range: ≤150 km; distance ranges: 0.5–200 km selections
-
Pulse widths: 5 ns to 20,000 ns (selectable)
-
Event blind zone: ≤1.6 m; attenuation blind zone: ≤8 m
-
Linearity: ±0.05 dB/dB; loss resolution: 0.01 dB
-
File formats: SOR standard, PDF, Excel; internal 8 GB + TF card
-
Display: 5.4" IPS touch, 1920×1152
-
Interfaces: SC-PC OTDR port; USB/SD for file mgmt
-
OPM: –70 to +10 dBm, 850/1300/1310/1490/1550/1625 nm
-
Laser Source: 1310/1550/1610 nm, CW/270/330/1k/20k Hz
-
VFL: 10 mW @ 650 nm
-
Battery/Power: 7.4 V 5200 mAh; ~11 h use; ~2.5 h charge; DC 12 V input
-
Size/Weight: ~264 × 182 × 43 mm; ~1 kg
-
Environment: –10 to +50 °C; 30–90% RH (non-condensing)
Example Installer Scenario
A Mesa-to-Chandler campus link is failing intermittently. The tech connects the MOT-65 to a launch box, selects 1310/1550 nm with short pulse to resolve near-end connectors, then a longer pulse to profile the full span. The event map flags a mid-span non-reflective loss rise (bent fiber) and an end-connector reflection. After fixing the bend, the tech uses the built-in LS + OPM to log insertion loss at both wavelengths and exports a PDF/SOR report for the closeout packet.
Notes for New Technicians
-
Always verify the fiber is dark before OTDR testing (no live traffic light), and never stare into ports—laser hazard.
-
Use a launch (and ideally receive) cable to see the first and last events clearly.
-
For loss testing, set a reference with a short, clean jumper before measuring the device or span; repeat per wavelength.
-
Keep ports/caps clean; dust and oil cause false fails and poor reflectance.
Tri-Tek Electronics supports installers, hobbyists, and technicians across Phoenix, Mesa, Chandler, Tempe, Gilbert, Scottsdale, and Glendale. Visit our Mesa, AZ retail counter for hands-on demos, local stock, and factory-backed support.
