Description

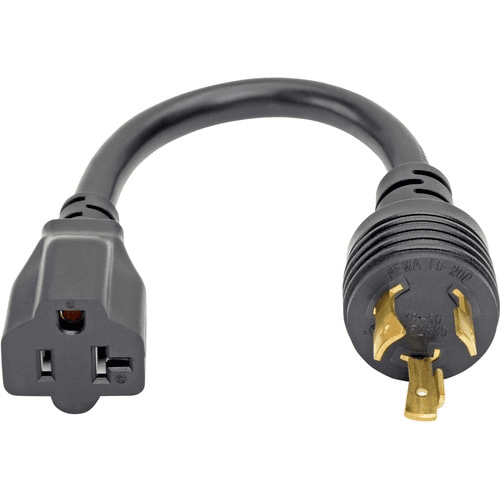

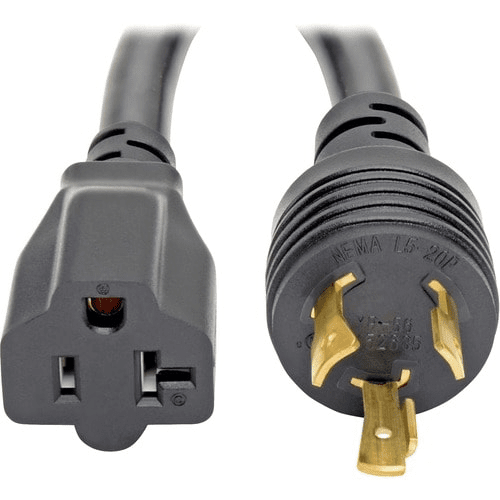

Tripp Lite P046-06N-T NEMA L5-20P to NEMA 5-15/20R Heavy-Duty Power Adapter – 6 in., 20A, 125V, 12 AWG
The Tripp Lite P046-06N-T is a rugged, 6-inch heavy-duty power adapter cord designed to convert a standard NEMA 5-15P or 5-20P straight-blade plug into a locking NEMA L5-20P plug. This adapter is ideal for connecting devices to power sources equipped with NEMA L5-20R outlets, such as PDUs, UPS systems, or wall outlets in data centers and industrial environments.
Constructed with 12 AWG wiring and a durable SJTW jacket, the P046-06N-T supports up to 20 amps at 125 volts, ensuring safe and reliable power delivery for high-demand equipment. The locking NEMA L5-20P plug prevents accidental disconnections, maintaining a secure connection even in high-traffic or vibration-prone areas.
Key Features:
-

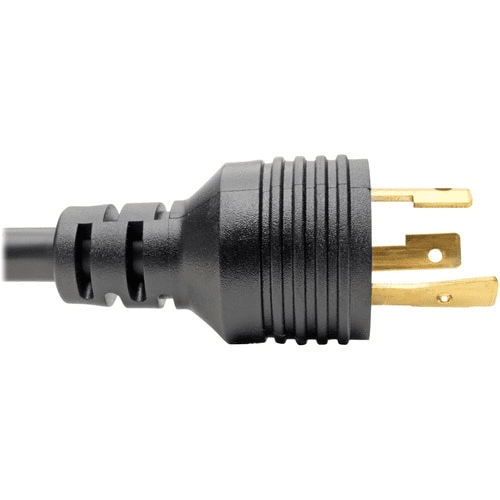

Input Plug: NEMA L5-20P (Locking, Male)
-

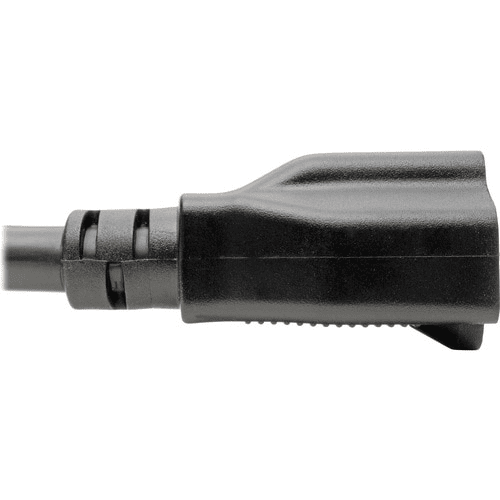

Output Connector: NEMA 5-15/20R (Straight-Blade, Female)
-
Length: 6 inches (15.24 cm)
-
Wire Gauge: 12 AWG
-
Voltage Rating: 125V
-
Current Rating: 20A
-
Cable Type: SJTW
-
Jacket Material: PVC
-
Certifications: UL Listed, cUL Listed, RoHS Compliant
-
Warranty: Lifetime Limited Warranty
Typical Applications:
-
Connecting computers, servers, or other network devices with NEMA 5-15P or 5-20P plugs to a PDU or UPS system with a NEMA L5-20R outlet.
-
Providing a secure power connection in environments where equipment movement or vibration could lead to accidental disconnections.
-
Extending an existing power connection by 6 inches to facilitate better equipment placement or cable management.
Installation Scenario:
In a data center environment, a technician may need to connect a server with a standard NEMA 5-15P plug to a PDU that only offers NEMA L5-20R outlets. The Tripp Lite P046-06N-T adapter provides a reliable solution, converting the plug type and ensuring a secure, locking connection that minimizes the risk of accidental power loss.
