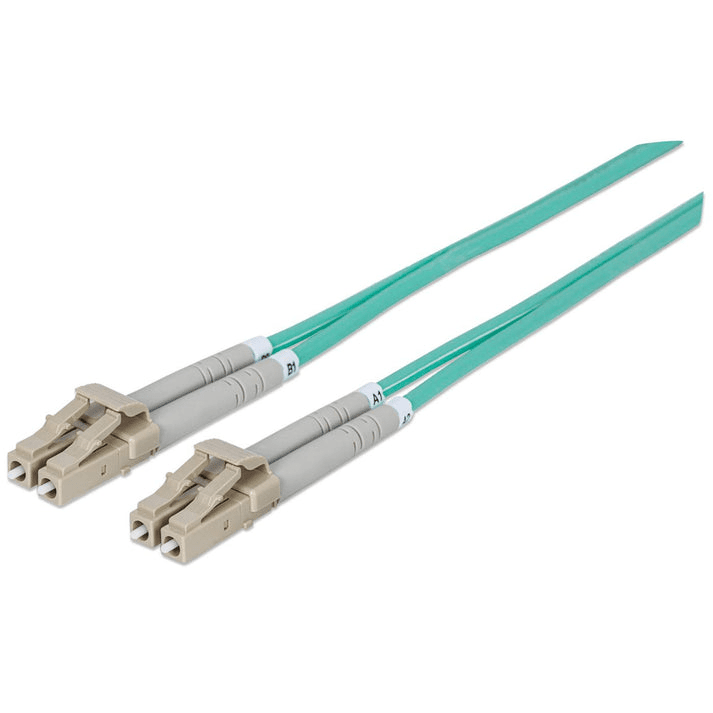

Intellinet 751926 — 10 m Duplex LC to LC OM3 Multimode Fiber Patch Cable (MM DPLX LC‑LC)
Product Overview
The Intellinet 751926 is a premium 10-meter (approximately 32.8-foot) multimode fiber optic patch cable designed for high-speed network environments. Built with OM3 50/125 μm bend-insensitive multimode fiber, this cable features duplex LC to LC UPC connectors and an aqua-colored OFNR-rated jacket. It supports 10G and higher bandwidth applications over short to medium distances, making it ideal for enterprise networks, data centers, and backbone interconnects.
With its bend-insensitive fiber and compact 2.0 mm outer diameter, it provides exceptional flexibility and reliability even when routing through tight spaces. The factory-terminated connectors ensure low insertion and return loss, while a test report is included with each cable. Backed by a lifetime manufacturer warranty.
Tri-Tek Electronics is an authorized Intellinet distributor, offering full warranty coverage, expert support, and competitive pricing for the Phoenix metro area and surrounding Arizona markets.
Features and Specifications
-
Cable Length: 10 meters (approx. 32.8 ft)
-
Connector Type: Duplex LC to LC, UPC polish
-
Fiber Type: Multimode OM3 (50/125 μm) Bend-Insensitive
-
Jacket Rating: OFNR (Optical Fiber Nonconductive Riser)
-
Outer Diameter: 2.0 mm
-
Minimum Bend Radius: 45 mm
-
Operating Wavelengths: 850 nm / 1300 nm
-
Insertion Loss: ≤ 0.2 dB typical
-
Attenuation: ≤ 3.2 dB/km @ 850 nm, ≤ 0.8 dB/km @ 1300 nm
-
Return Loss: ≥ 20 dB
-
Connector Durability: ≥ 1,000 mating cycles
-
Operating Temperature Range: –20 °C to +75 °C
-
Color: Aqua (standard for OM3)
-
Polarity: A (Tx) to B (Rx)
-
Includes factory test report
-
Lifetime manufacturer warranty
Installation and Use Case Example
The Intellinet 751926 is ideal for horizontal or backbone fiber links in telecom rooms, server farms, or enterprise data networks. For example, it can be used to connect an OM3 LC transceiver on a network switch to a fiber patch panel in an adjacent or nearby rack. Its bend-insensitive fiber ensures dependable performance even when cable routing space is tight, minimizing signal loss.
Ideal for Installers and Technicians
-
Supports 10G, 40G, and 100G multimode applications for modern networks
-
Flexible jacket and bend-insensitive fiber make it easy to route in dense environments
-
OFNR jacket ensures compliance with riser-rated installations
-
Trusted LC to LC connection ensures maximum compatibility
-
Lifetime warranty and test report guarantee professional reliability
