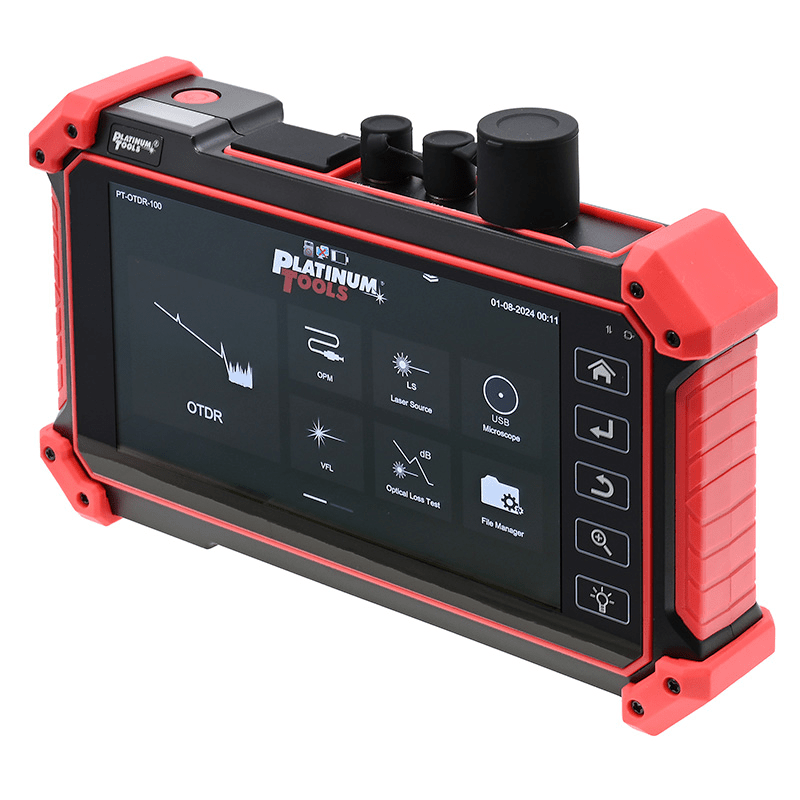

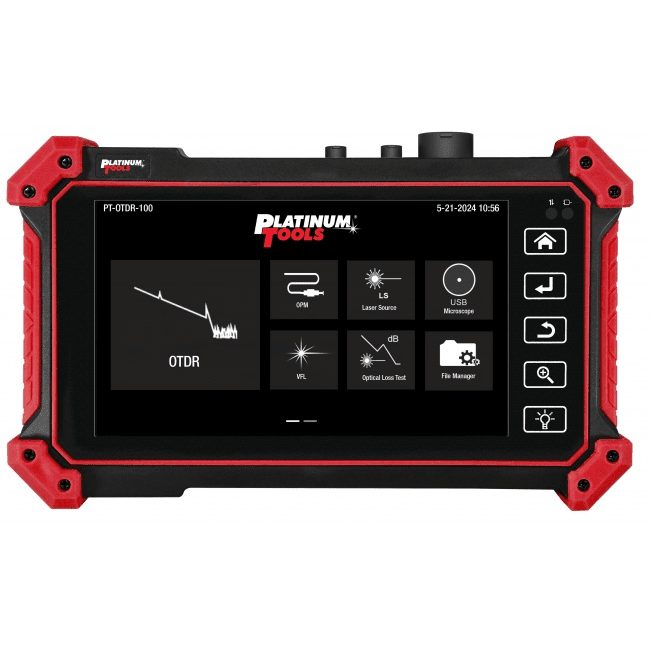

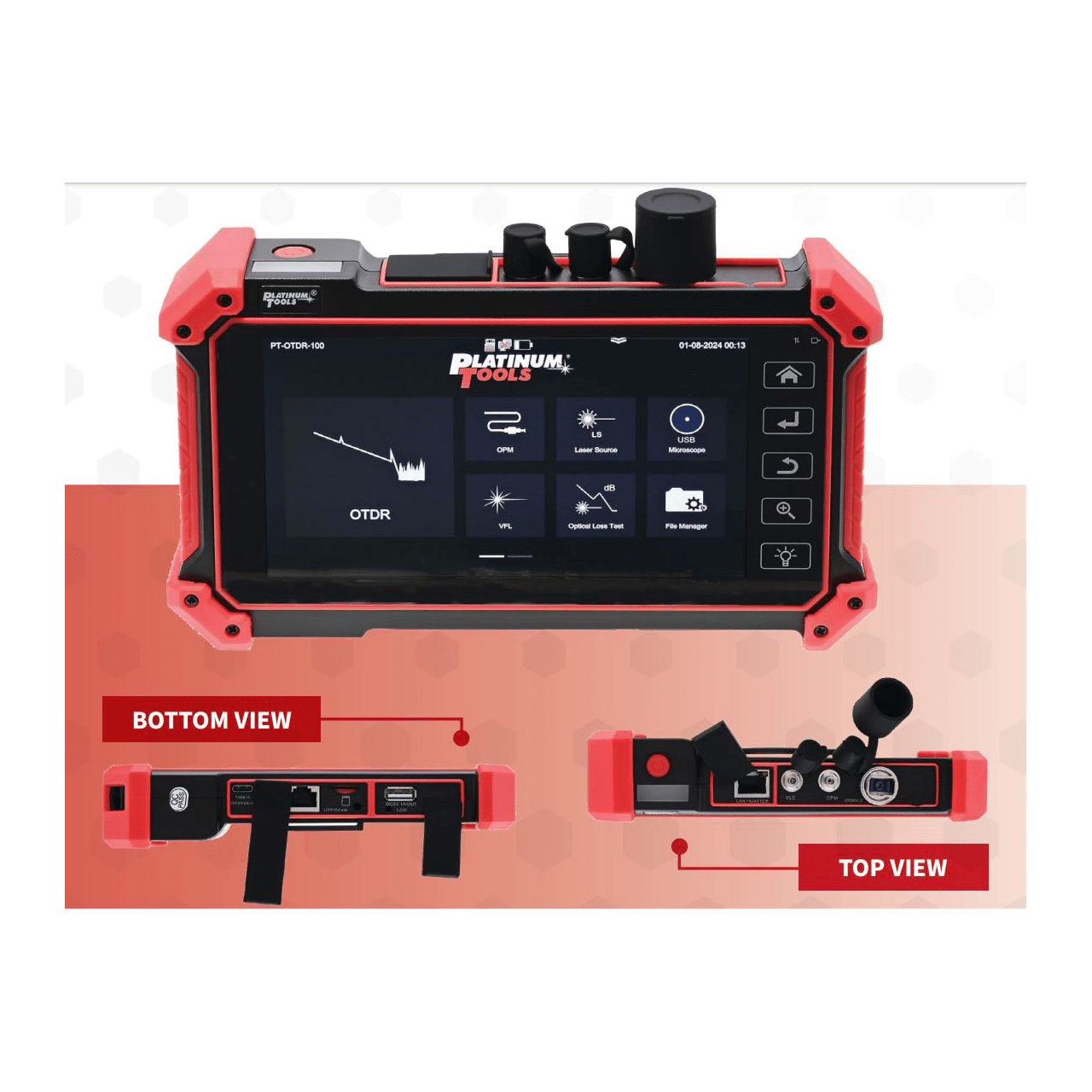

Platinum Tools PT-OTDR-100 Mini SM Fiber and Copper OTDR 1310/1550
The Platinum Tools PT-OTDR-100 is a compact, multifunctional Optical Time Domain Reflectometer (OTDR) designed for both single-mode fiber and copper cable testing. With its dual-wavelength capability (1310nm and 1550nm), this device offers a comprehensive solution for field technicians, network engineers, and installers requiring precise diagnostics and fault localization in fiber optic and copper networks.
Key Features
-
Dual-Wavelength OTDR Testing: Supports 1310nm and 1550nm wavelengths with dynamic ranges of 26dB and 28dB, respectively.
-
Comprehensive Testing Range: Measures fiber lengths from 3 meters up to 105 kilometers.
-
Integrated Tools:
-
Visual Fault Locator (VFL): 10mW 650nm laser for pinpointing fiber breaks.
-
Optical Power Meter (OPM): Measures wavelengths at 850, 1300, 1310, 1490, 1550, and 1625nm.
-
Light Source (LS): Provides stable outputs at 1310nm and 1550nm.
-
Copper Cable Testing: Includes RJ45 remote for continuity and Time Domain Reflectometry (TDR) length measurements up to 600 meters.
-
User-Friendly Interface: 5.5-inch OLED touchscreen with 1280x720 resolution for clear visualization.
-
Data Management: Test results exportable in SOR, PDF, or Excel formats.
-
Rugged Design: Compact and durable, weighing only 1 lb (0.45 kg), suitable for field conditions.
-
Battery Life: Built-in 4000mAh Li-ion battery offering up to 5 hours of continuous operation.
Technical Specifications
Download PT-OTDR-100 Specifications Sheet (.pdf)
Download PT-OTDR-100 User Manual (.pdf)
| Specification |
Details |
| Wavelengths |
1310nm / 1550nm |
| Dynamic Range |
26dB (1310nm) / 28dB (1550nm) |
| Pulse Widths |
5ns to 20µs (selectable) |
| Event Dead Zone |
≤1.6 meters |
| Attenuation Dead Zone |
≤8 meters |
| Distance Accuracy |
±(1m + 5×10⁻⁵ × distance + sampling interval) |
| Storage Capacity |
8GB internal flash + TF card support |
| Interface Type |
SC-UPC |
| Operating Temperature |
-10°C to +50°C (14°F to 122°F) |
| Dimensions |
183mm x 110mm x 36.5mm (7.2in x 4.33in x 1.43in) |
| Weight |
0.45 kg (1 lb) |
Installation and Usage Scenario
Ideal for field technicians conducting installations or maintenance of fiber optic networks, the PT-OTDR-100 allows for rapid identification of faults such as breaks, bends, or splices. For example, during the deployment of a new single-mode fiber link between two network nodes, a technician can use the PT-OTDR-100 to verify the integrity of the fiber, ensuring there are no faults or excessive losses before the network goes live. Additionally, the device's copper testing capabilities make it suitable for verifying Ethernet cabling in data centers or office environments.
