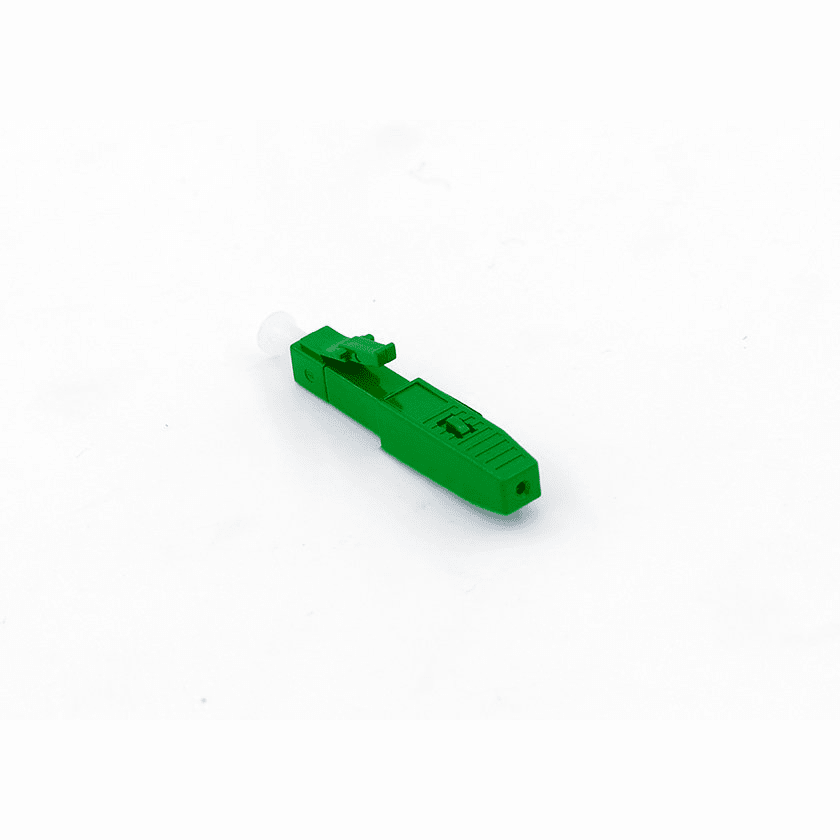

Vertical Cable 263-OSP04-1BY06 LC SM APC Mechanical Fiber Connector, 900µm Buffered, 6-Pack
The Vertical Cable 263-OSP04-1BY06 LC Single Mode APC Mechanical Fiber Connector is a high-performance, field-installable termination solution designed for 9/125µm single mode fiber. Engineered for 900µm buffered fiber, this connector allows fast, epoxy-free installations while delivering low back reflection performance required in critical fiber optic systems.
Tri-Tek Electronics is an authorized distributor of Vertical Cable products, ensuring full manufacturer warranty coverage, factory-direct support, and competitive pricing for fiber contractors throughout Phoenix, Mesa, Chandler, Tempe, Gilbert, Scottsdale, and Glendale, Arizona.
Product Overview
The 263-OSP04-1BY06 features an LC APC (Angled Physical Contact) polished interface for superior return loss performance in single mode applications. Its mechanical splice design includes a factory pre-polished ferrule, enabling quick and reliable field termination using standard fiber stripping and cleaving tools.
Packaged in a convenient 6-piece kit, this connector is ideal for FTTH installations, enterprise backbone deployments, telecom environments, and high-performance single mode networks.
Key Features
• LC connector with APC polish (angled end face)
• Single mode fiber compatibility (9/125µm)
• Designed for 900µm buffered fiber
• Mechanical splice termination – no epoxy required
• Factory pre-polished ferrule
• Low back reflection for sensitive applications
• Supplied in a 6-pack
Technical Specifications
Connector Type
LC APC
Fiber Type
Single Mode, 9/125µm
Cable Compatibility
900µm Buffered Fiber
Polish Type
APC (Angled Physical Contact)
Termination Method
Mechanical splice
Packaging
6 connectors per package
Installation & Application Scenario
In a Phoenix-area fiber deployment—such as terminating single mode fiber in a telecom closet, security backbone, or ISP service connection—the 263-OSP04-1BY06 provides a fast and dependable solution. After preparing and precision cleaving the 900µm buffered fiber, the installer inserts the fiber into the mechanical connector body and secures the splice per installation guidelines.
Ideal applications include:
• Fiber-to-the-home (FTTH) installations
• ISP and telecom infrastructure
• Enterprise and campus backbone fiber
• Long-distance single mode links
• Security and surveillance fiber systems
The APC polish significantly reduces return loss, making it especially valuable for high-bandwidth and long-distance fiber networks.
Benefits for Installers & Technicians
• Eliminates epoxy curing and polishing time
• Reduces specialized tooling requirements
• Provides professional low-reflection performance
• Ideal for service calls and new installations
• Convenient 6-pack for field technicians
