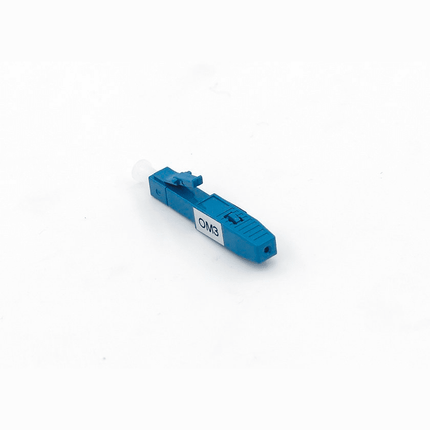

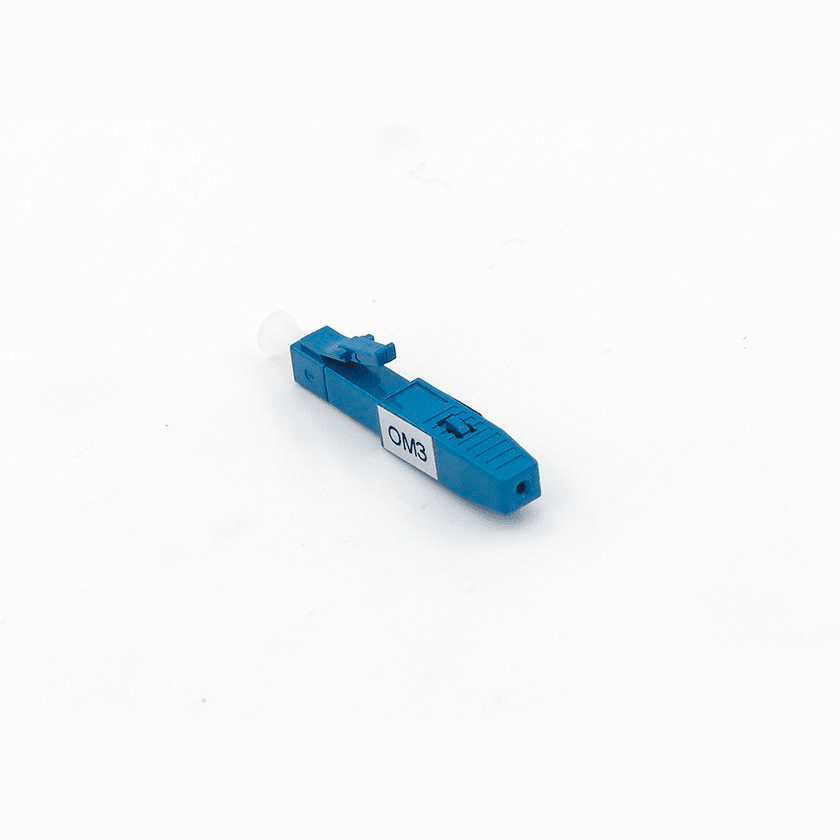

Vertical Cable 263-OSP04-1BC06 LC OM3 0.9mm Mechanical Fiber Splice-On Connectors (6-Pack)
The Vertical Cable 263-OSP04-1BC06 LC OM3 0.9mm Mechanical Fiber Splice-On Connectors are designed for quick and reliable field terminations. These high-quality LC connectors are optimized for OM3 multimode fiber, ensuring superior performance in high-speed data transmission applications. Featuring factory pre-polished end faces and a secure "V" groove fiber retention mechanism, these connectors provide a low-loss, high-durability solution for fiber optic networks.
Key Features:
-
Connector Type: LC (Lucent Connector)
-
Fiber Type: OM3 Multimode
-
End-Face Polish: Factory pre-polished for consistent optical performance
-
Fiber Retention Mechanism: Precision “V” groove for secure fiber alignment
-
Material: Durable Polyetherimide (PEI) construction
-
Termination Time: Approximately 15 seconds (excluding fiber preparation)
-
Termination Yield: Over 98% success rate
-
Required Tools: Fiber stripper, fiber cleaver, cleaning wipes, optional Visual Fault Locator (VFL)
-
Mechanical Durability: Rated for over 1,000 mating cycles
-
Reusability: Can be reused more than 10 times
-
Tensile Strength: Greater than 5 N (1.1 lbf) for strong fiber retention
-
Buffer Retention Strength:
-
0.9mm buffered fibers: ≥10 N (2.3 lbf)
-
2–3mm cables: ≥40 N (9.0 lbf)
-
Insertion Loss (IL): ≤0.3 dB at 20 N (4.5 lbf) tensile load
-
Durability Test: IL remains ≤0.3 dB after 500 mating cycles
-
Drop Test: IL ≤0.3 dB after 4m (13 ft) drops onto concrete (three times)
-
Temperature Tolerance:
-
Storage: -45°C to +85°C (-49°F to +185°F)
-
Operating: -40°C to +75°C (-40°F to +167°F)
-
Operating Humidity: ≤95% RH non-condensing
-
Compliance: Meets Telcordia GR-326-CORE industry standards
Example Installation Scenario:
These LC OM3 multimode splice-on connectors are ideal for high-speed data centers, enterprise networks, and fiber backbone installations. The mechanical splice-on design ensures a fast and secure termination process, minimizing downtime and labor costs. Technicians can rely on these connectors for quick repairs, new installations, and fiber patch panel terminations.
