Description
Vertical Cable 265-OFP04-1LAM1 LC/APC Singlemode 12-Strand 1 Meter Fiber Optic Pigtail
The Vertical Cable 265-OFP04-1LAM1 LC/APC Singlemode 12-Strand 1 Meter Fiber Optic Pigtail is a high-performance fiber termination solution engineered for professional fiber optic installations. Manufactured by Vertical Cable, this precision-terminated pigtail is designed for fusion splicing applications in singlemode networks requiring low insertion loss and superior return loss performance.
Tri-Tek Electronics is an authorized distributor of Vertical Cable products, providing full manufacturer warranty coverage, factory support, and competitive pricing for contractors and technicians throughout Phoenix, Mesa, Chandler, Tempe, Gilbert, Scottsdale, and Glendale, Arizona.
This LC/APC singlemode pigtail is ideal for structured cabling systems, telecom rooms, data centers, security systems, and FTTH installations where reliable optical performance is critical.
Product Overview

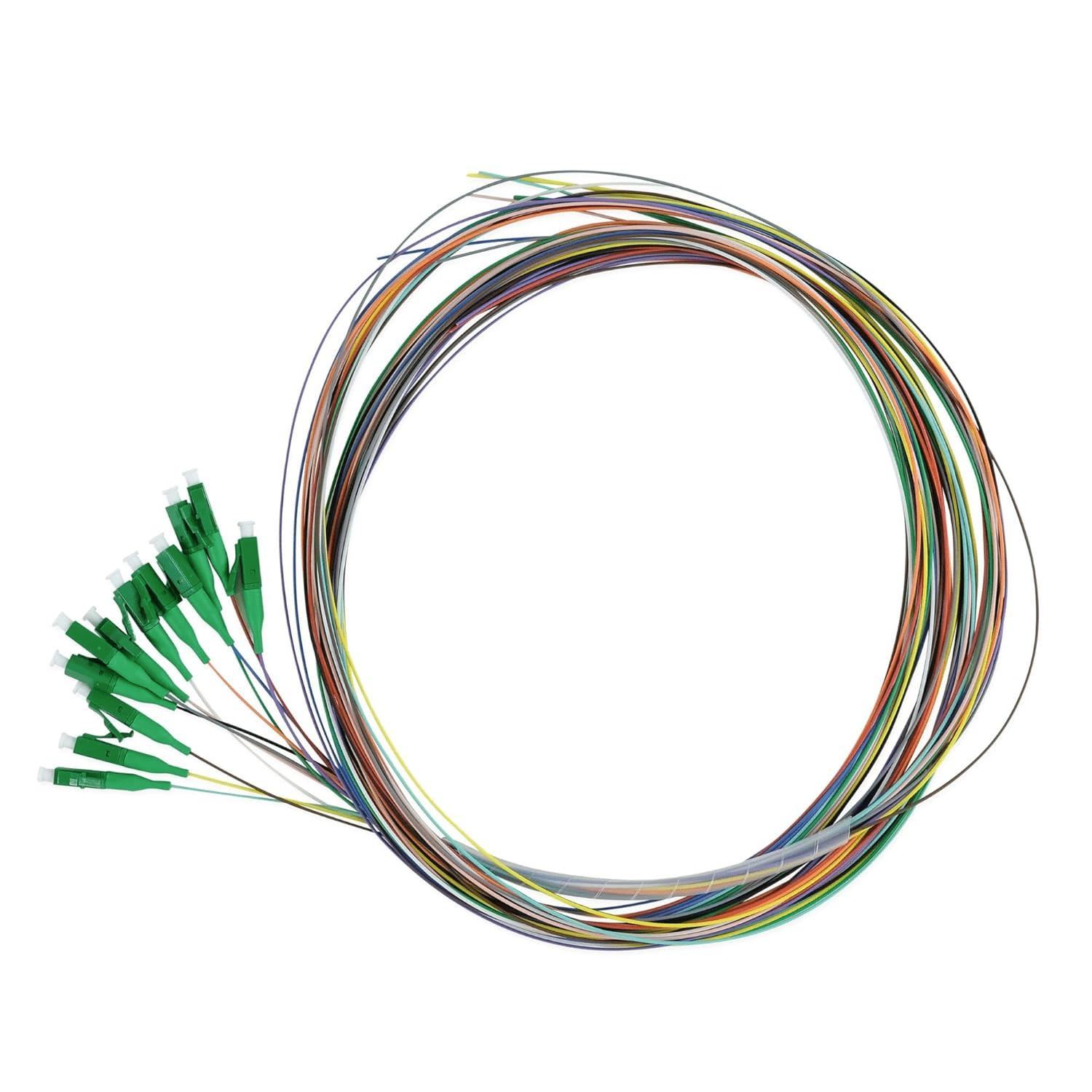

The 265-OFP04-1LAM1 fiber pigtail features a factory-polished LC/APC connector on one end and color-coded singlemode fiber strands on the other end for efficient field splicing. The 12-strand configuration allows installers to manage multiple terminations efficiently within fiber distribution panels, wall-mount enclosures, and rack-mounted fiber trays.
The angled physical contact (APC) connector provides superior return loss performance, making it especially suitable for high-bandwidth, long-distance singlemode applications.
Key Features
Connector Type: LC/APC
Fiber Type: Singlemode (OS2)
Strand Count: 12 strands
Length: 1 meter
Polish Type: APC (Angled Physical Contact)
Jacket Color: Yellow (Singlemode standard)
Factory-terminated and polished for consistent performance
Color-coded fibers for simplified identification
Optimized for fusion splicing applications
Low insertion loss and high return loss performance
Technical Specifications
Fiber Type: 9/125µm Singlemode (OS2)
Connector Polish: APC
Connector Endface Geometry: Angled 8-degree
Operating Wavelength: 1310nm / 1550nm
Insertion Loss: Low loss, factory tested
Return Loss: High return loss typical of APC connectors
Cable Length: 1 meter
Operating Temperature: Suitable for indoor telecom environments
Application Scenarios
Data Centers in Phoenix and Mesa
Enterprise LAN Backbone Installations
FTTH Deployments
Telecommunications Rooms
Security and Surveillance Fiber Backbones
Campus and Municipal Fiber Networks
Example Installation Scenario
A low voltage contractor in Mesa, AZ is terminating a 12-strand singlemode fiber backbone inside a rack-mounted fiber distribution enclosure. Using the 265-OFP04-1LAM1 pigtails, each strand is fusion spliced to the incoming backbone fiber and neatly organized within a splice tray. The LC/APC connectors are then patched directly into a fiber patch panel feeding core switches.
The APC polish ensures minimal back reflection, which is critical for maintaining signal integrity in long-distance singlemode applications across commercial buildings or multi-site campuses.
For installers and technicians, pre-terminated factory-polished pigtails reduce labor time, ensure consistent optical performance, and eliminate variability associated with field polishing.
