Description

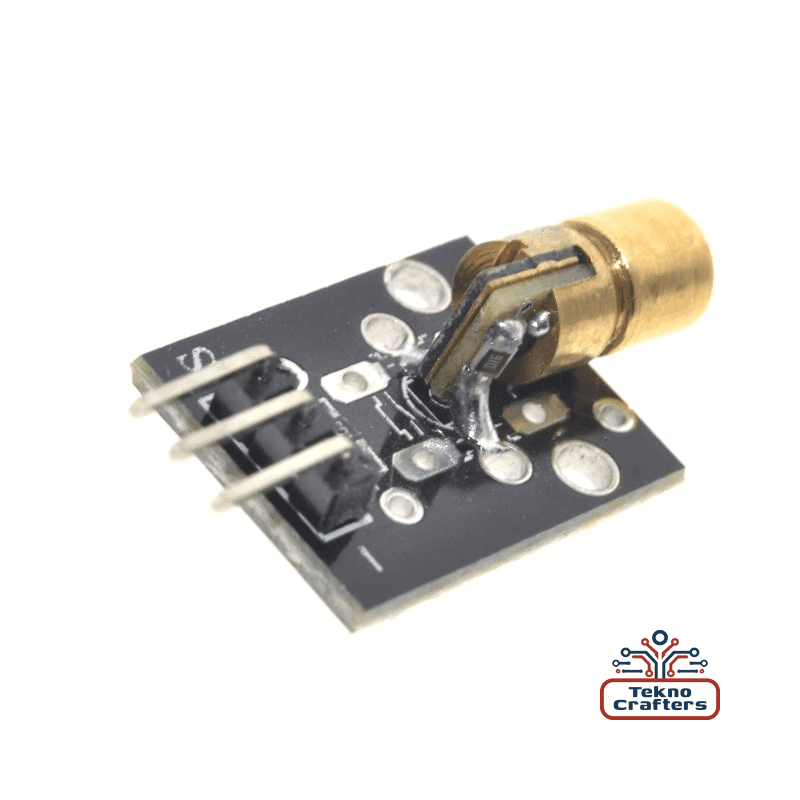

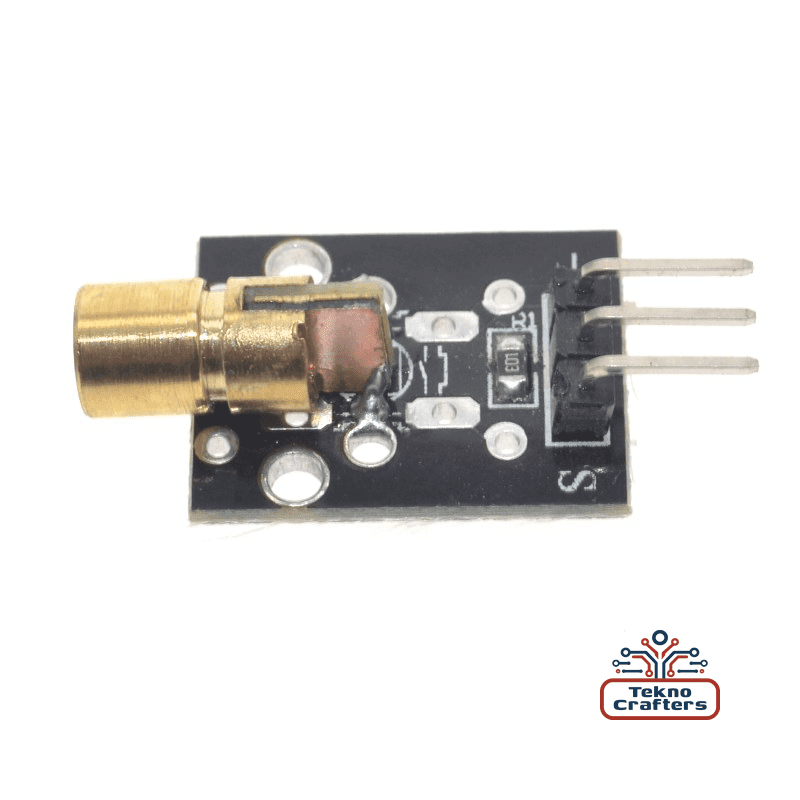

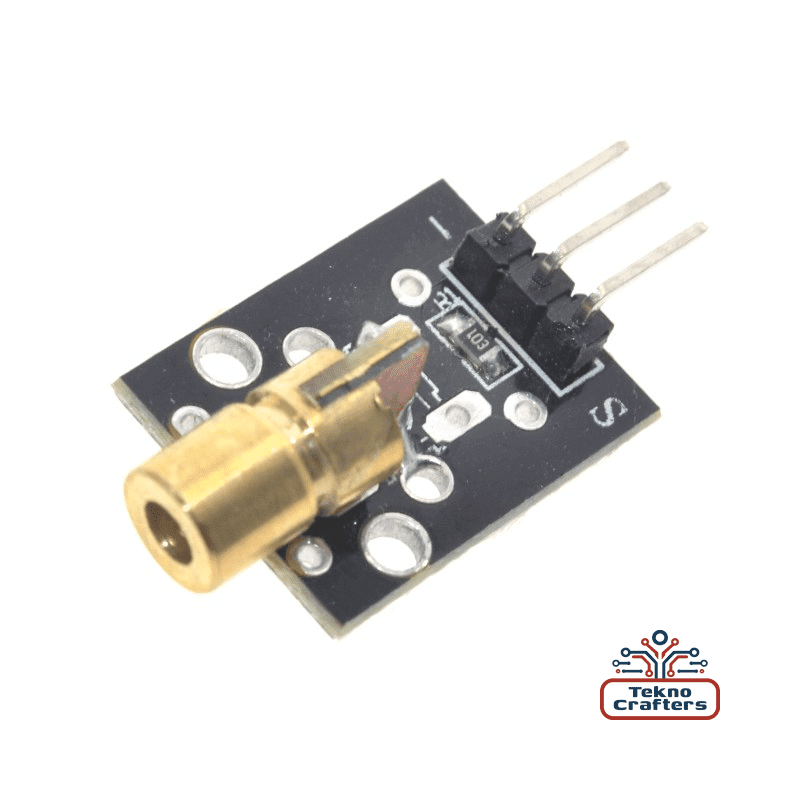

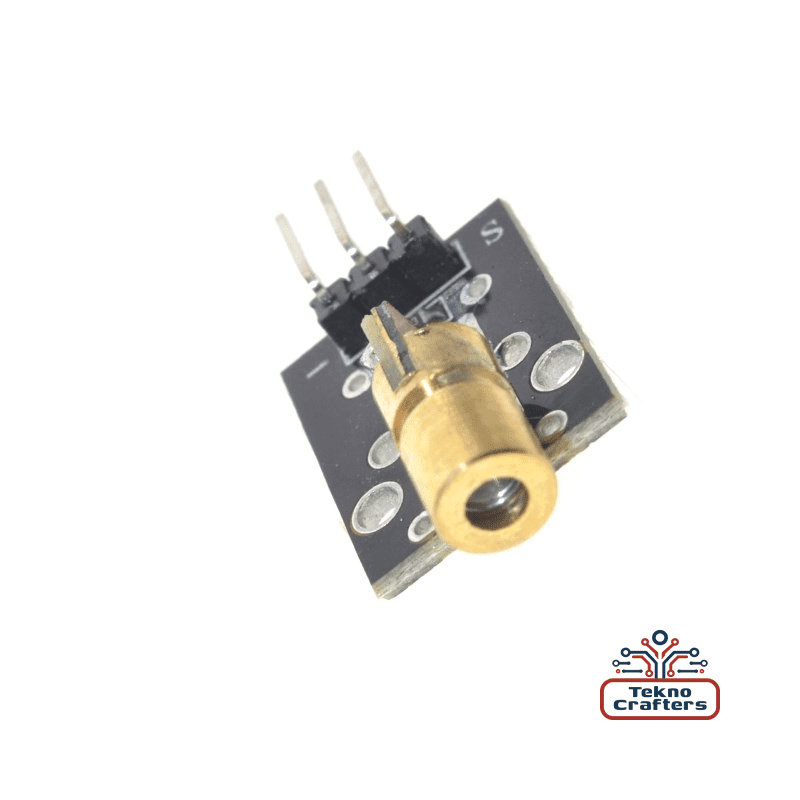

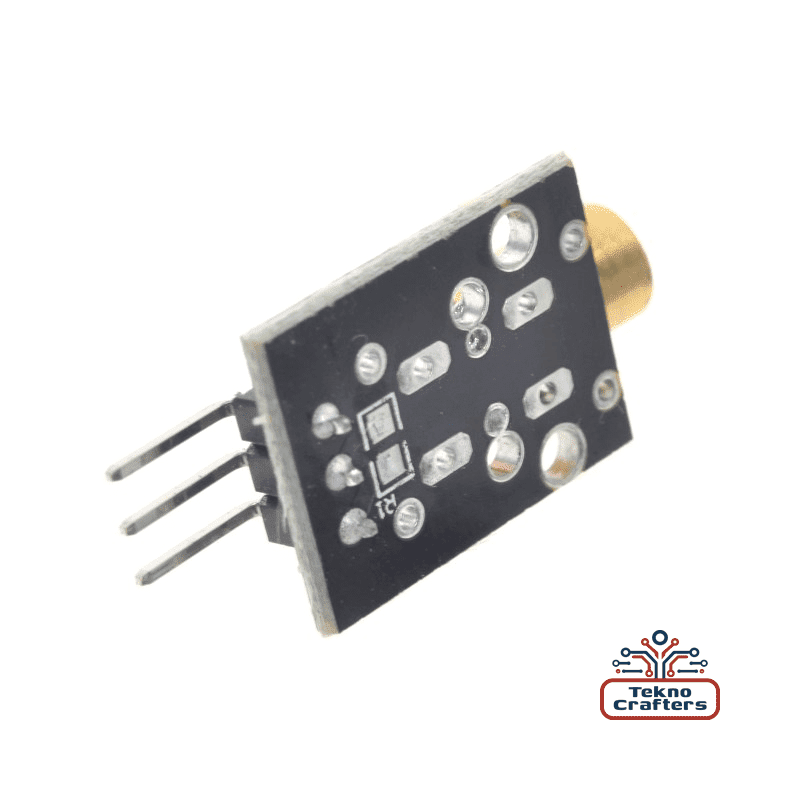

TeknoCrafters FA3021 650nm 5V Laser Transmitter Sensor Module (KY-008 Class)
The TeknoCrafters FA3021 is a compact and efficient laser transmitter sensor module, modeled after the KY-008 platform. It features a 650nm red laser diode that emits a focused dot, making it ideal for applications requiring precise laser targeting or signaling. This module is compatible with microcontrollers such as Arduino, ESP32, and ESP8266. For Raspberry Pi users, an external analog-to-digital converter (ADC) is necessary due to the lack of native analog input.
Tri-Tek Electronics, located in Mesa, Arizona, is an authorized distributor of TeknoCrafters products. We ensure full manufacturer warranty coverage, competitive pricing, and direct factory support. Our retail location serves customers in Phoenix, Chandler, Tempe, Gilbert, Scottsdale, Glendale, and surrounding areas.
Features
-
Laser Type: Semiconductor laser diode
-
Wavelength: 650nm (red light)
-
Operating Voltage: 5V
-
Operating Current: Less than 40mA
-
Output Power: Less than 5mW
-
Operating Temperature: -10°C to +40°C
-
Dimensions: Approximately 18.5mm x 15mm
-
Pin Configuration:
Example Applications
-
Laser Tripwire Systems: Create security systems that detect interruptions in the laser beam.
-
Laser Pointers: Use as a visual indicator in presentations or instructional settings.
-
Optical Communication: Implement basic optical data transmission between devices.
-
DIY Projects: Incorporate into custom electronics projects requiring a laser source.
-
Educational Demonstrations: Demonstrate principles of optics and laser technology in classroom environments.
Installation Example
In a typical Arduino setup, connect the FA3021 module as follows:
This configuration allows the Arduino to control the laser module, enabling it to turn the laser on or off as needed.
