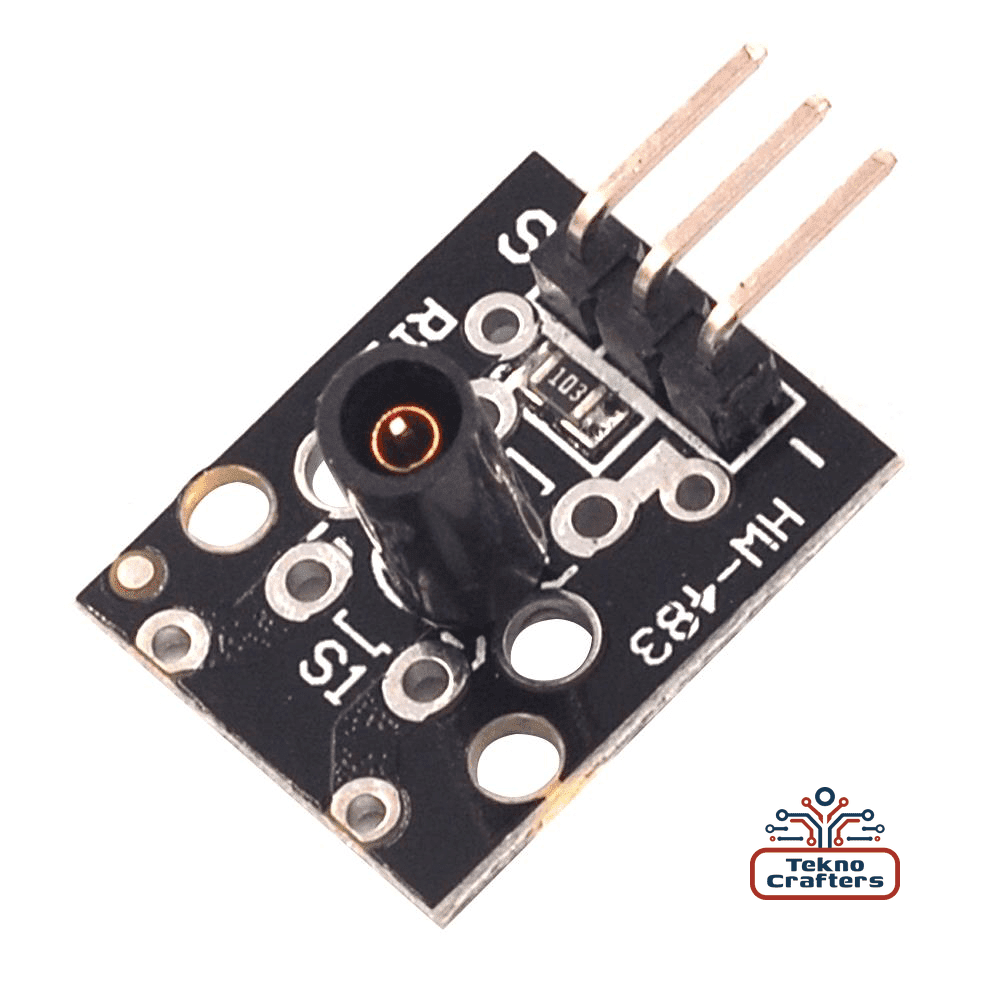

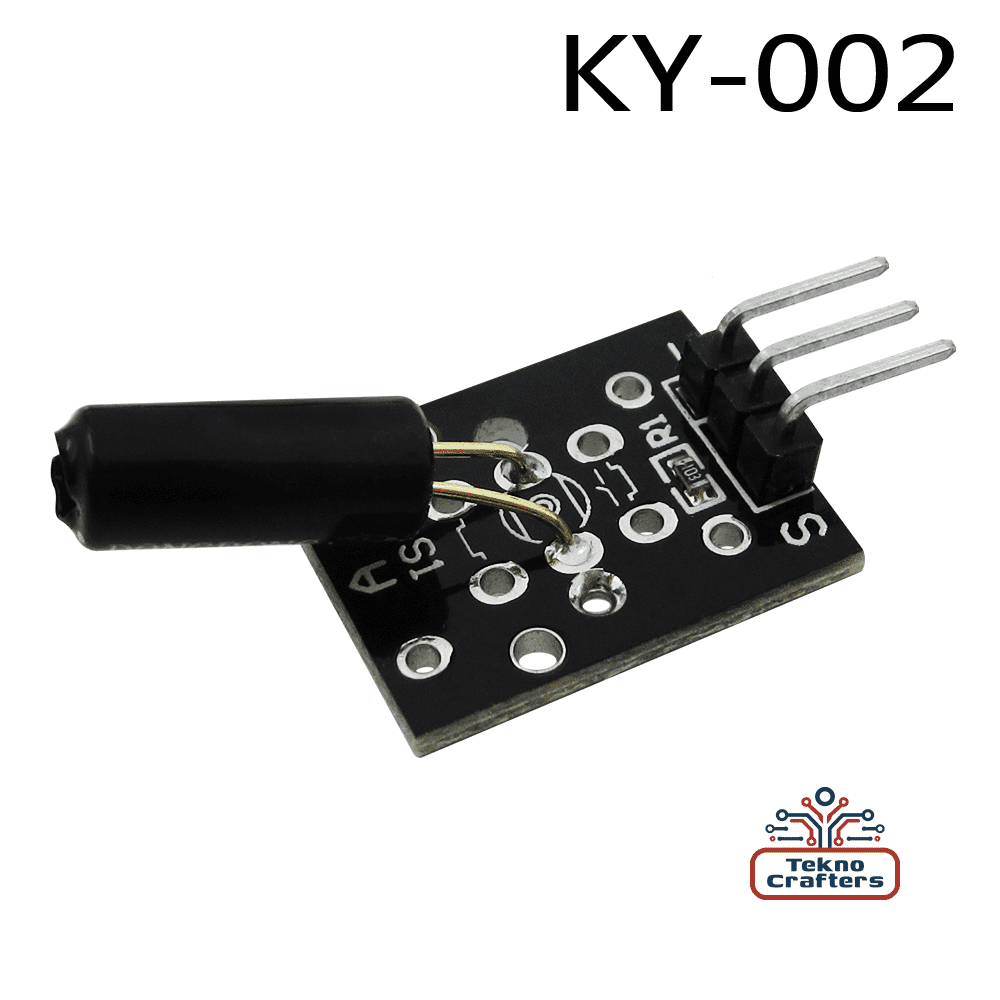

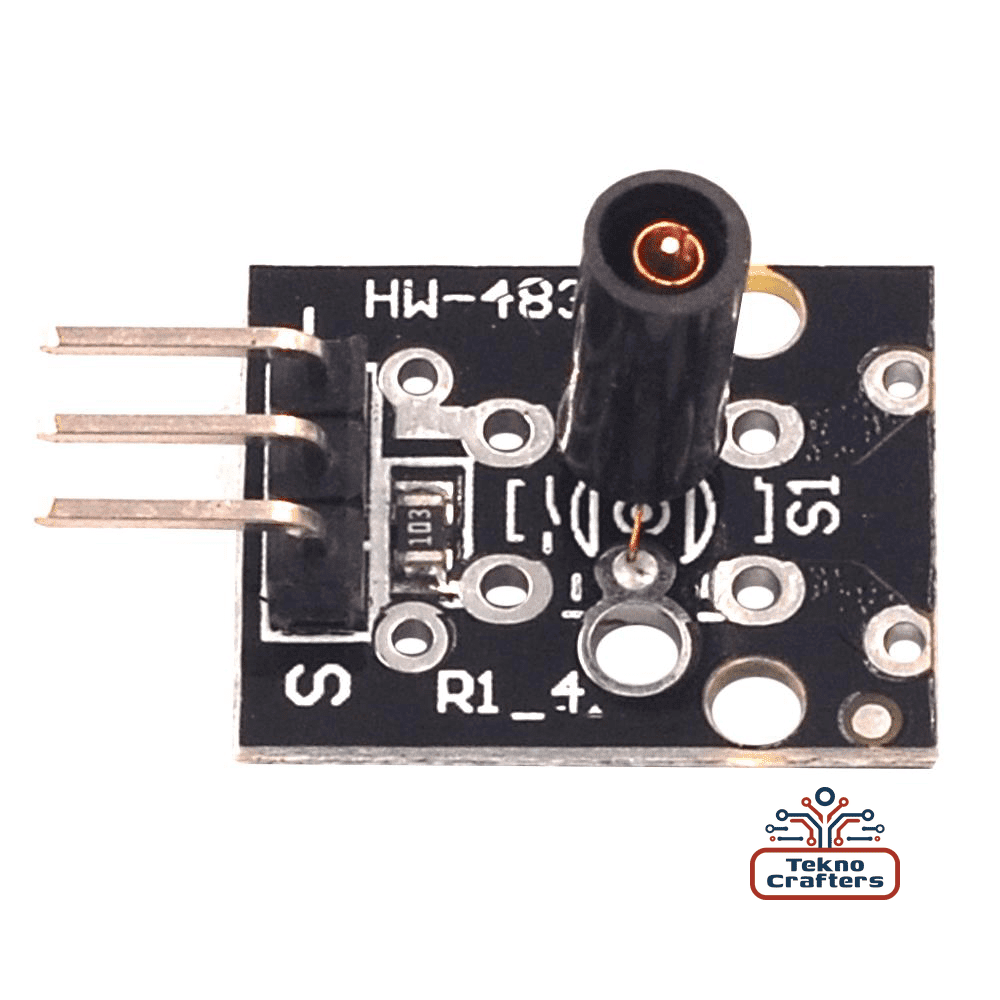

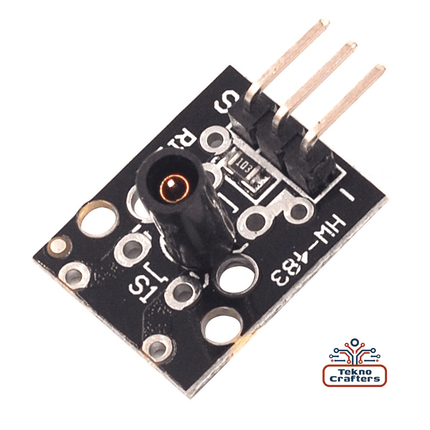

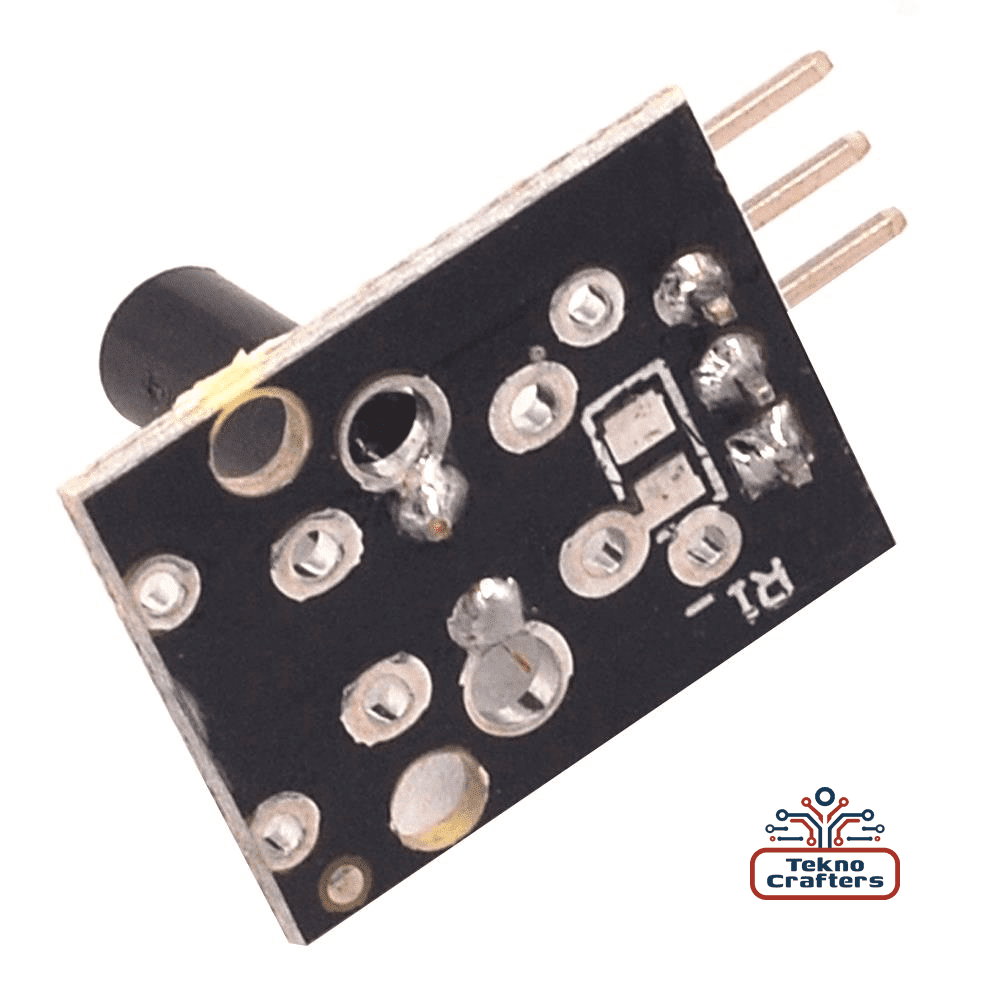

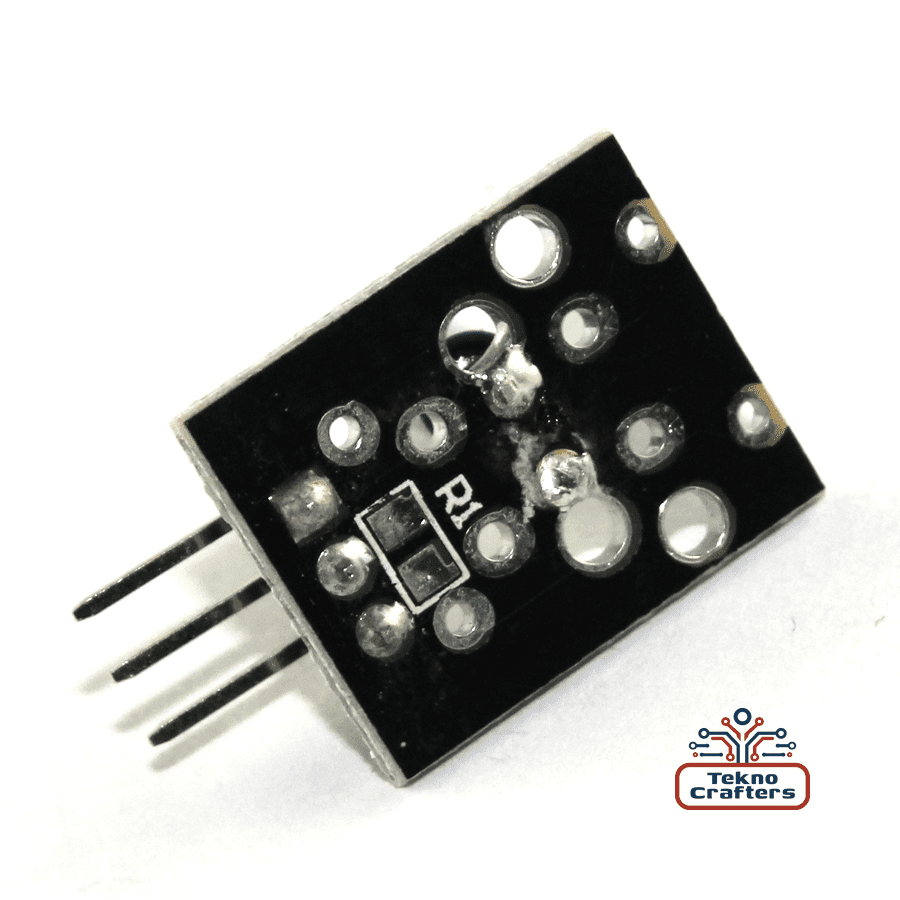

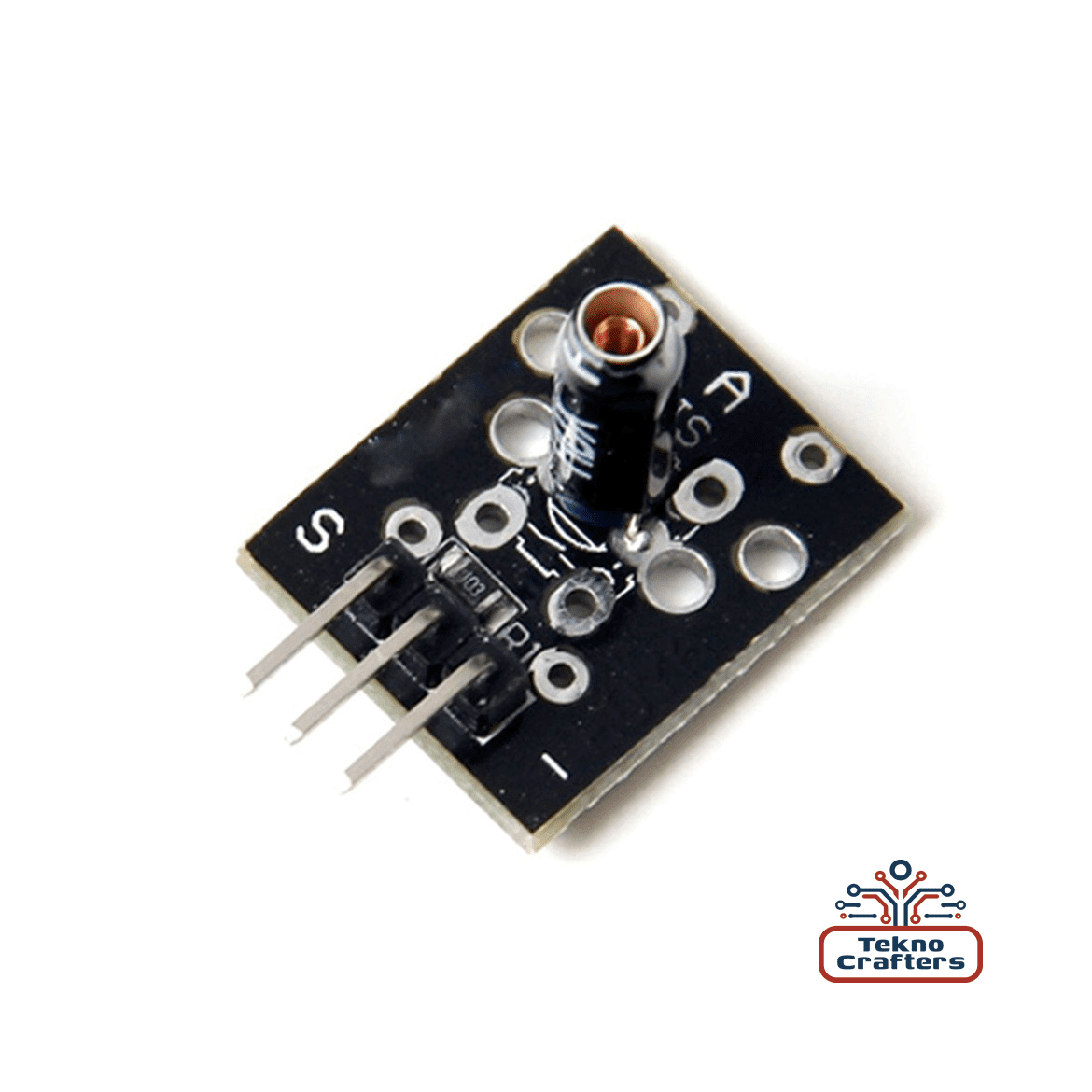

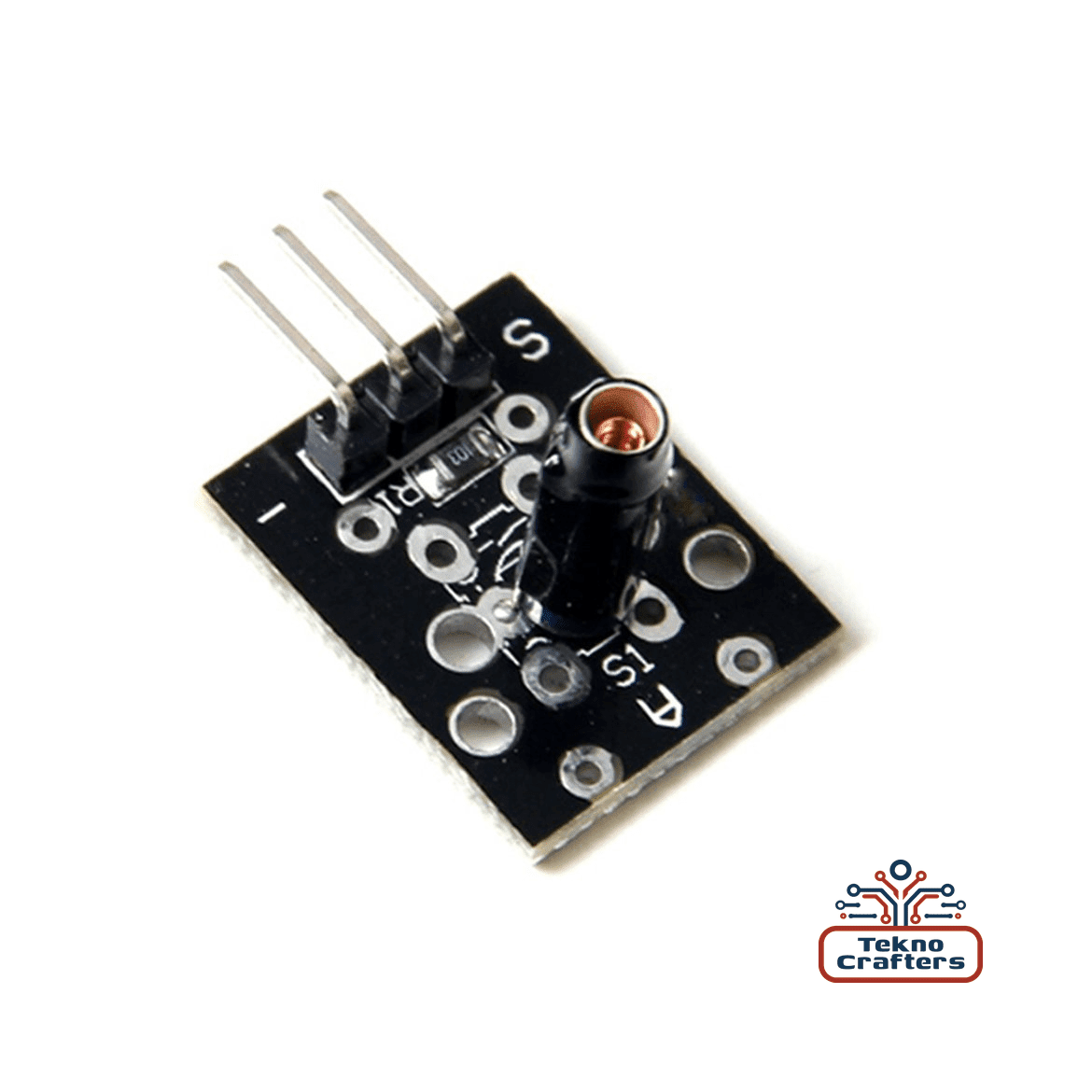

TeknoCrafters FA3032 Vibration Switch Module (KY-002 Class)
The TeknoCrafters FA3032 is a compact and reliable vibration switch module, modeled after the KY-002 platform. It utilizes a conductive spring mechanism to detect vibrations and shocks, providing a simple digital output signal. This module is ideal for applications requiring motion detection and is compatible with microcontrollers such as Arduino, ESP32, and ESP8266. For Raspberry Pi users, an external analog-to-digital converter (ADC) is necessary due to the lack of native analog input.
Tri-Tek Electronics, located in Mesa, Arizona, is an authorized distributor of TeknoCrafters products. We ensure full manufacturer warranty coverage, competitive pricing, and direct factory support. Our retail location serves customers in Phoenix, Chandler, Tempe, Gilbert, Scottsdale, Glendale, and surrounding areas.
Features
-
Sensor Type: Conductive spring vibration switch (SW-18015P)
-
Operating Voltage: 3.3V to 5V
-
Output Type: Digital signal (High/Low)
-
Current Consumption: Less than 10mA
-
Operating Temperature Range: -10°C to +100°C
-
Dimensions: Approximately 18.5mm x 15mm x 5mm
-
Pin Configuration:
Example Applications
-
Security Systems: Detect unauthorized movements or tampering.
-
Vibration Monitoring: Monitor machinery or equipment for unusual vibrations.
-
Interactive Projects: Trigger events in response to physical interactions.
-
DIY Electronics Projects: Integrate into custom Arduino projects for motion detection.
-
Educational Tools: Demonstrate principles of vibration detection in physics experiments.
Installation Example
In a typical Arduino setup, connect the FA3032 module as follows:
This configuration allows the Arduino to read digital signals corresponding to vibrations or shocks, enabling real-time monitoring and control in various applications.
