Description

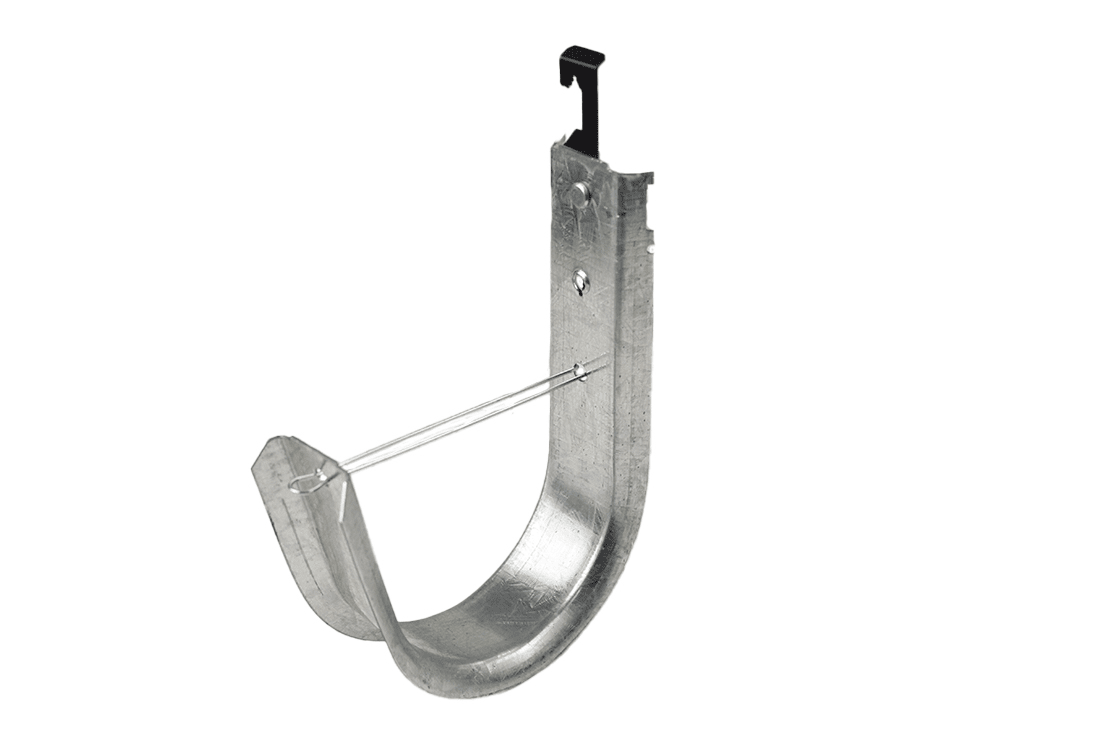

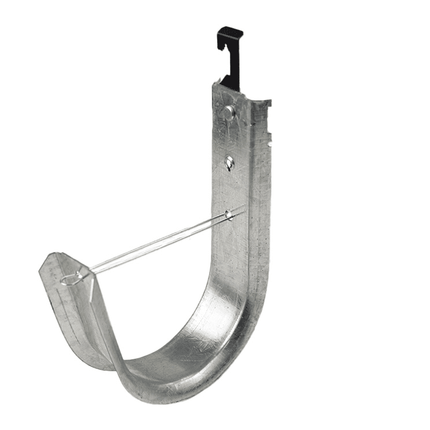

Vertical Cable 048‑146/40W 4‑Inch J‑Hook with Wing for ¼‑Inch Rod
Overview
The Vertical Cable model 048‑146/40W is a 4‑inch J‑Hook featuring a wing for mounting on a ¼‑inch rod. Constructed from pre‑galvanized steel with a rust‑resistant zinc coating, it provides strong, reliable support for structured cabling systems. Designed to meet the needs of installers handling moderate to large cable bundles, this hook is ideal for use in overhead and rod-mounted cable management applications.
Key Features
| Feature |
Details |
| Product Type |
4‑inch J‑Hook with Wing for ¼‑inch Rod |
| Material |
Pre‑Galvanized Steel with Rust‑Resistant Zinc Coating |
| Mounting Style |
Wing design for ¼‑inch rod |
| Thickness |
0.05 in (≈ 1.35 mm) |
| Weight |
0.46 lbs |
| Load Capacity |
60 lbs |
Estimated Capacity for Cat 6 Cables
-
Designed to support up to 60 lbs of cable load
-
Approximate capacity for Cat 6 cables: 110 to 130 cables, depending on cable diameter and bundling technique
-
Provides proper spacing to maintain bend radius and minimize performance loss
Typical Applications / Usage Scenario
-
Ideal for use in structured cabling installations in commercial, residential, and industrial environments
-
Frequently used to support Cat 6 and other low-voltage cables in data centers, telecom rooms, and ceiling-mounted systems
-
Mounts directly to ¼‑inch threaded rods for overhead routing or grid support in open ceiling infrastructure
Installation Notes
-
Attach the wing securely to a ¼‑inch rod using proper hardware
-
Ensure cables are seated within the hook to avoid stress or sharp bends
-
Do not exceed the 60 lbs weight rating—factor in slack and potential future cable additions
-
Follow standard spacing practices for hook installations, typically every 4–5 feet depending on cable weight and type
Advantages
-
Durable steel body ensures long-term strength and reliability
-
Zinc coating offers corrosion resistance for extended life
-
Wing mounting style provides flexible installation for rod-based supports
-
Supports large bundles of Cat 6 cabling while maintaining cable integrity and organization
Considerations
-
Using shielded or extra-thick cables will reduce the number of cables supported
-
Always evaluate your cable routing plan to avoid overfilling or stressing hook capacity
-
Periodic inspection of installed hooks is recommended in high-use environments
Tri‑Tek Electronics Note: Tri‑Tek Electronics is an authorized distributor of Vertical Cable products. We provide full manufacturer warranty coverage, factory support, and competitive pricing. This item is in stock at our Mesa, AZ retail location and available for same-day pickup or fast local delivery throughout Phoenix, Tempe, Chandler, Gilbert, Scottsdale, Glendale, and surrounding areas.
Product Specifications (Summary)
-
SKU / Model: 048‑146/40W
-
Type: 4‑inch J‑Hook with Wing (for ¼‑inch rod)
-
Material: Pre‑Galvanized Steel, Zinc Coated
-
Thickness: 0.05 in (≈ 1.35 mm)
-
Weight: 0.46 lbs
-
Load Capacity: 60 lbs
-
Estimated Cable Capacity (Cat 6): ~110 to 130 cables
