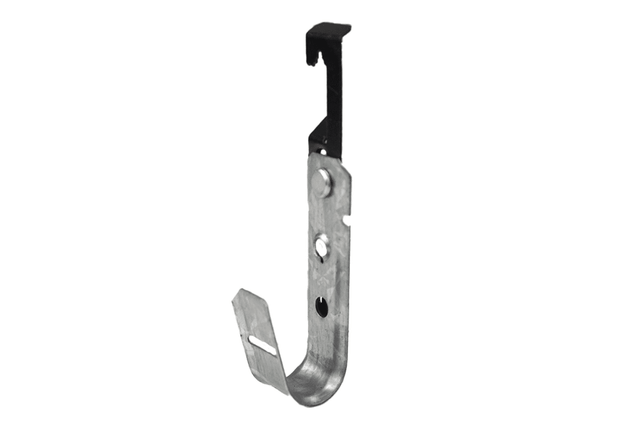

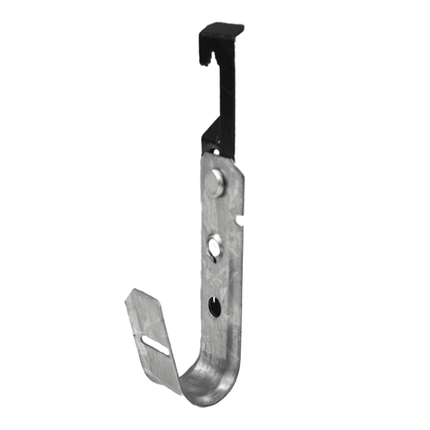

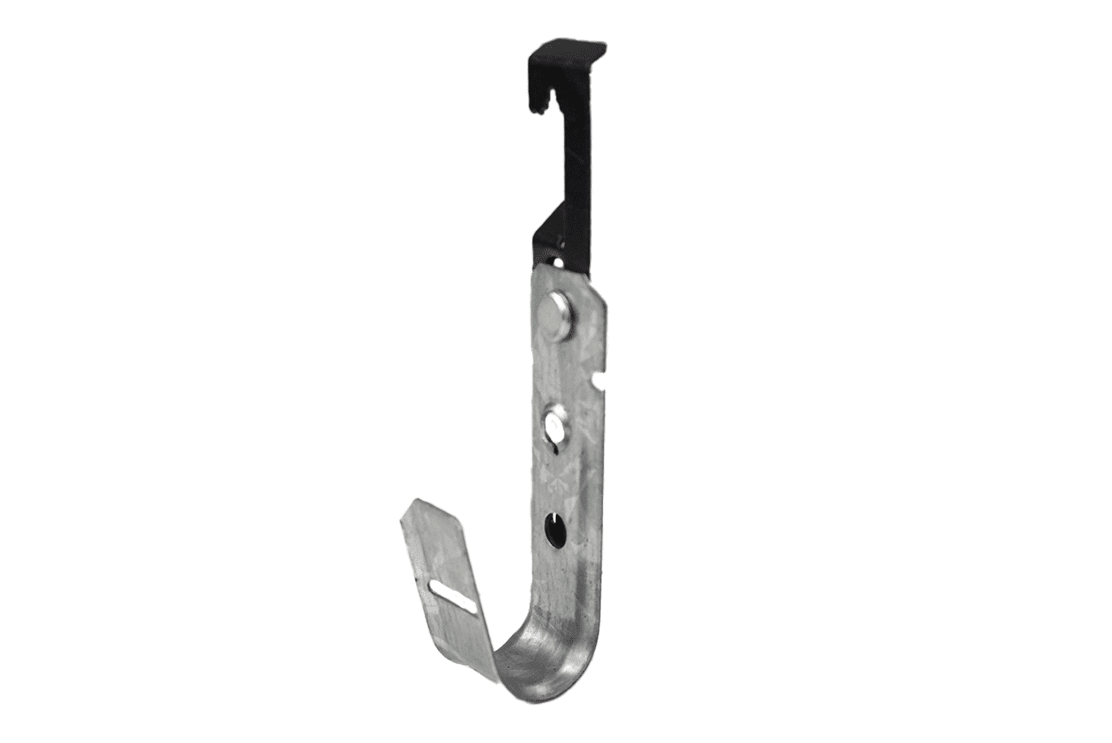

Vertical Cable 048‑143/34W 3/4‑inch J‑Hook with Wing for 1/4‑inch Rod
Overview
The Vertical Cable model 048‑143/34W is a ¾‑inch J‑Hook with wing attachment designed for use with a ¼‑inch rod. It is made of pre‑galvanized steel with rust‑resistant zinc plating. Ideal for cable support applications requiring moderate load capacity while preserving cable integrity and keeping installations neat.
Key Features
| Feature |
Detail |
| Type |
¾‑inch J‑Hook with Wing for ¼‑inch Rod |
| Material |
Pre‑Galvanized Steel with Rust‑Resistant Zinc Coating |
| Thickness |
0.05 in (≈ 1.35 mm) |
| Load Capacity |
60 lbs |
| Attachment Method |
Can be attached via beam clamps or mounted via rod or similar hardware; includes wing for ¼‑inch rod |
Capacity for Cat 6 Cables
-
The manufacturer rates the load capacity at 60 lbs.
-
Exact number of Cat 6 cables that can be supported depends on outer diameter of cables and how tightly bundled.
-
As a rough estimate: Given the load and size, this J‑Hook could support around 35‑45 Cat 6 cables safely, allowing some margin (i.e. not fully packing to its max mechanical capacity) so cables are not bent or stacked too tightly.
Applications / Usage Scenario
-
Useful in structured cabling systems where cables must be routed overhead, routed along ceilings, or supported on rods.
-
Fits well in telecom rooms, data closets, or anywhere a rod infrastructure is used for cable management.
-
Helps maintain separation, bend radius, and support for network, security, control, or thermostat cables.
Installation Notes
-
Mount the wing onto a ¼‑inch rod to utilize the hook properly.
-
Ensure that the hook is installed so cables rest in the bottom of the hook and are not forced into sharp bends.
-
Do not exceed the 60 lbs rating in aggregate; factor in weight of all cables plus any slack or future additions.
-
Maintain spacing between support points in accordance with standards (e.g. rods or beams every few feet) so weight is distributed.
Advantages
-
Good strength and moderate load capacity in a relatively compact form.
-
Steel construction is robust; galvanized + zinc coating helps resist corrosion.
-
Winged design for rod makes mounting flexible in many infrastructure layouts.
Considerations
-
If many Cat 6 cables are being routed (or shielded / larger jacketed variants), the actual safe load may be lower.
-
Frequent cable additions or heavy bundles may push near capacity; planning ahead is helpful.
-
Inspect installed hook periodically for signs of deformation or corrosion.
Tri‑Tek Electronics Note: Tri‑Tek Electronics is an authorized distributor of Vertical Cable products. We guarantee full manufacturer warranty coverage, best pricing, and expert factory support. Our Mesa, AZ location stocks this J‑Hook for pickup or fast local delivery throughout Phoenix, Tempe, Chandler, Gilbert, Scottsdale, Glendale, and surrounding Arizona areas.
Product Specifications (Summary)
-
SKU / Model: 048‑143/34W
-
Type: ¾‑inch J‑Hook with Wing for ¼‑inch rod
-
Material: Pre‑galvanized steel with zinc coating
-
Thickness: 0.05 in (1.35 mm)
-
Load Capacity: 60 lbs
-
Estimated Cable Capacity (Cat 6): ~35‑45 cables
-
Mounting: Wing for ¼‑inch rod; also usable with beam clamps in many setups
