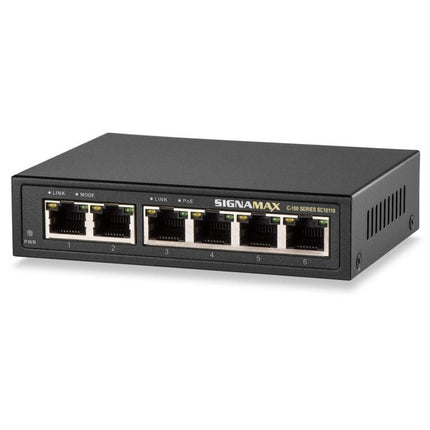

Signamax SC10110 4-port Gigabit PoE+ LAN Switch

Signamax SC10110 4-port Gigabit PoE+ LAN Switch

The SignaMax SC10110, known as the C-100 4 Port Gigabit PoE+ Switch, is a compact and efficient solution designed to meet the networking needs of various environments. Its key features and specifications include:

  • Connectivity: This switch is equipped with 4 RJ-45 downlink ports, each supporting 10/100/1000 Mbps. It also features 2 Gigabit uplink ports and 4 PoE ports.
  • Power over Ethernet (PoE): The switch has a PoE budget of 60W and supports IEEE 802.3af/IEEE802.3at on each port with dynamic power allocation, delivering up to 60W PoE with PoE+ support.
  • Performance: It offers a switching capacity of 12Gbps and a forward rate of 8.9Mpps. The switch can handle 4K MAC addresses and comes with a 4Mb packet buffer. It also supports 10K jumbo frames and wirespeed forwarding.
  • Layer 2 Standards: It complies with various IEEE standards such as IEEE 802.3 10BaseT, 802.3u 100BaseTX, 802.3ab 1000BaseT, among others. SFP ports are compatible with IEEE 802.3u and 802.3z standards.
  • Electrical Characteristics: The switch's maximum power consumption is 65W, and it includes a 65W internal power supply with an AC input of 100 – 240 V AC, 50/60 Hz. The MTBF (Mean Time Between Failures) is 100K hours.
  • Physical Characteristics: It measures 4.2” W x 3.4” D x 1.1” H, weighs 0.55 lb, and features a fanless design for silent operation.
  • Environmental Requirements: Suitable for operating temperatures of 14 to 131°F and storage temperatures of -4 to 158°F, with an operating/storage humidity range of 5 to 95% (non-condensing).
  • Certifications and Warranty: The switch is certified with CE Mark, FCC Part 15 Class B, VCCI Class B, and meets the CE/LVD EN60950 safety standards. It comes with a five-year warranty, including the power supply.

Ideal for small businesses, home offices, or educational institutions, the SignaMax SC10110 switch can be used to connect and power devices like IP cameras, VoIP phones, and wireless access points, thanks to its PoE capability. The compact and silent nature of this switch makes it suitable for environments where space saving and noise reduction are priorities.

As an authorized distributor, Tri-Tek Electronics assures customers that the SignaMax SC10110 is offered with full manufacturer warranty coverage, the best pricing, and comprehensive factory support​.

Product form

Signamax SC10110 4-port Gigabit PoE+ LAN Switch  The SignaMax SC10110, known as the C-100 4 Port Gigabit PoE+ Switch, is a... Read more

Free local pickup in our store

SKU: SIGFO-SC10110

Temporarily Out of stock

$180.00 $128.57

  •  Restock is coming soon!

Signamax SC10110 4-port Gigabit PoE+ LAN Switch

The SignaMax SC10110, known as the C-100 4 Port Gigabit PoE+ Switch, is a compact and efficient solution designed to meet the networking needs of various environments. Its key features and specifications include:

  • Connectivity: This switch is equipped with 4 RJ-45 downlink ports, each supporting 10/100/1000 Mbps. It also features 2 Gigabit uplink ports and 4 PoE ports.
  • Power over Ethernet (PoE): The switch has a PoE budget of 60W and supports IEEE 802.3af/IEEE802.3at on each port with dynamic power allocation, delivering up to 60W PoE with PoE+ support.
  • Performance: It offers a switching capacity of 12Gbps and a forward rate of 8.9Mpps. The switch can handle 4K MAC addresses and comes with a 4Mb packet buffer. It also supports 10K jumbo frames and wirespeed forwarding.
  • Layer 2 Standards: It complies with various IEEE standards such as IEEE 802.3 10BaseT, 802.3u 100BaseTX, 802.3ab 1000BaseT, among others. SFP ports are compatible with IEEE 802.3u and 802.3z standards.
  • Electrical Characteristics: The switch's maximum power consumption is 65W, and it includes a 65W internal power supply with an AC input of 100 – 240 V AC, 50/60 Hz. The MTBF (Mean Time Between Failures) is 100K hours.
  • Physical Characteristics: It measures 4.2” W x 3.4” D x 1.1” H, weighs 0.55 lb, and features a fanless design for silent operation.
  • Environmental Requirements: Suitable for operating temperatures of 14 to 131°F and storage temperatures of -4 to 158°F, with an operating/storage humidity range of 5 to 95% (non-condensing).
  • Certifications and Warranty: The switch is certified with CE Mark, FCC Part 15 Class B, VCCI Class B, and meets the CE/LVD EN60950 safety standards. It comes with a five-year warranty, including the power supply.

Ideal for small businesses, home offices, or educational institutions, the SignaMax SC10110 switch can be used to connect and power devices like IP cameras, VoIP phones, and wireless access points, thanks to its PoE capability. The compact and silent nature of this switch makes it suitable for environments where space saving and noise reduction are priorities.

As an authorized distributor, Tri-Tek Electronics assures customers that the SignaMax SC10110 is offered with full manufacturer warranty coverage, the best pricing, and comprehensive factory support​.
