Intellinet 530347 8-Port Gigabit Metal Ethernet Switch
The Intellinet 8-Port Gigabit Ethernet Switch (Model 530347) is designed to offer high-speed performance and reliable operation for home or small office environments. Its key features and specifications include:
-

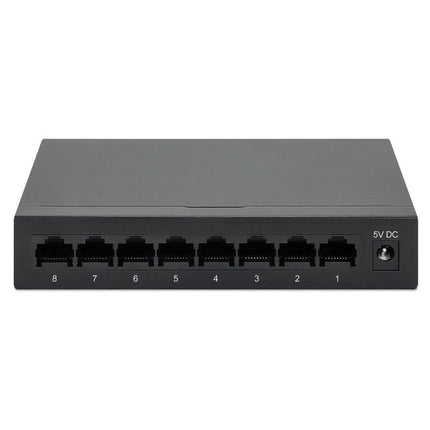

Ports: It has 8 auto-sensing 10/100/1000 Auto MDI-X ports which automatically detect optimal network speeds.
-
Performance: The switch operates in both half and full duplex modes, ensuring high performance with zero packet loss. It also supports full flow control for optimum performance.
-
Energy Efficiency: It incorporates IEEE 802.3az (Energy Efficient Ethernet) standards, making it energy efficient.
-
Plug and Play: The switch is easy to install with auto-learning capabilities, requiring no configuration. The Auto-MDI/MDI-X crossover on all ports eliminates the need for crossover cables.
-
Technology Standards: The device conforms to various IEEE standards, including IEEE 802.3 (10Base-T Ethernet), IEEE 802.3u (100Base-TX Fast Ethernet), and IEEE 802.3ab (Gigabit Ethernet).
-

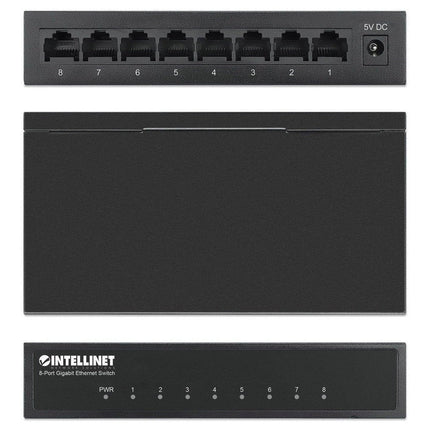

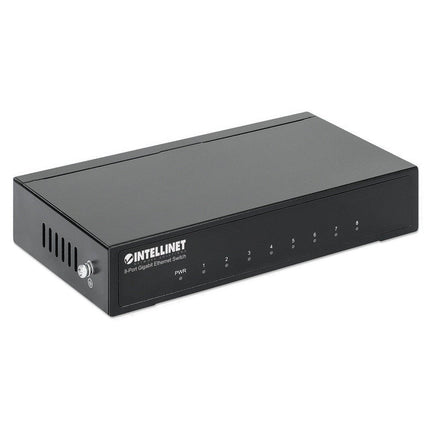

Physical Design: It has a fanless design for silent operation and a rugged metal housing for durability. Its dimensions are 140 (W) x 76 (L) x 28 (H) mm.
-
Environmental Conditions: Suitable for operating temperatures of 0 – 40°C and humidity levels of 10 – 90% RH, non-condensing.
-
Power Requirements: It has a DC input of 5 V, 1 A and a maximum power consumption of 2.75 watts.
The switch also supports jumbo frames up to 9 Kbytes, employs a store and forward switching architecture, and provides non-blocking wire-speed forwarding and filtering. Additionally, it is fully NDAA-compliant and comes with a three-year warranty.
For the installation scenario, the Intellinet 8-Port Gigabit Ethernet Switch can be ideal in small office settings where multiple devices such as computers, printers, and servers need to be networked. It's particularly beneficial in situations requiring high-speed data transfers, such as in graphic design firms or small data centers where disk mirroring, data backup, or extensive file transfers are common.
This product, as a part of Tri-Tek Electronics' offerings, comes with the assurance of being an authorized distributor product, ensuring full manufacturer warranty coverage, best pricing, and factory support.
