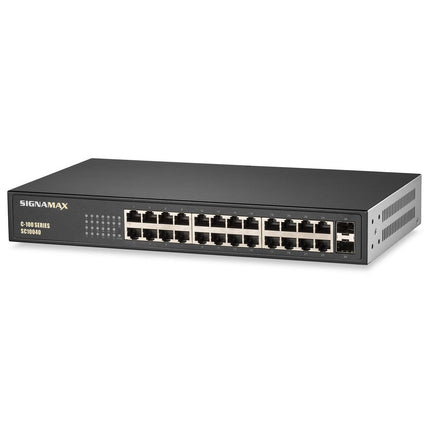

Signamax SC10040 24-Port Gigabit Switch with 2 x SFP Ports
The Signamax SC10040 24-Port Gigabit Switch is a high-performance, unmanaged switch designed for larger network environments, providing reliable and scalable connectivity for businesses or installations requiring extensive port options. This switch comes equipped with 24 Gigabit Ethernet ports and 2 dedicated SFP ports, enabling easy integration with fiber optic networks for extended transmission distances. The SC10040 delivers impressive performance, supporting full-duplex operation on all ports, with auto-negotiation and auto MDI/MDI-X, making it a perfect choice for businesses looking to upgrade their network infrastructure for increased efficiency and speed.
Constructed with a robust metal housing, this switch is built for long-lasting performance and durability. Its plug-and-play design ensures quick setup without the need for additional configuration, making it ideal for IT technicians or installers who need to deploy the switch in various environments such as offices, schools, or data centers. The switch supports advanced features such as jumbo frames and Quality of Service (QoS) to prioritize critical traffic, ensuring optimal performance for latency-sensitive applications like VoIP or video conferencing.
Key Features:
-
24 Gigabit Ethernet Ports: Supports 10/100/1000 Mbps per port for high-speed network connections.
-
2 SFP Ports: Provides support for fiber connections, allowing network expansion over long distances.
-
Full-Duplex Operation: Enables data transmission at speeds of up to 2000 Mbps per port.
-
Auto MDI/MDI-X: Eliminates the need for crossover cables by automatically detecting cable types.
-
Jumbo Frame Support: Increases throughput by allowing larger data packets, reducing overhead and enhancing network performance.
-
Quality of Service (QoS): Prioritizes critical network traffic for enhanced performance in real-time applications like VoIP and streaming.
-
Plug-and-Play: No configuration required for easy deployment.
-
Metal Housing: Rugged construction ensures durability in demanding environments.
-
LED Indicators: Provides visual status updates for power, link, and activity on each port.
Installation Example:
The Signamax SC10040 is perfect for businesses or organizations that require a robust and scalable network backbone. For instance, in a school or medium-sized office, this switch can be used to connect multiple computers, printers, and servers into a centralized network, providing reliable Gigabit speeds across all devices. The two SFP ports allow integration with fiber-optic cabling to connect to remote locations, such as other buildings or floors, making it ideal for large campuses or multi-floor offices. Simply rack-mount the switch and connect your devices with standard Ethernet cables, and the switch will automatically configure itself to optimize network performance.
Specifications:
-
Ports: 24 x RJ45 10/100/1000 Mbps + 2 x SFP (mini-GBIC) slots
-
Data Transfer Rate: Up to 2000 Mbps per port in full-duplex mode
-
Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z
-
Switching Capacity: 52 Gbps
-
MAC Address Table: 8K MAC addresses
-
Jumbo Frames: Supports up to 9K bytes
-
Quality of Service (QoS): IEEE 802.1p for traffic prioritization
-
Dimensions: 440 mm x 180 mm x 44 mm
-
Power Supply: Internal power supply
-
Weight: 3.2 kg (7.05 lb)
-
Mounting: Rack-mountable (1U)
-
Operating Temperature: 0°C to 40°C (32°F to 104°F)
Benefits for Installers and Technicians:
-
Scalability: The 24 ports provide ample connections for growing networks, with two SFP slots for fiber expansion.
-
Simple Deployment: The plug-and-play design makes installation quick and easy, reducing setup time for technicians.
-
Durability: The rugged metal housing ensures the switch can withstand harsh environments like network closets or server rooms.
-
High Performance: Full-duplex Gigabit speeds and jumbo frame support make this switch an excellent choice for businesses with high data throughput needs.
Tri-Tek Electronics is an authorized distributor of Signamax products, offering full manufacturer warranty coverage, best pricing, and factory support. Visit our retail location in Mesa, AZ, or contact us for more information.
