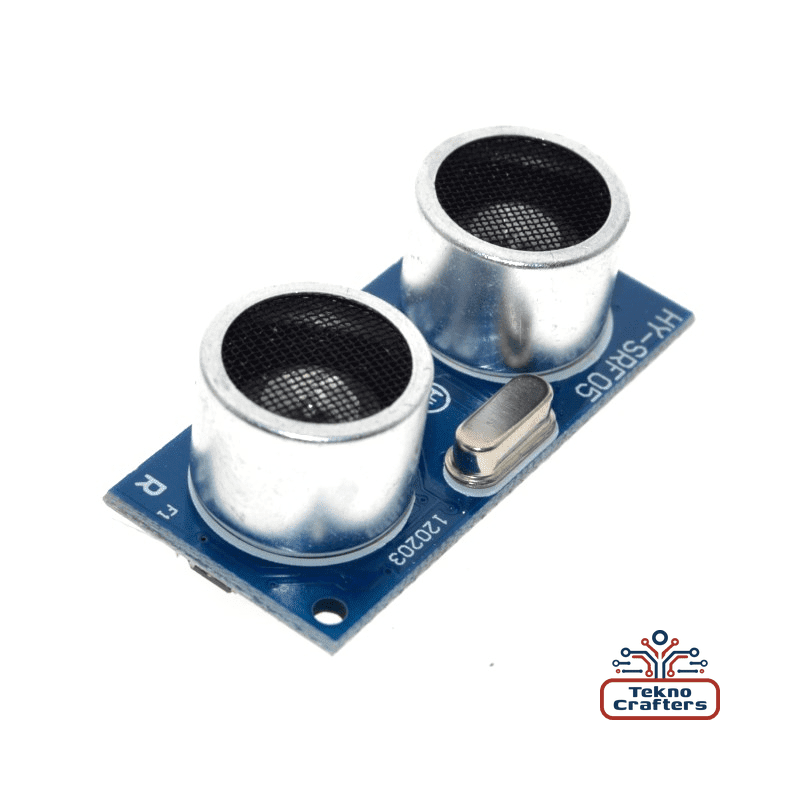

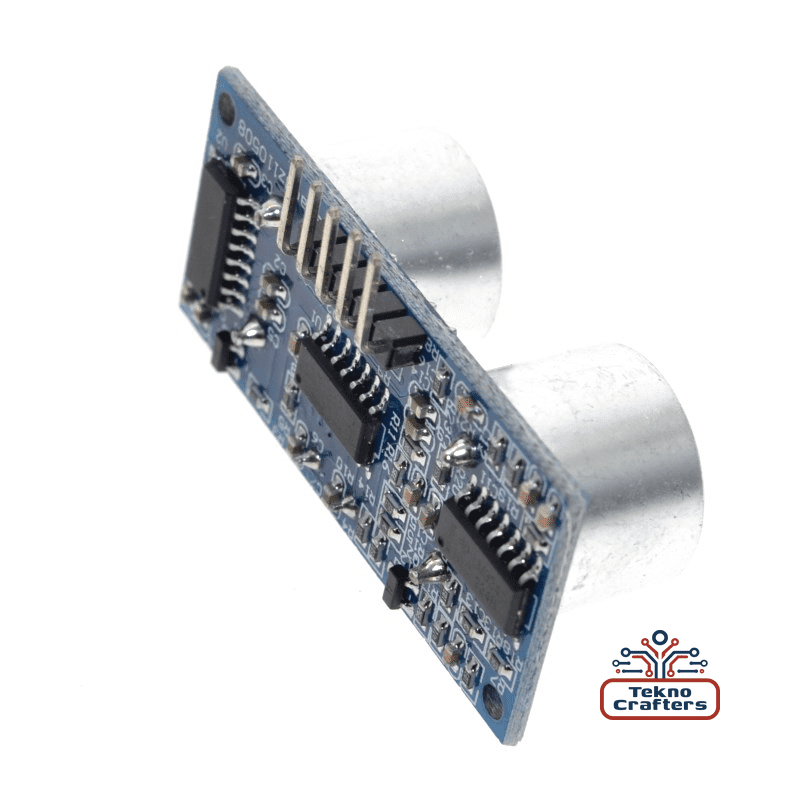

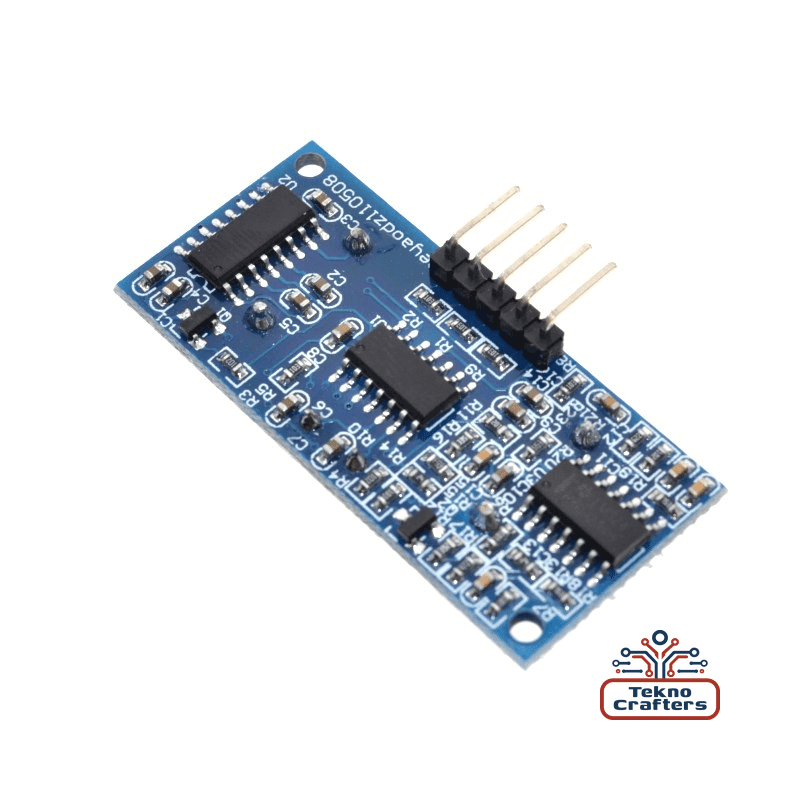

TeknoCrafters FA3006-3 HY-SRF05 Ultrasonic Sensor Module – 4-Pin GPIO, 5V Logic
The TeknoCrafters FA3006-3 HY-SRF05 is a precision ultrasonic sensor module designed for non-contact distance measurement in embedded and robotic systems. Operating at 40 kHz, this module offers accurate and reliable readings across a broad detection range, making it a perfect fit for obstacle avoidance, autonomous navigation, and object detection applications. Its flexible 4-pin GPIO configuration supports seamless integration with microcontrollers like Arduino, Raspberry Pi, and other embedded platforms.
Tri-Tek Electronics, located in Mesa, AZ, is an authorized distributor of TeknoCrafters products, including the HY-SRF05 ultrasonic module. Purchase from Tri-Tek to receive full manufacturer warranty coverage, expert support, and competitive pricing tailored for Arizona installers and hobbyists.
Key Features:
-
Operating Voltage: 4.5V to 5.5V DC
-
Detection Range: 2 cm to 450 cm (0.8" to 14.7 ft)
-
Accuracy: ±3 mm
-

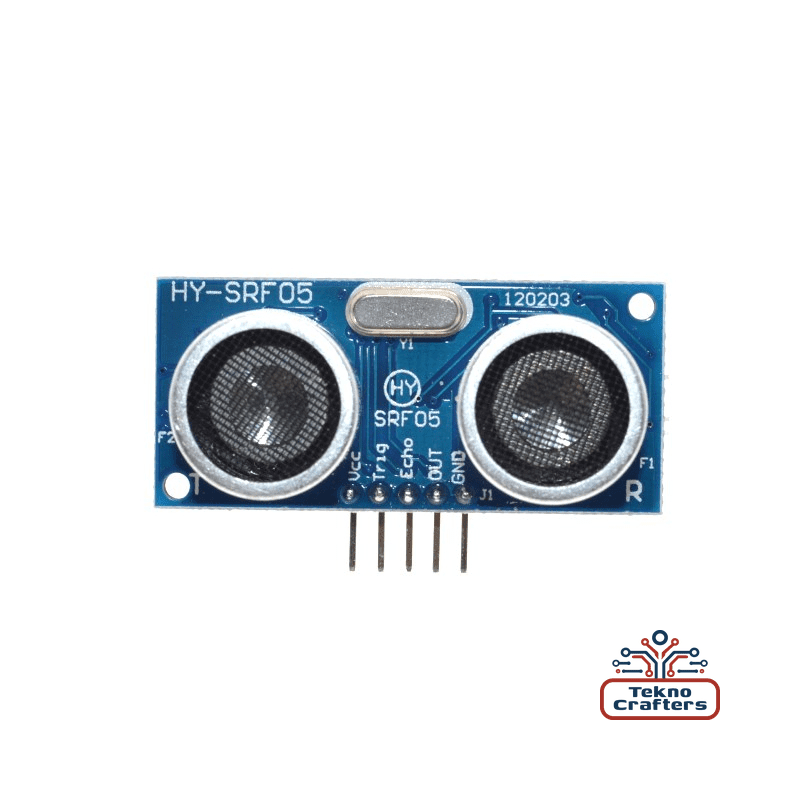

GPIO Interface: 4-pin header (VCC, TRIG, ECHO, GND)
-
Operating Frequency: 40 kHz
-
Low Standby Current: <2 mA
-
Detection Angle: ≤15 degrees
-
Compact Design: 45 mm x 20 mm x 15 mm
-
Dual Mode Support: Can be used in either single-pin or dual-pin trigger/echo mode for compatibility with a wide range of controllers
Example Installation Scenario:
For autonomous robotics, the HY-SRF05 sensor can be mounted on a mobile robot platform to continuously scan for objects in its path. By measuring the time interval between ultrasonic pulse emission and echo reception, the robot determines the proximity of obstacles and adjusts its path accordingly. Whether navigating tight indoor corridors or avoiding collisions in dynamic environments, this sensor enables responsive, real-time decision-making.
