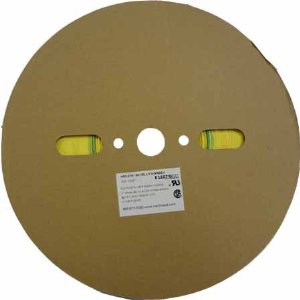

NTE 47‑100100‑Y Thin Wall Heat‑Shrink Tubing – 3/64″ Diameter Yellow, 100′ Spool – Closeout Special
Overview
NTE 47‑100100‑Y is a professional-grade 3/64″ (0.047″) ID yellow thin-wall heat-shrink tubing supplied on a 100-foot spool. Engineered from flame-retardant polyolefin with a 2:1 shrink ratio, this tubing is ideal for insulation, identification, protection, and strain-relief applications in wiring and harness assemblies. This item is designated as a Closeout Special, with availability limited to stock on hand.
Key Features & Benefits
-
Thin-wall polyolefin construction offers superior flexibility and excellent recovery performance
-
Shrinks to approximately 0.024″ ID at temperatures above 90 °C to fit snugly over connectors and bare wire
-
Operating temperature capacity from approximately –55 °C to 135 °C, ensuring endurance in demanding environments
-
Meets UL224, CSA C22.2 No.198.1, MIL‑DTL‑23053/5 Class 2 & 3 requirements; rated VW‑1 (flame retardant)
-
Flame-resistant and fluid-resistant, suitable for industrial, military-style, and professional installations
-
Ideal for wire color-coding, terminal insulation, cable bundling, and environmental protection
Product Details
Part Number: 47‑100100‑Y
Color: Yellow
Diameter (Expanded): 0.047″ (1.19 mm)
Diameter (Recovered): Approx. 0.024″ (0.61 mm)
Length: 100 ft (≈ 30.5 m)
Shrink Ratio: 2:1
Recovered Wall Thickness: Approx. 0.017″ (0.43 mm)
Material: Polyolefin (PO)
Certifications: UL 224, CSA, MIL‑DTL‑23053/5, VW‑1 flame rating
Use Case / Installation Scenario
Perfect for technicians wiring control panels or assembling wire harnesses where color-coded insulation and minimal bulk are desired. This tubing is also frequently used for strain relief on solder joints or terminal ends in tight enclosures. Its thin wall construction suits applications where space is limited but professional-grade protection is required.
Tri‑Tek Electronics – Closeout Special Notice
This part is offered as a Closeout Special, meaning quantities are limited to existing stock. Once sold out, availability may be discontinued. Tri‑Tek Electronics is an authorized distributor of NTE products, offering manufacturer warranty coverage and factory support. Our Mesa, AZ location ensures quick local access and professional service for customers in the Phoenix metro area—ideal for installers and technicians needing fast turnaround and technical reliability.
