Description

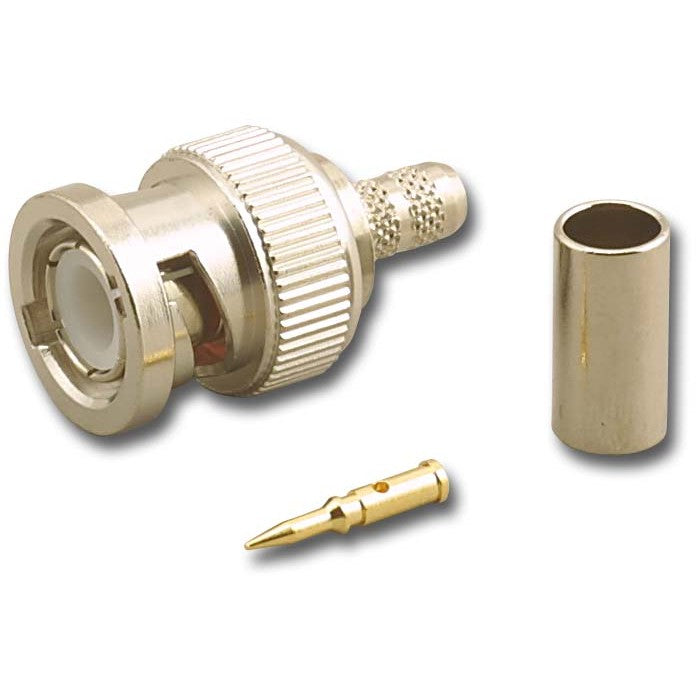

Pan Pacific BNC-3022-C BNC Crimp Plug for RG58C/U Cable – 1.1 mm Bore
The Pan Pacific BNC-3022-C is a professional-grade BNC male 3-piece crimp plug designed for use with RG58C/U coaxial cable. Featuring a 1.1 mm center pin bore, this connector provides precise conductor fit, dependable crimp retention, and consistent signal performance. It is well suited for CCTV, RF, broadcast, and general low-voltage coaxial applications where long-term reliability is required.
Tri-Tek Electronics is an authorized distributor of Pan Pacific products, ensuring full manufacturer warranty coverage, factory support, and best-in-class pricing.
Key Features
-
BNC male crimp plug configuration
-
3-piece design: connector body, ferrule, and center pin
-
Optimized for RG58C/U coaxial cable
-
1.1 mm center conductor bore for proper fit
-
Secure crimp-style termination
-
Nickel-plated body for corrosion resistance
-
50-ohm impedance for RF and video systems
Specifications
Typical Applications
-
Analog and HD CCTV camera systems
-
RF signal connections
-
Test and measurement equipment
-
Video distribution and monitoring systems
-
Amateur radio and communications projects
Installation & Usage Example
When terminating RG58C/U cable for a CCTV or RF run, the installer strips the cable to specification, crimps the 1.1 mm center pin onto the conductor, inserts the connector body, and crimps the ferrule securely. This results in a clean, professional BNC termination with excellent mechanical strength and minimal signal loss.
Why Buy from Tri-Tek Electronics
-
Authorized Pan Pacific distributor
-
Full manufacturer warranty and factory support
-
Trusted by professional installers and technicians
-
Convenient retail location in Mesa, AZ
-
Ideal for contractors, service technicians, and hobbyists
