The Jonard Tools OFI-50 Optical Fiber Identifier is a must-have tool for network professionals seeking efficient and non-disruptive fiber identification. Designed to quickly and accurately identify the direction of transmitted fiber and display relative core power, this optical fiber identifier enhances network maintenance without causing any damage to the fiber.
Key Features:

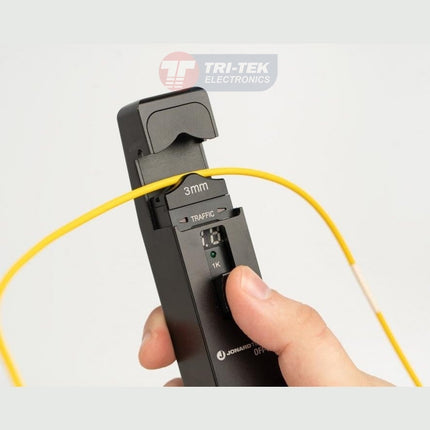

Direction Identification: With easy one-key operation, this tool efficiently identifies the traffic direction and frequency tone (270Hz, 1KHz, 2KHz) with audible warnings, making it a valuable asset for network troubleshooting.

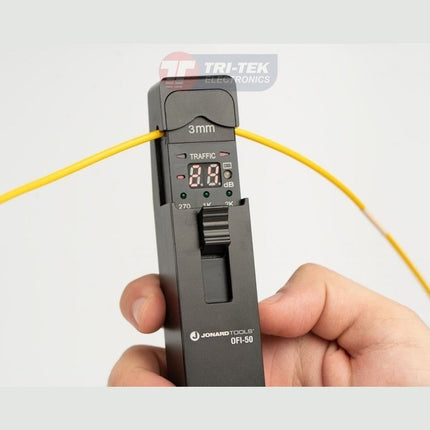

Clear Display: The intuitive display provides a clear view of the relative core power, ensuring accurate readings for better network management.

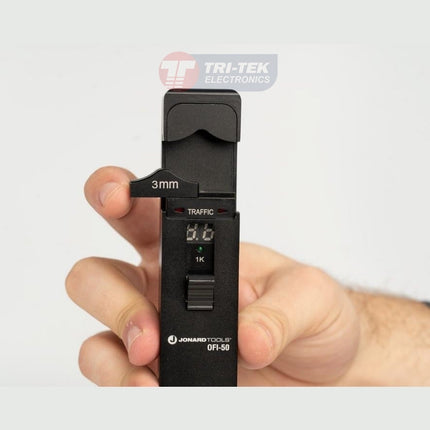

Versatile Adapters: The kit includes a range of adapters (3 mm, 2 mm, 900 nm, and 250 nm) to accommodate various fiber optic cable sizes, offering versatility in usage.

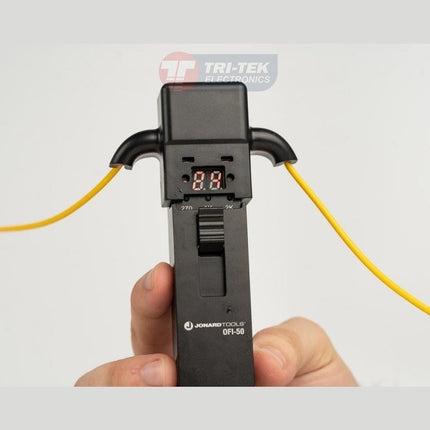

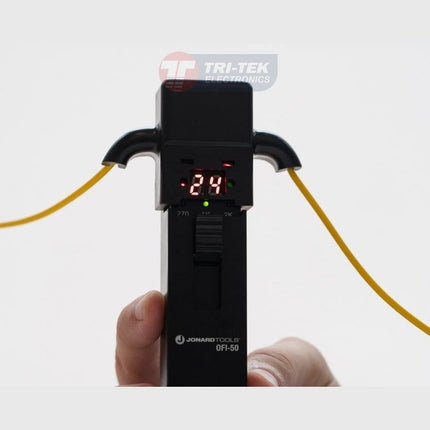

Sunshade Protection: The included sunshade protects the fiber optic cable from interference, ensuring precise readings even in challenging environments.
Durable Construction: Housed in a rugged metal casing, this optical fiber identifier is built for long life and durability, withstanding the demands of professional use.
Battery Indicator: Stay informed about battery status with the LED indicator, so you can replace the 9V battery as needed to keep your tool running smoothly.
Technical Specifications:
Identified Wavelength Range: 800-1700 nm
Identified Signal Type: CW, 270Hz±5%, 1kHz±5%, 2kHz±5%
Detector Type: Ø1mm InGaAs 2pcs
Adapter Type: Ø0.25 (Applicable for Bare Fiber), Ø0.9, Ø2.0, and Ø3.0
Signal Direction: Left & Right LED
Signal Direction Test Range: -46~+10 dBm (1310 nm, CW/0.9 mm bare fiber), -50~+10 dBm (1550 nm, CW/0.9 mm bare fiber)
Signal Frequency Display: 270 Hz, 1 kHz, 2 kHz
Insertion Loss: 0.8 dB (1310nm), 2.5 dB (1550nm)
Battery Type: 9V

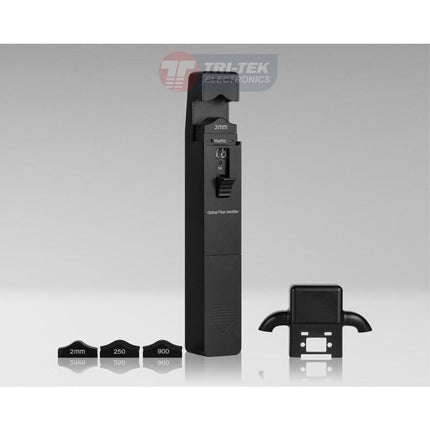

Kit Includes: Fiber Identifier, 3 mm, 2 mm, 900 nm, and 250 nm adapters, sunshade, and a convenient carrying pouch.
Discover the Jonard Tools OFI-50 Optical Fiber Identifier and take your network troubleshooting to the next level with this efficient and reliable tool.
