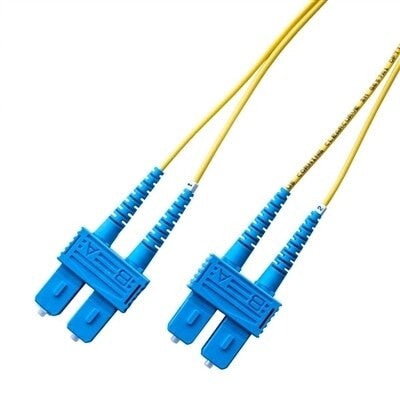

Lynn Electronics D-SU2SU2-SR2-002M 2-Meter OS2 Duplex SC-SC Fiber Optic Cable
The Lynn Electronics D-SU2SU2-SR2-002M is a high-performance 2-meter fiber optic patch cable designed for use in critical single mode fiber networks. It features OS2 9/125μm duplex fiber, ensuring minimal signal loss over extended distances, making it ideal for data centers, telecommunications infrastructure, and long-distance networking applications.
Key Features:
-
Connector Type: Male SC/UPC to Male SC/UPC duplex connectors
-
Fiber Classification: OS2 Single Mode, 9/125μm
-
Cable Length: 2 meters (6.6 feet)
-
Jacket Color: Yellow for easy identification of single mode cables
-
Construction: OFNR-rated riser jacket suitable for indoor installations
-
Bend-Insensitive Fiber: Uses Corning® ClearCurve technology to maintain optimal performance even in tight spaces
-
Standards Compliance: Complies with Telcordia GR-326-CORE, TIA/EIA-568-C.3, and IEEE802.3z standards
-
Return Loss: ≥55 dB, ensuring excellent signal integrity
-
Durability: Rated for over 500 mating cycles, with an operating temperature range from -20°C to 70°C (-4°F to 158°F)
-
Compliance: RoHS and REACH certified
Applications:
This cable is commonly deployed in high-speed networking environments such as 10Gbps, 40Gbps, and 100Gbps Ethernet connections. It is particularly well-suited for linking telecommunications equipment or patch panels where signal clarity and reliability are paramount.
Installation Scenario:
In a typical setup, this cable is used to connect networking switches to optical distribution frames or between different sections of a building's structured cabling system. Its robust construction and compliance with multiple standards ensure that installers can rely on it for consistent performance even in demanding environments, such as high-traffic data centers or enterprise campuses.
