Description

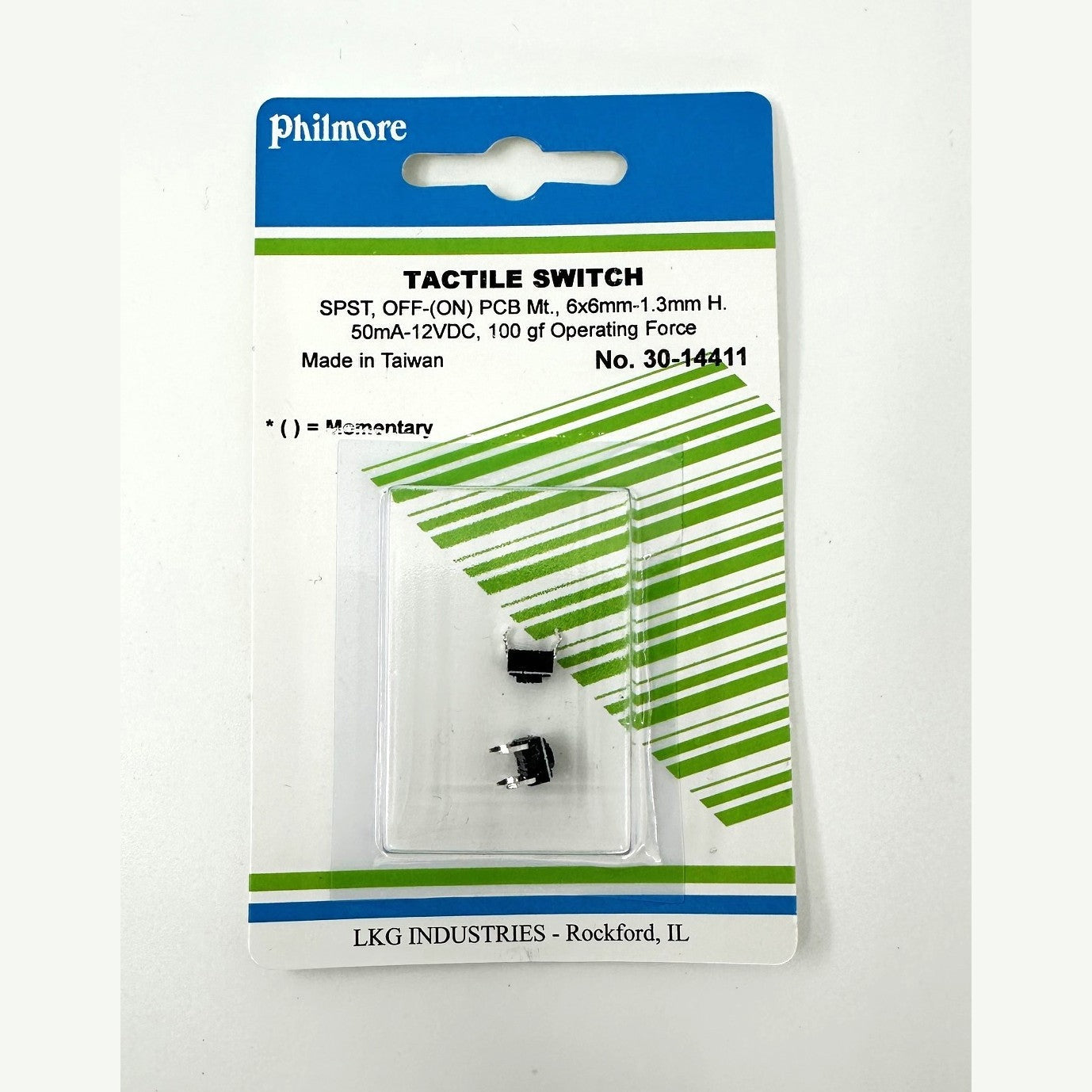

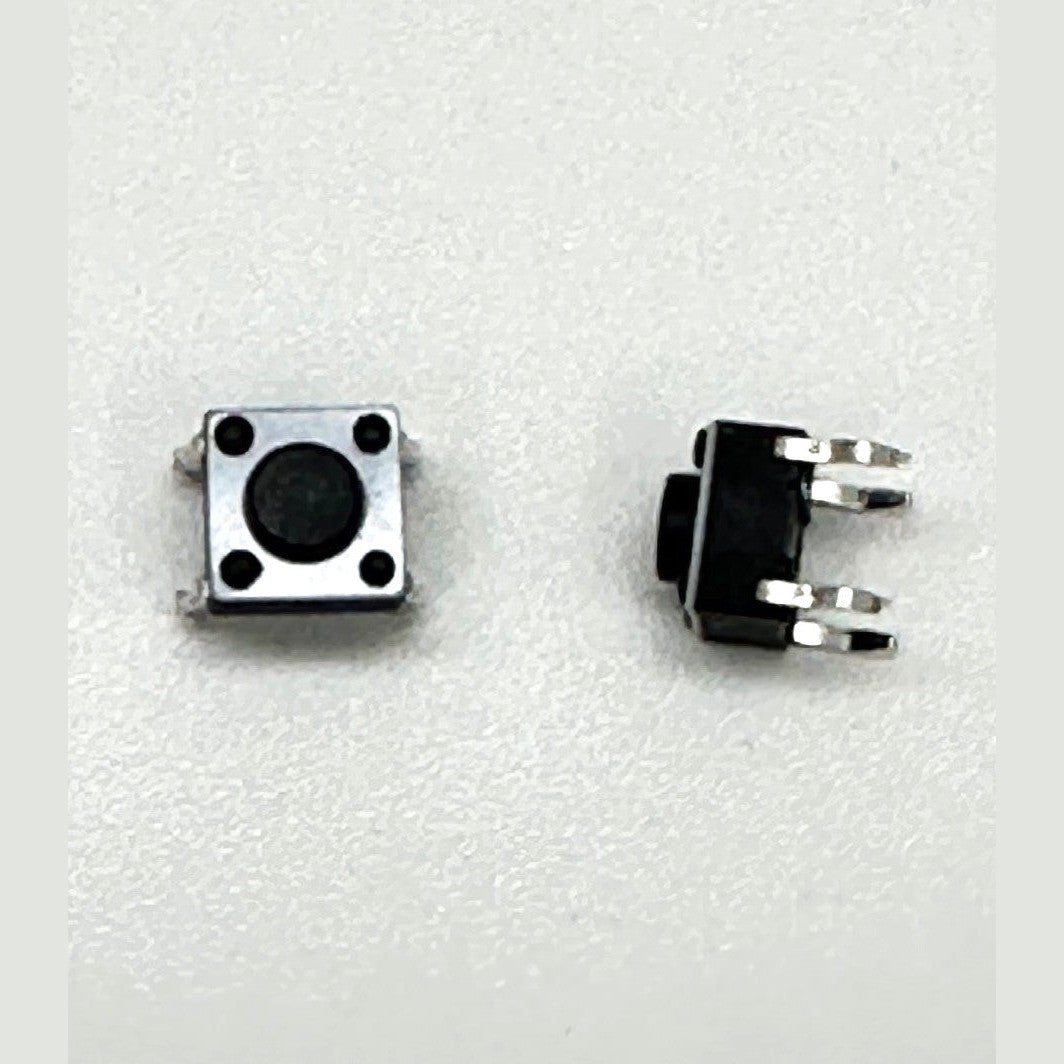

Philmore Mfg. 30‑14411 SPST OFF‑(ON) Printed‑Circuit Tactile Switch, 2/Pkg.
Product Features & Specifications
-
Switch Type: SPST (Single‑Pole Single‑Throw), momentary action—OFF‑(ON), normally open
-
Electrical Rating: 50 mA @ 125 V AC
-
Initial Contact Resistance: Maximum 100 Megohms
-
Insulation Resistance: Minimum 100 Megohms @ 500 VDC
-
Dielectric Strength: 250 V AC for 1 minute
-
Contact Material: Phosphor Bronze with Silver Cladding
-
Terminal Material: Brass with Silver Cladding
-
Housing Dimensions: 6 mm × 6 mm footprint, 4.5 mm height
-
Mounting Style: Through-hole PCB mount
-
Packaging: sold in 2-pack configuration, contact us for bulk pricing
Example Usage Scenario
Designed for reliability and ease of installation, the Philmore 30‑14411 tactile switch is ideal for technicians, engineers, and electronics hobbyists working on low-current control systems, test boards, and compact user interfaces. Its momentary OFF‑(ON) action provides a clear tactile response for use in reset circuits, user input points, and embedded device controls.
Tri‑Tek Electronics is an authorized distributor of Philmore products. We ensure full manufacturer warranty coverage, factory support, and the best local pricing. Visit our retail location in Mesa, AZ to purchase in person or for expert guidance. We proudly serve Phoenix, Mesa, Chandler, Tempe, Gilbert, Scottsdale, and Glendale.
