Description

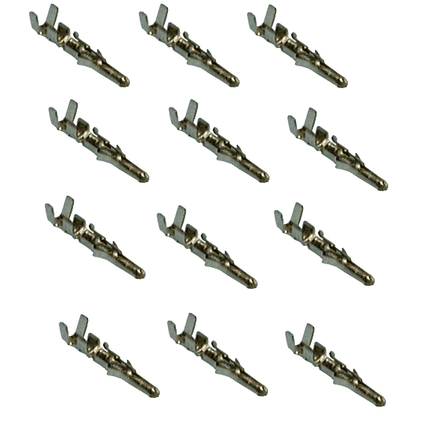

Philmore 61‑192 — Male Pin for .062″ Power Connector Housings (Bag of 50)
Overview
The Philmore 61‑192 is a bag of 50 male crimp pins designed specifically for .062-inch (1.57 mm) series power connector housings in the Philmore “61” series. These pins provide durable, modular connections for signal and low-current power applications, allowing easy assembly and maintenance in wiring systems.
Tri‑Tek Electronics is an authorized distributor of Philmore products, ensuring full manufacturer warranty coverage, factory-direct support, and trusted local supply for installers and technicians throughout Mesa, AZ and the greater Phoenix area.
Key Features & Specifications
-
Quantity: 50 male pins per package
-
Designed for use with .062″ Philmore power connector housings
-
Compatible with female sockets such as Philmore 61-182
-
Crimp-type terminal for secure mechanical and electrical connection
-
Typical wire compatibility: 24–20 AWG
-
Rated for up to 5 A, 250 V when used in the appropriate housing
-
Made from corrosion-resistant conductive alloy
-
Snap-in or press-fit into .062″ series plug-style housings
-
Fits multiple housing configurations: free-hanging, inline, or panel-mount
Application & Installation Notes
The 61-192 male pins are suited for custom wiring harnesses, electronics projects, control panels, and low-voltage signal applications where modularity and reliability are essential.
Installation Process:
-
Strip wire to the correct length for crimping.
-
Use a precision crimping tool compatible with .062" contacts to crimp the pin onto the wire.
-
Insert the pin into a .062" plug housing until it clicks into place.
-
Use the corresponding female sockets and housings for a full connector setup.
-
For disassembly or maintenance, use an appropriate pin extraction tool.
These pins allow for highly flexible connector assembly, giving installers the ability to create plug-and-play solutions for control and instrumentation circuits.
Example Use Scenario
A field technician building a four-circuit detachable connection for a remote sensor harness may choose a 4-position .062" plug housing and install four 61-192 male pins onto the leads. This setup allows quick replacement or servicing of the sensor unit without disturbing permanent wiring.
Why Choose This Product?
-
Delivers modular connectivity for low-current electrical systems
-
Compatible across the complete Philmore .062 connector series
-
Easy to install and service with standard crimp tools and extraction tools
-
Packaged in convenient 50-piece quantity for production or field service
-
Fully supported by Tri-Tek Electronics — Mesa, AZ’s trusted source for Philmore components
