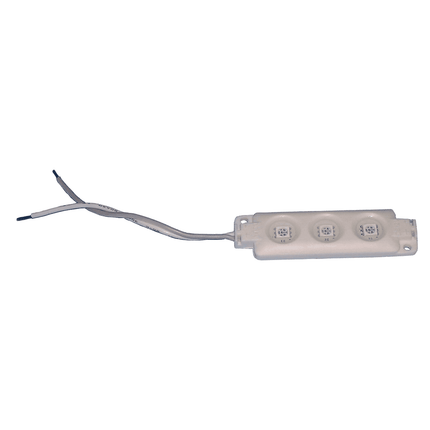

Philmore 11-2938 - Hi-Bright 3 LED Light Module - Green
Product Overview
The Philmore 11-2938 is a high-brightness light module featuring three green LEDs, designed for use with a 12V DC power supply. This module is constructed with durable ABS plastic housing and a transparent epoxy seal, ensuring robust performance and excellent light distribution.
Features and Specifications
-
Color: Green
-
Number of LEDs: 3 (SMD5050)
-
Input Voltage: DC 12V
-
Current Draw: 0.0453A
-
Projection Distance: Approximately 1 meter
-
Luminous Flux: 42.948 lm
-
Lighting Efficiency: >80%
-
Color Temperature: 6000 ± 500K
-
Color Rendering Index (CRI): >75
-
Operating Temperature: -20°C to 40°C
-
Storage Temperature: -25°C to 60°C
-
Lifespan: 30,000 hours
-
Dimensions: 68.2mm x 19.5mm x 5.7mm
-
IP Rating: IP65 (dust tight and protected against water jets)
Applications
The Philmore 11-2938 is suitable for:
- Signage and display backlighting
- Under-cabinet lighting
- Stair lighting
- Accent lighting for various installations
Installation Scenario
In a typical use case, this module can be employed in signage backlighting. For example, it can be installed to illuminate letters on a storefront sign, providing bright and even lighting that enhances visibility at night. The adhesive backing allows for quick and permanent installations, while the option to mount with screws offers additional security.
Benefits
-
High Brightness: Delivers excellent illumination with high efficiency.
-
Durable Construction: ABS plastic and epoxy resin housing ensure longevity and protection.
-
Versatile Applications: Suitable for a wide range of lighting needs from commercial signage to home accent lighting.
-
Energy Efficient: Low power consumption with a long operational life.
