Pan Pacific AD-D9F15HF Passive Serial VGA Adapter
The Pan Pacific AD-D9F15HF is a passive serial VGA adapter designed to facilitate the connection between legacy DB9 serial ports and standard HD15 (VGA) interfaces. This adapter is particularly useful in industrial environments where equipment with older serial outputs needs to interface with VGA-compatible displays or devices.
Product Overview

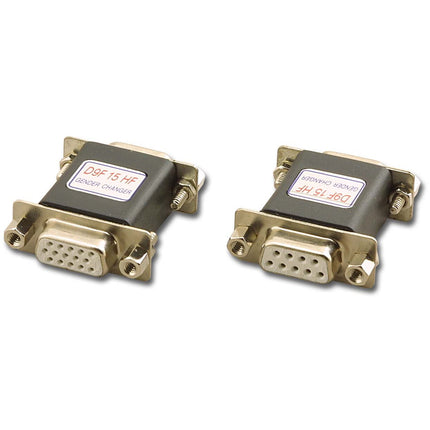

Featuring a DB9 female connector on one end and an HD15 (VGA) female connector on the other, the AD-D9F15HF ensures a reliable connection between devices with differing port types. Its passive design requires no external power, making it a straightforward solution for signal conversion in various applications.
Key Features
-
Connector Type: DB9 Female to HD15 (VGA) Female
-
Pin Configuration:
-
1 → 1
-
2 → 2
-
3 → 3
-
4 → 13
-
5 → 14
-
6 → 6
-
7 → 7
-
8 → 8
-
9 → 10 & 11
-
Compliance: RoHS Compliant
-
Design: Passive adapter requiring no external power
-
Application: Ideal for connecting legacy serial equipment to VGA displays
Industrial Application Scenario
In manufacturing facilities where legacy machinery outputs data through a DB9 serial port, integrating modern monitoring systems can be challenging. The AD-D9F15HF adapter allows for seamless connection of such equipment to contemporary VGA monitors, enabling real-time data visualization without the need for extensive system overhauls. This ensures minimal downtime and cost-effective upgrades in industrial settings.
Authorized Distribution
Tri-Tek Electronics is an authorized distributor of Pan Pacific products, ensuring that customers receive genuine adapters backed by the full manufacturer's warranty. Our commitment to providing the best pricing and factory support makes us a trusted partner for industrial buyers seeking reliable connectivity solutions.
