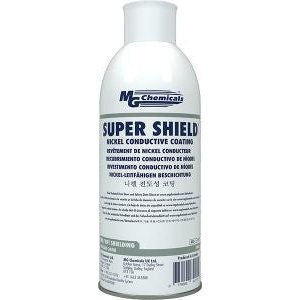

MG Chemicals 841AR-340G Super Shield™ Nickel Conductive Paint
The MG Chemicals 841AR-340G Super Shield™ Nickel Conductive Paint is a high-performance, conductive coating designed to provide excellent EMI/RFI shielding. This nickel-based paint is ideal for applications where superior electrical conductivity and protection against electromagnetic interference are required. Suitable for use on plastic, metal, and other non-porous surfaces, the 841AR-340G offers reliable performance for both industrial and consumer electronics.
Features and Benefits
-
Superior Conductivity: Provides excellent electrical conductivity, ensuring effective EMI/RFI shielding.
-
Nickel-Based Formula: Offers a durable and reliable shielding solution for a variety of applications.
-
Easy Application: Can be applied by spraying, brushing, or dipping, allowing for versatile use.
-
Fast Drying: Quick-drying formula reduces downtime and speeds up the coating process.
-
Adhesion to Various Surfaces: Suitable for use on plastics, metals, and other non-porous materials.
Specifications
-
Type: Nickel Conductive Paint
-
Volume: 340g (12 oz)
-
Color: Grey
-
Resistivity: < 1.0 ohm/sq at 1 mil dry film thickness
-
Shielding Effectiveness: 50-60 dB at frequencies of 1-2 GHz
-
Drying Time: Touch dry in 15 minutes, full cure in 24 hours
-
Operating Temperature Range: -40°C to 120°C (-40°F to 248°F)
-
Shelf Life: 3 years
Example Use Scenario
An engineer is tasked with reducing electromagnetic interference in a plastic enclosure for a sensitive electronic device. By applying the MG Chemicals 841AR-340G Super Shield™ Nickel Conductive Paint inside the enclosure, the engineer effectively creates a conductive barrier that shields the electronics from external EMI/RFI, ensuring reliable performance and compliance with regulatory standards.
Authorized Distributor
Tri-Tek Electronics is an authorized distributor of MG Chemicals products. Purchasing from Tri-Tek Electronics ensures you receive full manufacturer warranty coverage, the best pricing, and factory support.
