Syston 1259-PB-BL-1000 CAT 6E 600MHz UTP Plenum Cable – Blue, 1000 ft

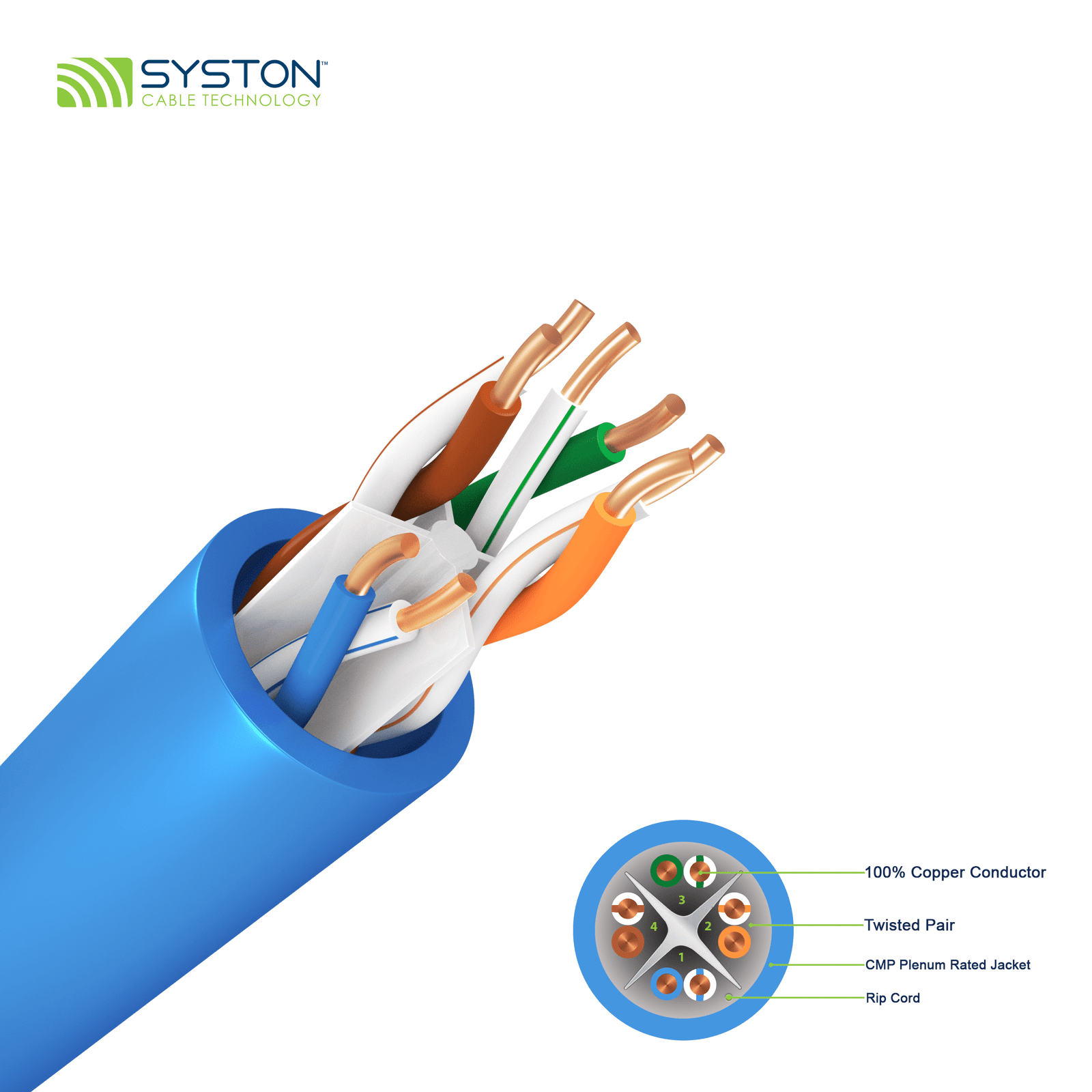

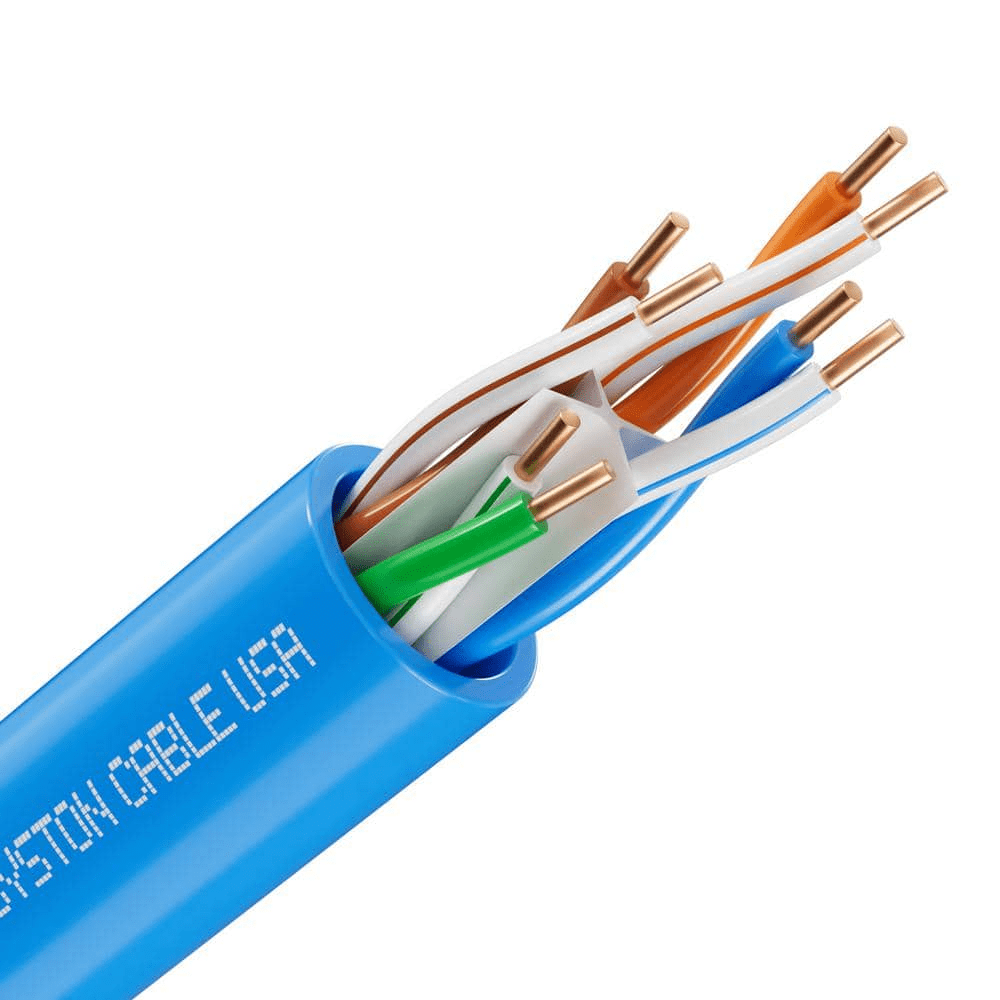

Tri-Tek Electronics is proud to offer the Syston 1259-PB-BL-1000 CAT 6E cable—an advanced, high-performance networking solution engineered for demanding commercial and residential installations. This 1000-foot blue plenum-rated (CMP) cable supports 600 MHz bandwidth and is designed to deliver reliable 10 Gigabit Ethernet performance across long distances. Its unshielded twisted pair (UTP) construction with a spline separator ensures superior signal integrity and reduced crosstalk, making it ideal for data centers, structured cabling, PoE devices, and high-definition AV systems.
As an authorized distributor, Tri-Tek Electronics guarantees full manufacturer warranty coverage, competitive pricing, and direct factory support. Our retail location in Mesa, AZ, serves installers, technicians, and IT professionals throughout the Phoenix metro area, including Chandler, Tempe, Gilbert, Scottsdale, and Glendale.
Key Features
-
Bandwidth: 600 MHz for high-speed data transmission
-

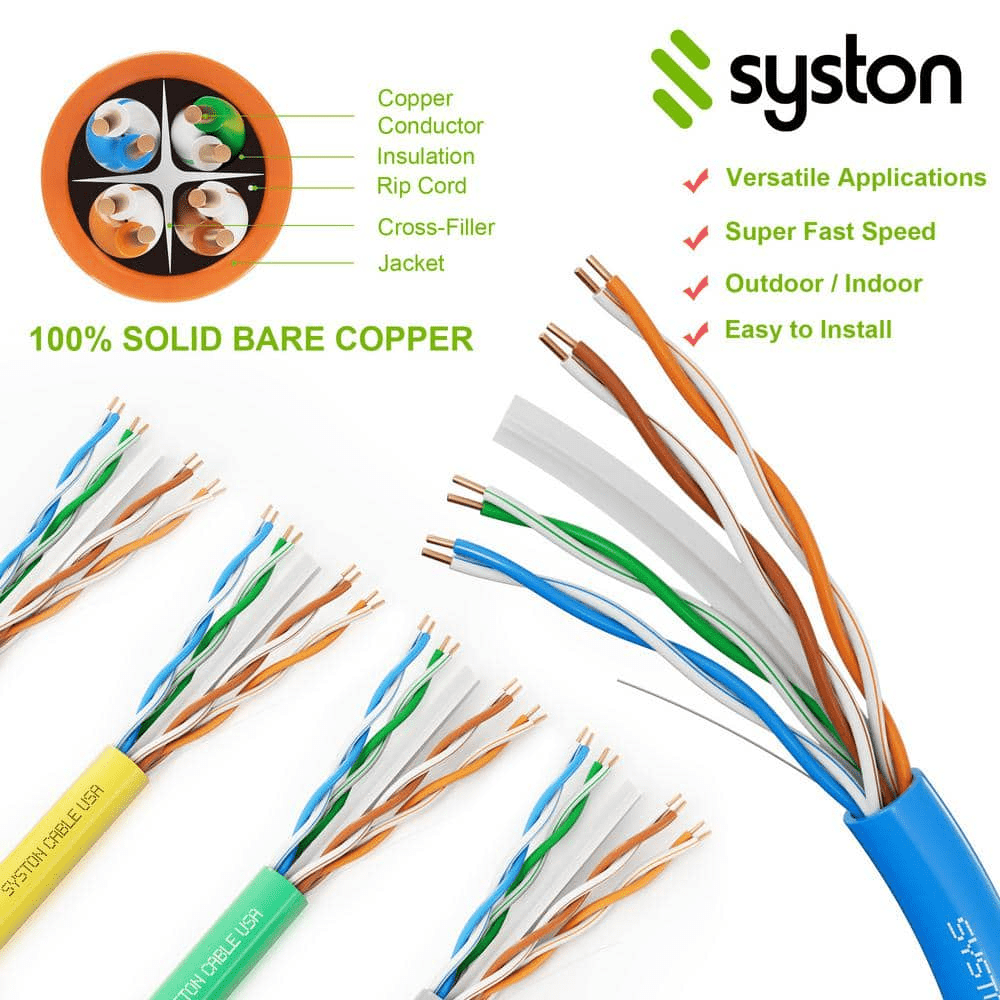

Conductor: 23 AWG solid bare annealed copper
-
Insulation: Premium FEP (fluoropolymer)
-

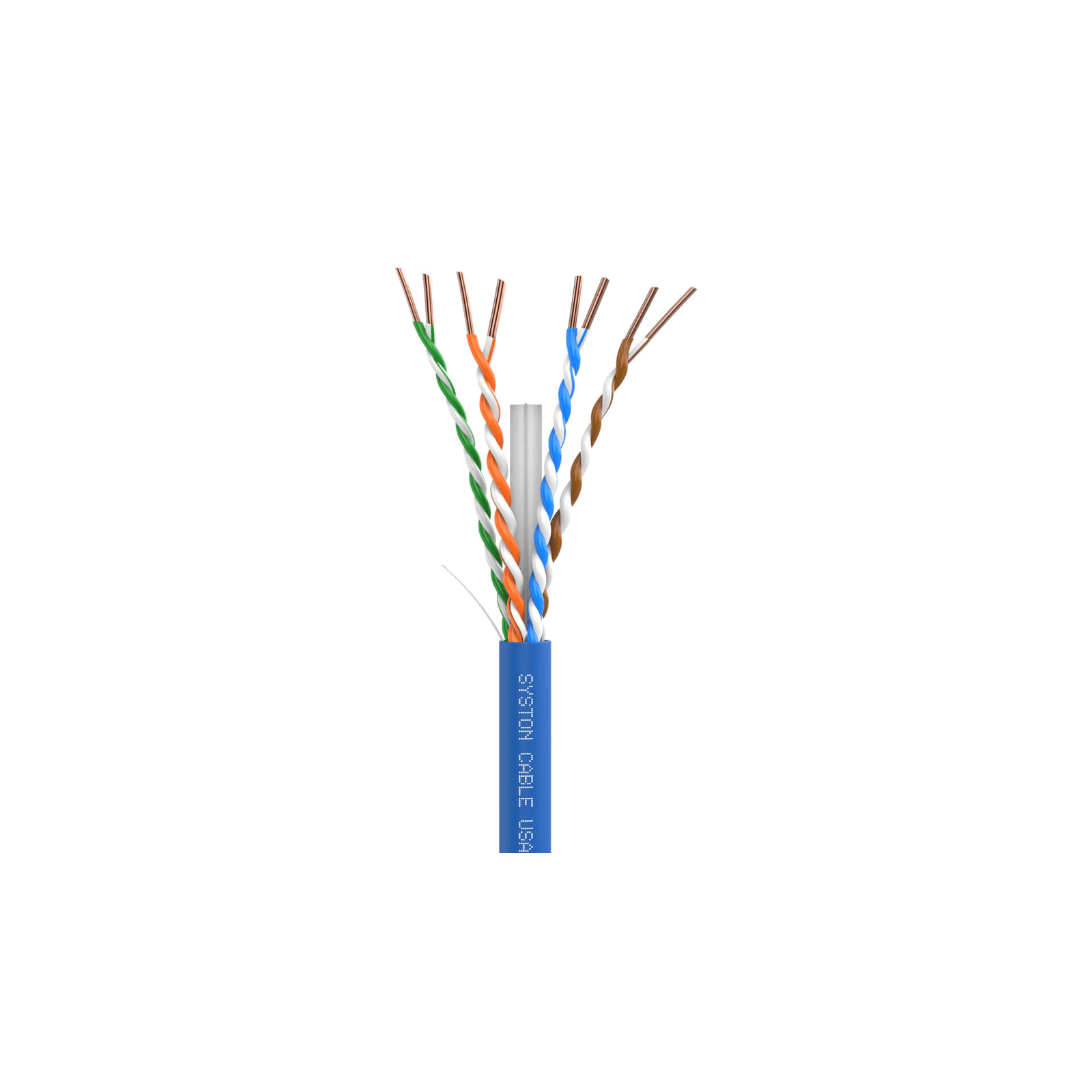

Center Spline: Polyolefin separator for enhanced crosstalk prevention
-
Jacket: CMP-rated plenum PVC (low smoke, flame-retardant, RoHS compliant)
-

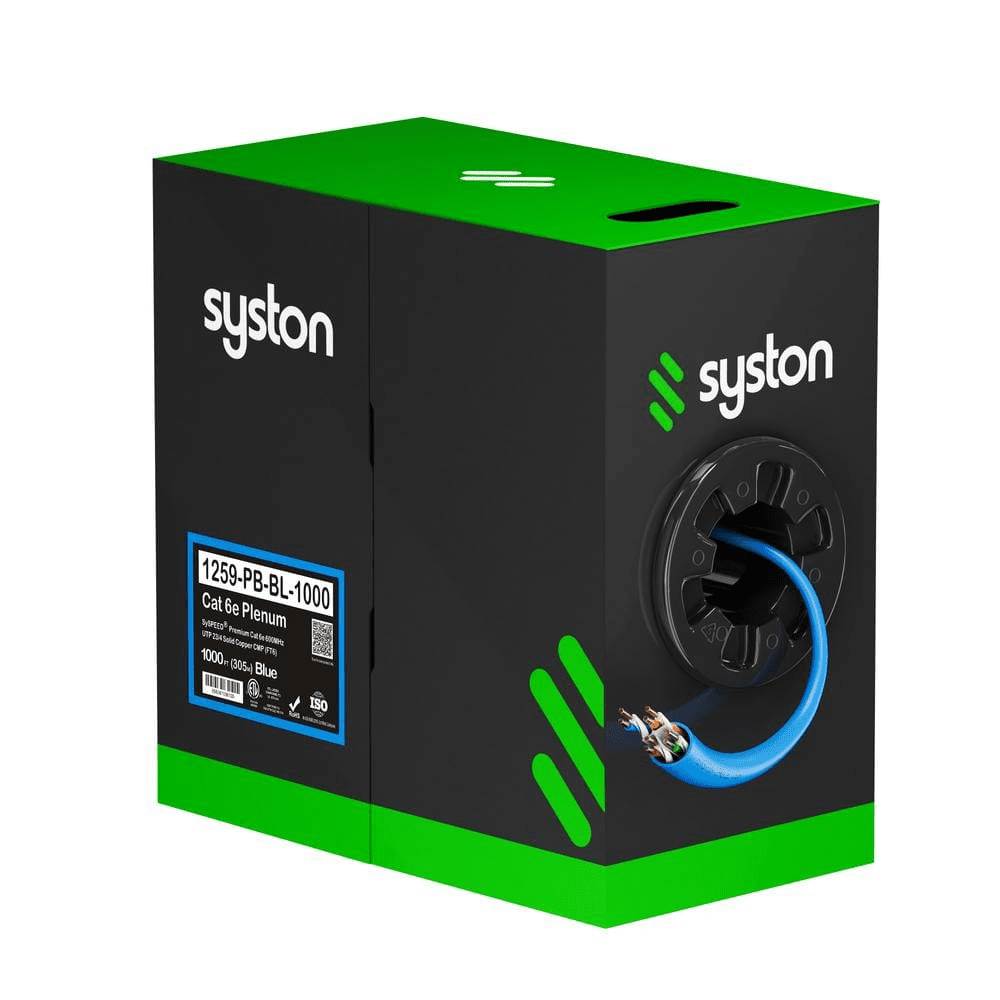

Packaging: REELEX tangle-free pull box with ascending/descending footage markers
-
Certifications: UL 444, ANSI/TIA 568.2-D, ISO/IEC 11801, NEC/CEC Type CMP, RoHS 3
-
Applications: 10GBASE-T, PoE/PoE+, HDBaseT, IP surveillance, AV over IP, building automation

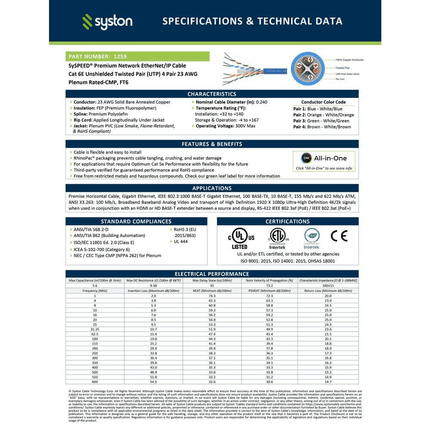

Technical Specifications
| Specification |
Value |
| Conductor |
23 AWG solid bare copper |
| Outer Diameter |
0.240 inches |
| Operating Voltage |
300V max |
| Pulling Strength |
130 N |
| Minimum Bend Radius |
4 × outer diameter |
| Temperature Range |
-4°F to +167°F |
| Impedance |
100 ±15 ohms |
| Nominal Velocity Propagation |
73.2% |
| Max DC Resistance |
9.38 Ω/100m |
| Max Capacitance |
5.6 nF/100m |
| Delay Skew |
45 ns/100m |

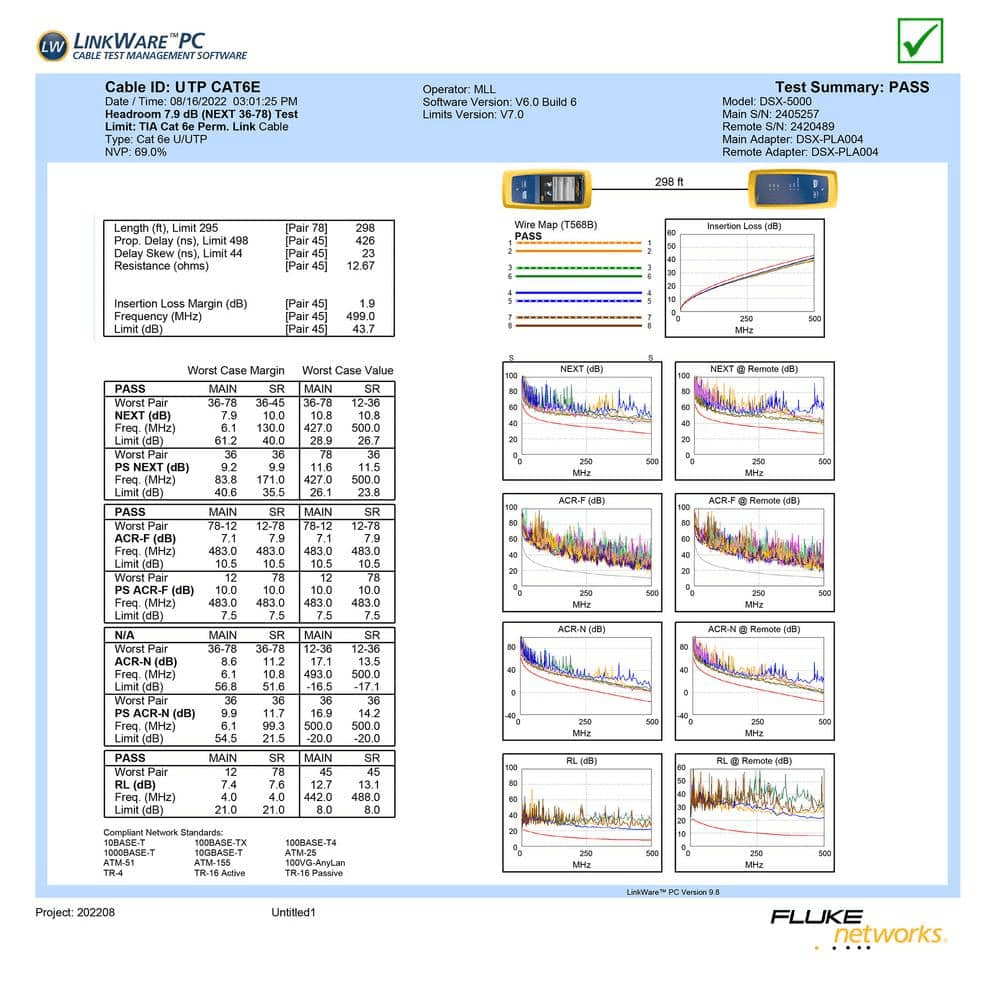

Performance Metrics (per 100m)
| Frequency (MHz) |
Insertion Loss (dB) |
NEXT (dB) |
PSNEXT (dB) |
Return Loss (dB) |
| 100 |
19.8 |
44.3 |
42.3 |
20.1 |
| 250 |
32.8 |
38.3 |
36.3 |
17.3 |
| 600 |
54.5 |
32.6 |
30.6 |
14.7 |
Installation Scenario
In a modern office building in Phoenix, an IT contractor selected the Syston 1259-PB-BL-1000 CAT 6E cable to upgrade the network infrastructure. The cable's plenum rating ensured compliance with local fire codes for air-handling spaces, while its 600 MHz bandwidth accommodated high-speed data transfer for VoIP phones, PoE security cameras, and HD video conferencing systems. The REELEX packaging facilitated efficient installation, reducing labor time and minimizing waste.
Ideal for Installers, Technicians, and IT Professionals
Whether you're wiring a new commercial facility, retrofitting an existing network, or setting up a high-performance home office, the Syston 1259-PB-BL-1000 provides the reliability and performance needed for today's data-intensive applications. Its compliance with industry standards and ease of installation make it a top choice for professionals seeking quality and efficiency.
