Latest in High-Speed Networking: Signamax Category 6 MT-Series Unscreened Keystone Jacks
Embrace the future of networking with the advanced Signamax Category 6 MT-Series Unscreened Keystone Jacks, expertly crafted for high-bandwidth applications. These slim-profile connectors are the perfect fit for the most densely packed network setups, offering the versatility of color-coded service identification icons or dust covers to ensure protection against environmental contaminants.
Innovatively designed for enhanced connection integrity, these jacks are resilient against damage from 4- or 6-position plug insertions. Their unique construction enables termination with either a standard 110 single-position tool or the specialized Signamax four-pair tool. Rated for at least 750 plug insertions, these jacks promise unparalleled system reliability.

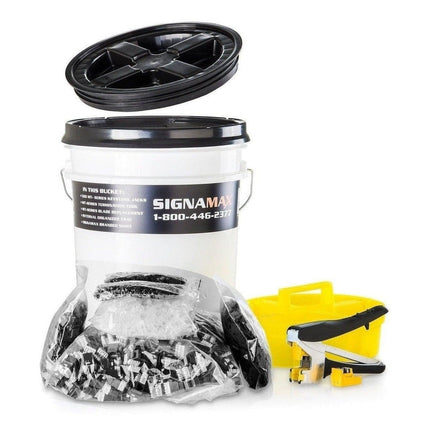

Master Pack - Comprehensive Networking Solution: This all-in-one pack is essential for setting up 500 jacks in work areas or telecommunication racks. The robust HDPE resealable bucket includes:
- 500 MT Series Keystone Jacks
- One MT-Series termination tool
- An organizer tray
- A complimentary Signamax T-Shirt
Standout Features:
- Surpasses TIA-568-C.3 component performance standards.
- Designed for high-density network environments.
- Enhanced wire retention and straightforward termination with rear 110 type contacts.
- Supports power-over-Ethernet (PoE) applications: IEEE 802.3af, 802.3at, and IEEE 802.3bt type 3 and 4.
- Fully compatible with Signamax screened snap-in patch panels and work area faceplates.
- Includes circuit identification icons, dust covers, and 110 protection caps.
Technical Specifications at a Glance:
-
Transmission Performance: Meets/exceeds Category 6 (1-250 MHz) standards as per ANSI/TIA-568-C.2.
-
Jack Type: 8p8c (8-position, 8-contact) “RJ45” style.
-
Wiring Scheme: T568A & T568B; ISO/IEC 11801 2nd Ed. compliant.
Robust Construction and Compliance:
- Housing: High-impact thermoplastic, UL94V-0 fire retardant.
- Jack Spring Wire: Phosphor bronze alloy, gold and nickel plated.
- IDC: 110 type, phosphor bronze alloy with tin alloy.
Environmental and Mechanical Durability:
- Operating Temperature Range: 14 °F to 140 °F (-10 °C to 60 °C).
- Storage Temperature Range: -40 °F to 158 °F (-40 °C to 70 °C).
- Mating Cycle Life: Minimum 750 cycles.
Compliance Standards:
- Meets ANSI/TIA-568-C.2, IEEE 802.3 standards, and more.
Applications and Warranty:
- Suitable for a wide range of applications including X.21, V.11, ISDN, CSMA/CD 10BASE-T, and others.
- Comes with a 5-year Limited Component and a 25-year Signamax Cabling System Warranty.
