Triplett 8075 CamView IP Pro‑X HD Full Touch Screen Display IP & Analog Security Camera Tester
Tri‑Tek Electronics is an authorized distributor of the Triplett 8075 CamView IP Pro‑X, offering full manufacturer warranty coverage, factory-direct support, and the best pricing available. Based in Mesa, Arizona, we proudly serve the Phoenix metro area including Chandler, Tempe, Gilbert, Scottsdale, and Glendale with local inventory and expert guidance for installers and technicians.
Product Overview

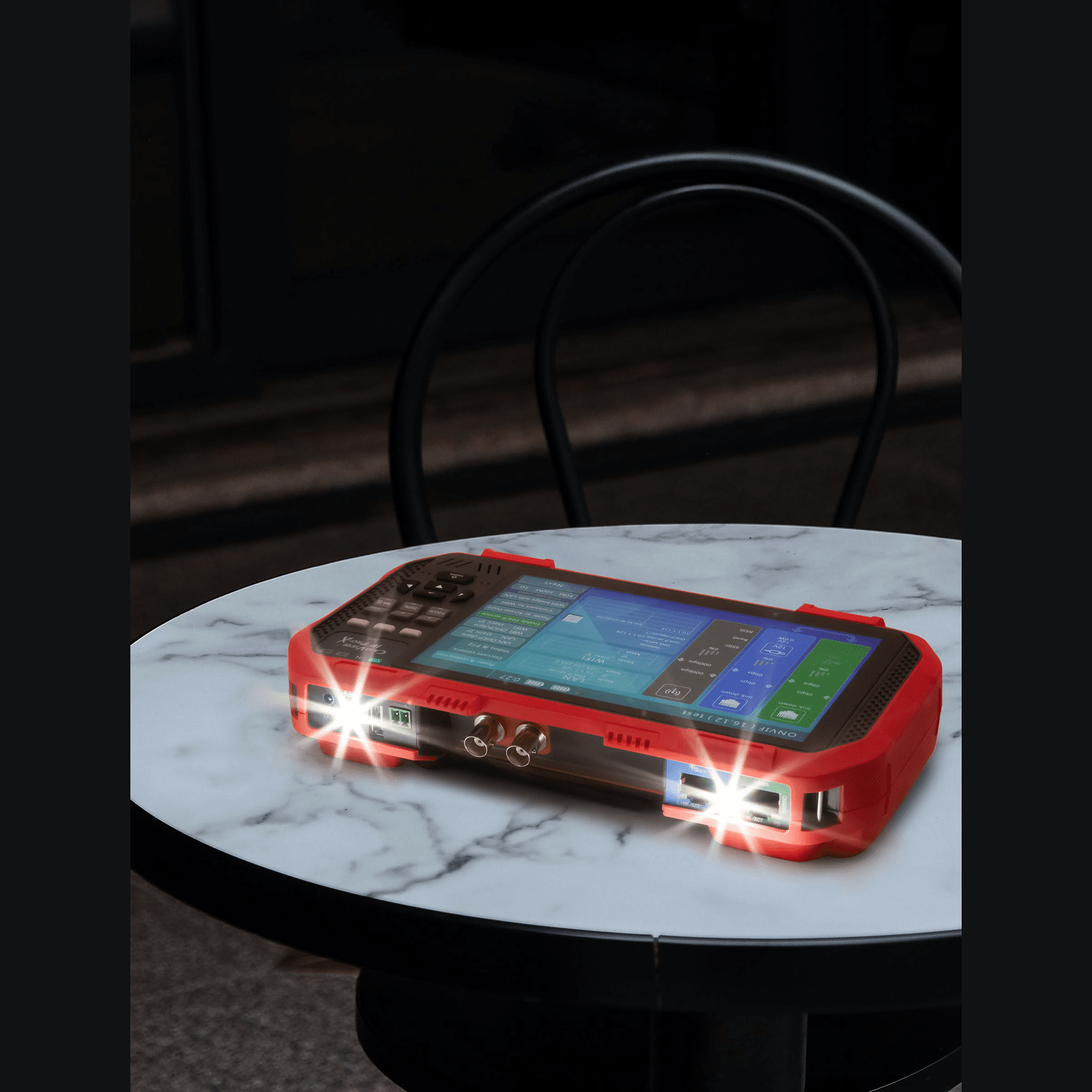

The CamView IP Pro‑X (Model 8075) from Triplett is an advanced all-in-one tester engineered for professional-grade IP and analog camera installations. Featuring a high-resolution 7″ full touchscreen, this tool provides a complete diagnostic and setup solution for security professionals working across legacy and modern surveillance systems.
Key Features
-
Full Format Camera Support
Compatible with SD analog, AHD 3.0, HD‑CVI 3.0, HD‑TVI 3.0, H.264/H.265 IP cameras, NTSC/PAL, and ONVIF-compliant devices.
-
Multi-Port Connectivity

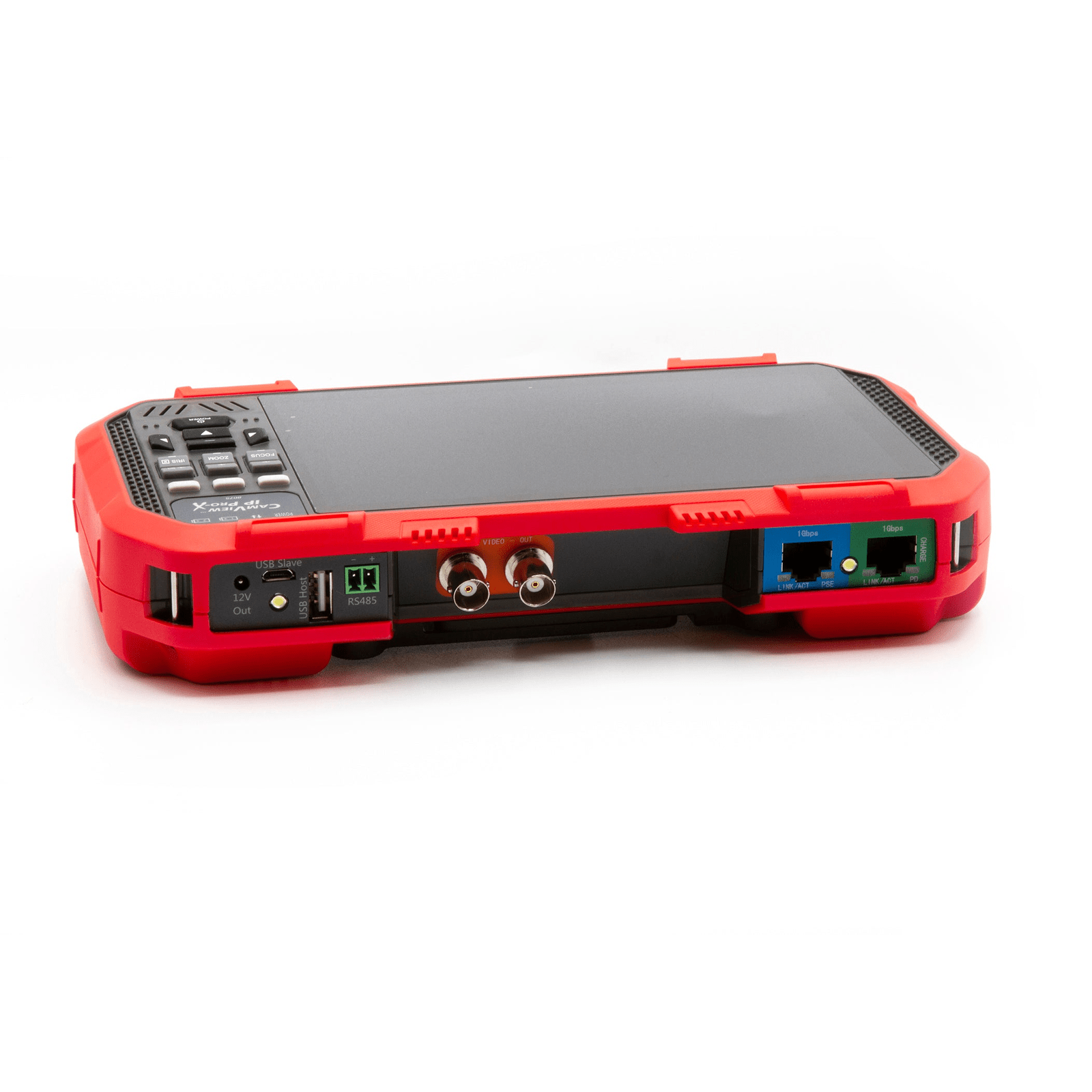

Includes USB, BNC, RJ45 Ethernet, HDMI, RS‑485, enabling quick camera hook-up and network interfacing.
-
Camera Power Options
Supplies up to 25W PoE and 12V DC for powering cameras directly. Supports RS‑485 PTZ control with over 30 protocols including Hikvision, Dahua, and Pelco.
-
Network Diagnostic Tools
Performs loopback detection, DHCP client/server testing, ping, network traffic monitoring, data quality evaluation, and IP address scanning.
-
Wi‑Fi Functionality
Supports 2.4 GHz and 5 GHz bands. Can connect to Wi‑Fi-enabled cameras or function as a wireless hotspot to facilitate standalone configuration.
-
Video and Display Testing

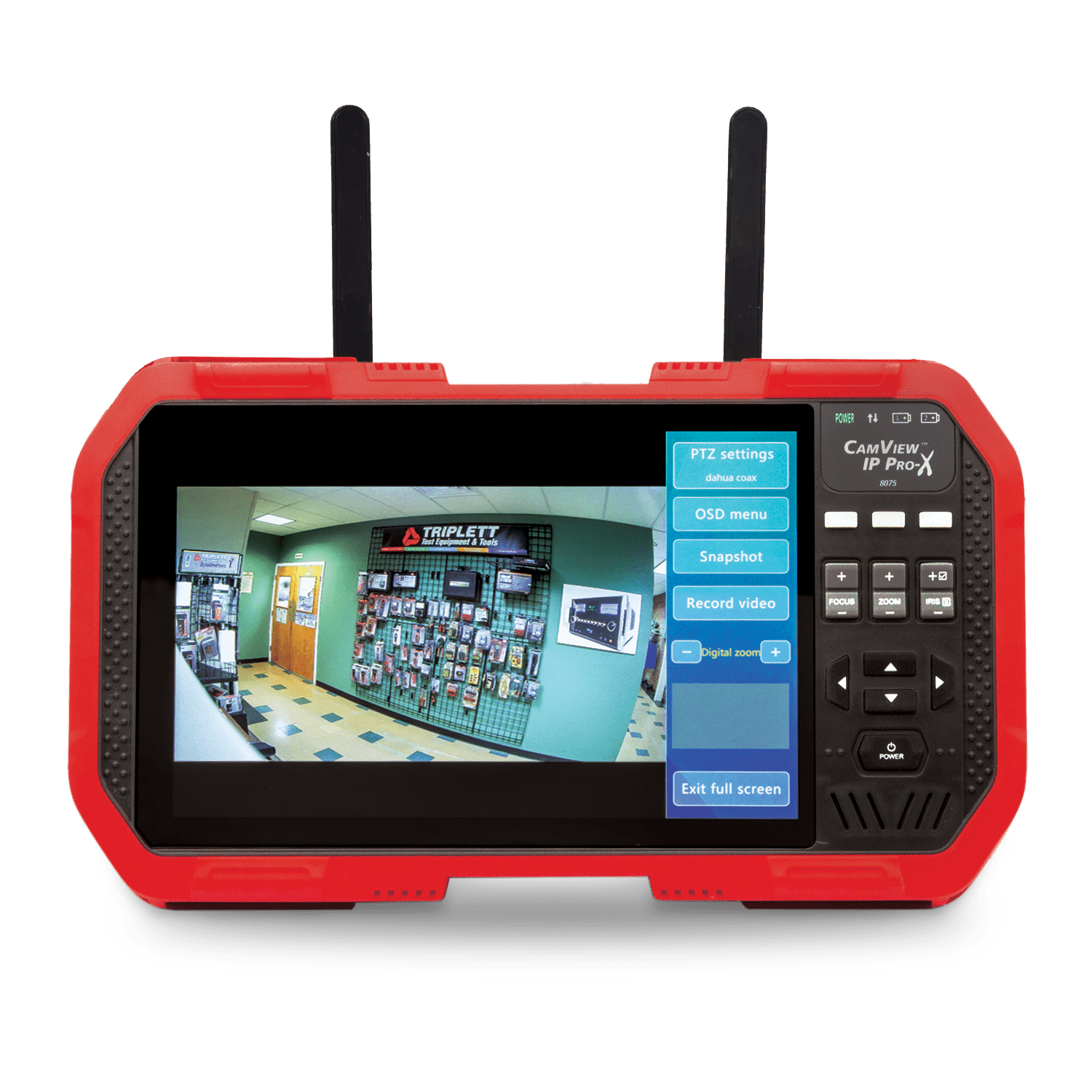

Allows for real-time analog video testing (NTSC, PAL, AHD, HD‑CVI, HD‑TVI). HDMI input and output support resolutions up to 1080p for video loop testing or test pattern generation.
-
Cable Testing Capabilities

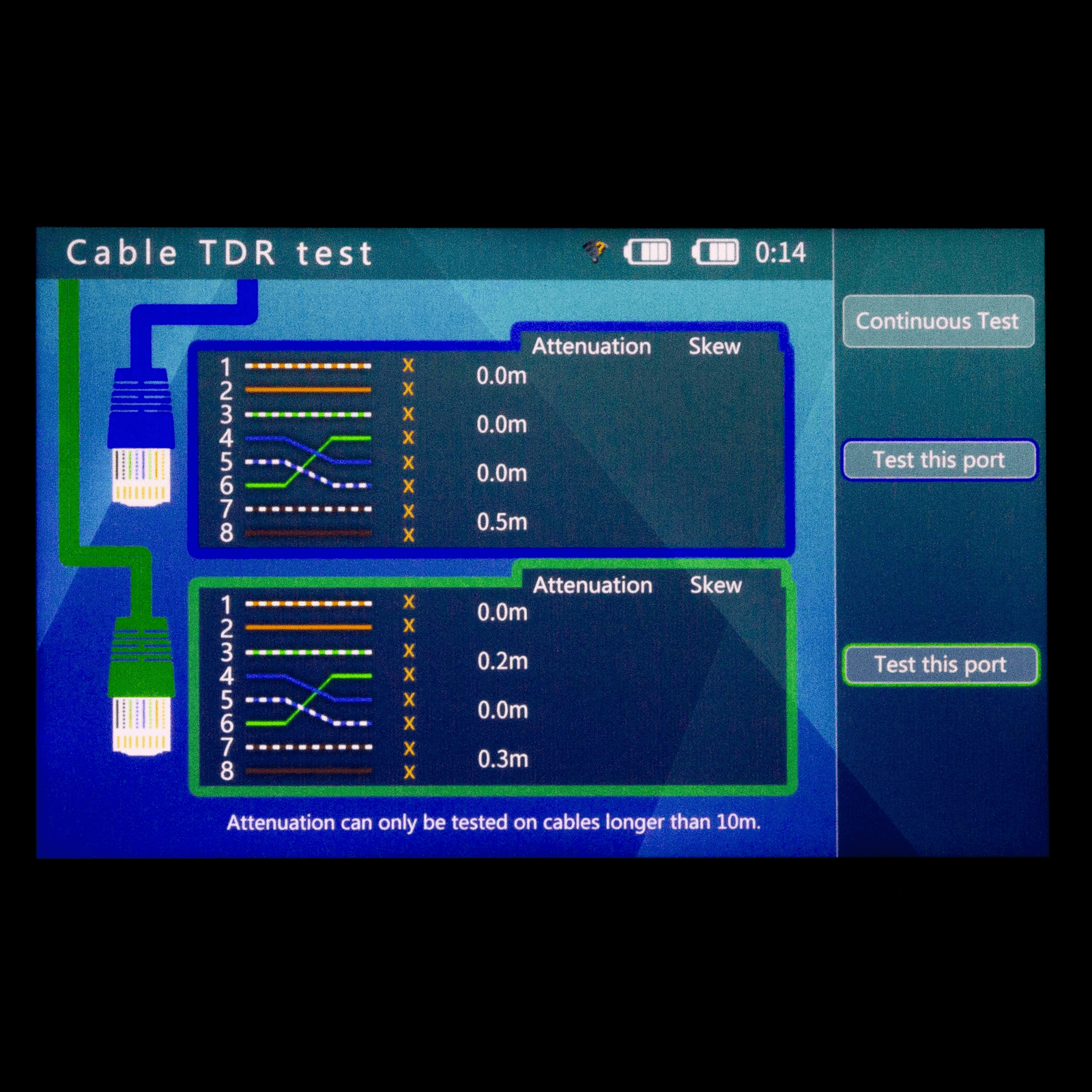

TDR (Time Domain Reflectometer) cable test mode measures cable length up to 656 ft with ±3.3 ft accuracy.
-
Rugged Display & Recording

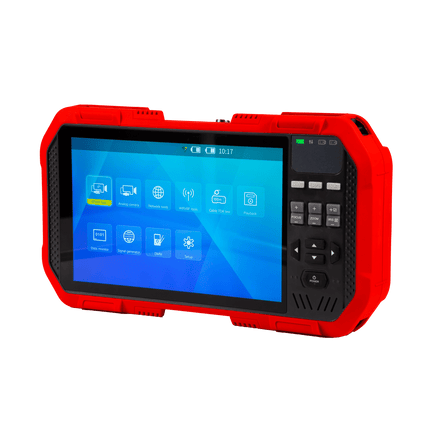

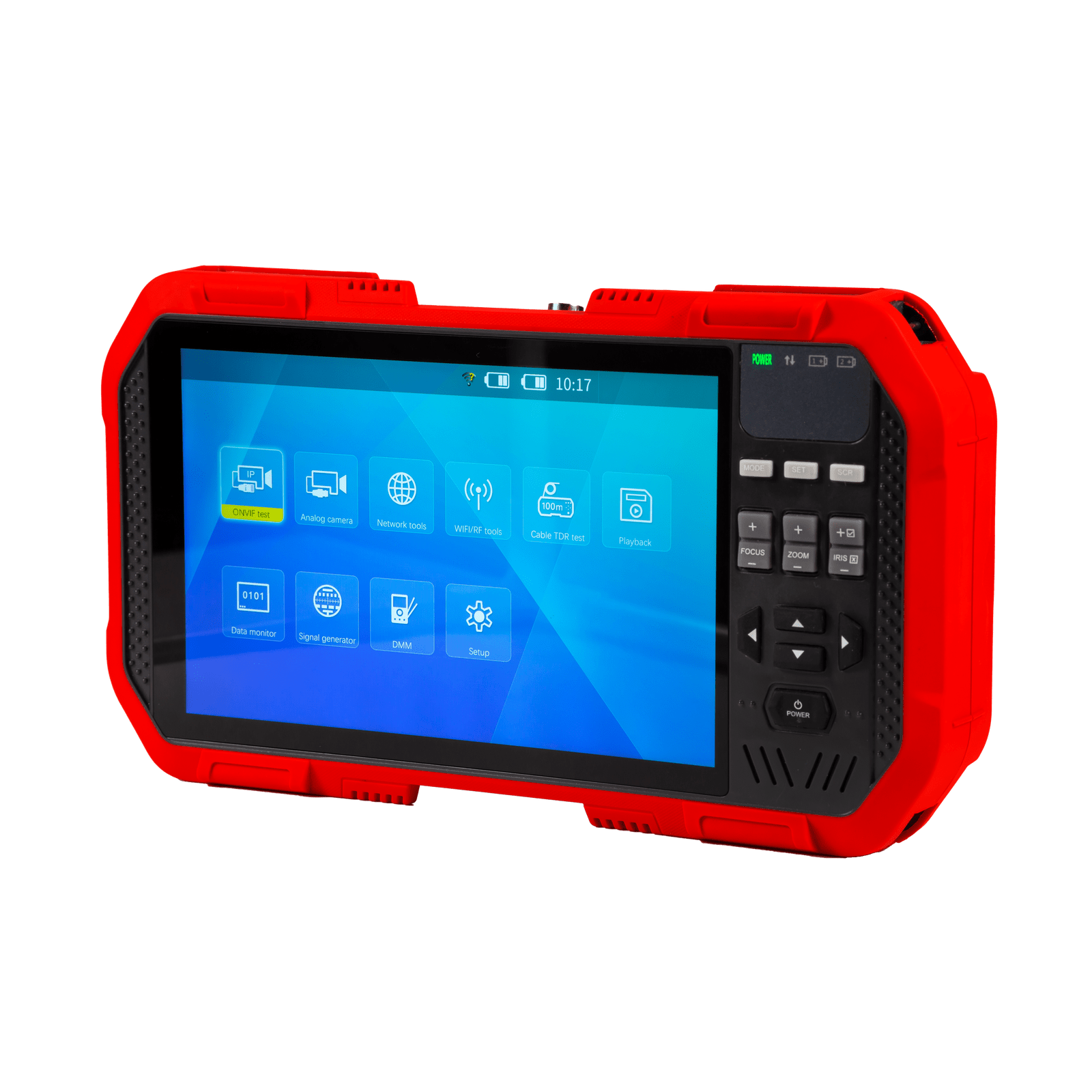

7″ HD TFT touch display with 1920×1200 resolution and 16.7 million colors. Supports snapshot and video capture during testing.
-
Long-Lasting Battery Power

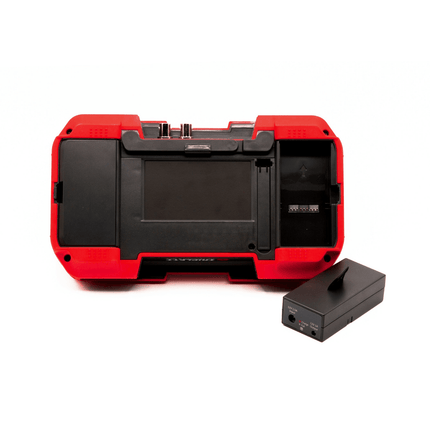

Dual rechargeable lithium-ion batteries offer up to 10 hours of field operation.
-
Complete Accessory Kit Included
Comes with power adapter (global plug set), Ethernet cable, BNC cable, RS-485 cable, audio cable, USB cable, 12V power output cable, neck strap, and carrying case.
Specifications Summary
| Specification |
Details |
| Display |
7″ TFT touchscreen (1920×1200 resolution, 16.7M colors) |
| Supported Camera Formats |
SD analog, AHD 3.0, HD‑CVI 3.0, HD‑TVI 3.0, NTSC/PAL, H.264/H.265 IP, ONVIF |
| Interfaces |
USB, BNC, RJ45 Ethernet, HDMI, RS‑485 |
| Power Output |
25 W PoE, 12 V DC |
| PTZ Control |
RS‑485 (30+ protocols supported) |
| Network Testing |
DHCP, loop, sniff, ping, traffic quality, subnet list |
| Wi‑Fi Support |
2.4 GHz and 5 GHz, hotspot mode |
| Video Testing |
HDMI in/out (720p, 1080p), analog input |
| TDR Cable Testing |
Range: up to 656 ft, Accuracy: ±3.3 ft |
| Battery Runtime |
Up to 10 hours |
| Unit Dimensions |
9.3″ × 5.2″ × 1.8″ |
| Weight |
2 lbs (907 g) |
| Included Accessories |
Power supply, global plug adapters, test cables, lanyard, carrying case |
Example Installation Scenario

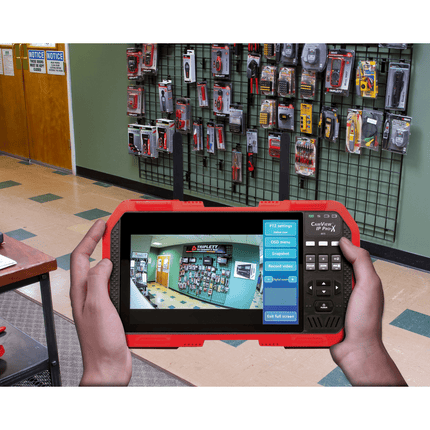

A security technician performing a new system deployment in a retail plaza in Gilbert, AZ uses the Triplett 8075 CamView IP Pro‑X to configure and validate both analog and IP cameras. The device powers a PoE camera, runs ONVIF discovery, tests PTZ movement, and uses the built-in HDMI output to confirm monitor loopback. The hotspot mode allows full testing without needing on-site network access. Snapshots of each camera feed are captured as part of the install record — all done with a single tool in-hand.
