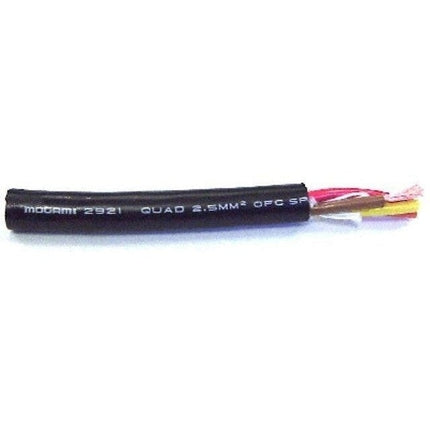

Mogami W2921 4-Conductor Superflexible High Definition Speaker Wire
These unique professional speaker cables are originally designed to deliver maximum performance from state-of-the-art Tri-Amp Systems.
They offer true audiophile performance for accurate sound transmission with clear transparent response yet possess a rugged superflexibility for the most demanding professional applications.
Each conductor features many strands in rope-lay of famous MOGAMI 'NEGLEX' Oxygen-Free-Copper within colour-coded PVC insulation. A tough, low profile matte black superflexible PVC jacket protects the cables.
Part No.
W2921
No. of Conductor
4
Conductor Size
2.5mm² (#14AWG)
Overall Diameter (mm) (inch)
11.3Ø 0.445Ø
Core Colors
Brown / Red / Orange / Yellow
Configuration
Part No.
W2921
No. of Conductor
4
Conductor
Details
7/32/0.12 NEGLEX OFC (bare)
Size
2.53mm² (#14AWG)
Insulation Ov. Dia.(mm)
3.4Ø (0.134"Ø) PVC
Jacket
Ov. Dia.(mm)
11.3Ø (0.445"Ø)
Material
Flexible PVC, Matte Black
Weight per 153m (500Ft) Roll
28kg
DC Resistance (20°C)
0.008Ω/m Typ. (0.0024Ω/Ft)
Inductance (1kHz, 20°C) (Refer to the figures shown in the capacitance data.)
1-2
0.7µH/m (0.21µH/Ft)
1-3
0.3µH/m (0.09µH/Ft)
Capacitance (20°C)
Frequency
100Hz
1kHz
10kHz
50kHz
100kHz
W2921
1-2
127pF/m (38.7pF/Ft)
110pF/m (33.6pF/Ft)
101pF/m (30.8pF/Ft)
92pF/m (28.1pF/Ft)
90pF/m (27.5pF/Ft)
1-3
102pF/m (31.1pF/Ft)
89pF/m (27.1pF/Ft)
89pF/m (27.1pF/Ft)
74pF/m (22.6pF/Ft)
71pF/m (21.7pF/Ft)
