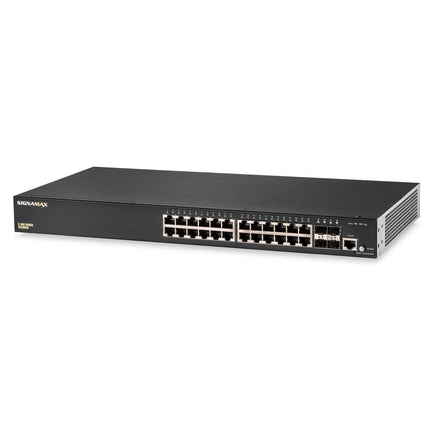

Signamax C-300 Managed Switch | 24-Port Gigabit PoE+, 4 SFP | FO-SC30030

Features:

  • Intuitive Network Management: Simplified management with an intuitive dashboard for streamlined operations.
  • Robust PoE+ Support: Delivers up to 200W PoE with PoE+ support on all ports, ideal for powering high-demand devices.
  • Versatile Connectivity: Includes 4 uplink SFP Ports for enhanced network flexibility.
  • Efficient Routing: Features static IP routing and RIP for optimal network traffic management.
  • Enhanced QoS: 8 dedicated QoS queues ensure prioritization of critical network traffic.
  • Rack Installation Ready: Integrated mounting brackets for easy rack installation in any setup.

Specifications:

  • Ports:

    • RJ-45 (Downlink): 24 10/100/1000
    • SFP Uplink Ports: 4
    • PoE Ports: 24

  • PoE Features:

    • PoE Budget: 200W (Expandable)
    • Supports IEEE 802.3af/IEEE802.3at on each port
    • Features Dynamic Power Allocation and PoE Scheduling

  • Performance:

    • Switching Capacity: 56Gbps
    • Forward Rate: 41.7Mpps
    • Up to 8K MAC Address Table, 256MB DRAM
    • Supports 10K Jumbo Frames and wirespeed forwarding
    • IPv4/IPv6 Dual Protocol Stack

  • Security:

    • Advanced DDOS Protection, CPU Guard
    • Up to 512 Access Control Lists (ACL) based on L2/L3/L4
    • Comprehensive port and MAC security features

  • Layer 3 Standards:

    • Supports up to 56 Static routes, RIPv1/RIPv2
    • DHCP Client/Relay, Static Multicast Routing

  • Layer 2 Standards:

    • Compliance with IEEE 802.3u, 802.3z, and other standards
    • Advanced Spanning Tree and Loopback Detection protocols

  • Management:

    • Web-based GUI, CLI (Telnet/SSH)
    • Dual Image/Configuration and comprehensive SNMP support

  • QoS and Diagnostic Tools:

    • Rate Limiting, Priority Queues Schedule
    • Diag LED, Cable Test, DDM on SFP Ports

  • Electrical Characteristics:

    • Max Power Consumption: 260W
    • Low Acoustic Noise: 46.1 dB (A)

  • Physical and Environmental Requirements:

    • Dimensions: 17.3” W x 8.6” D x 1.7” H
    • Operating Temperature: 32 to 122°F

  • Certifications and Warranty:

    • Complies with EN 55022, FCC Part 15 Class A
    • Five-year warranty, including power supply
Product form

Features: Intuitive Network Management: Simplified management with an intuitive dashboard for streamlined operations. Robust PoE+ Support: Delivers up to 200W... Read more

Free local pickup in our store

SKU: SIGFO-SC30030
UPC: 650

$1,300.00 $866.67

      Features:

      • Intuitive Network Management: Simplified management with an intuitive dashboard for streamlined operations.
      • Robust PoE+ Support: Delivers up to 200W PoE with PoE+ support on all ports, ideal for powering high-demand devices.
      • Versatile Connectivity: Includes 4 uplink SFP Ports for enhanced network flexibility.
      • Efficient Routing: Features static IP routing and RIP for optimal network traffic management.
      • Enhanced QoS: 8 dedicated QoS queues ensure prioritization of critical network traffic.
      • Rack Installation Ready: Integrated mounting brackets for easy rack installation in any setup.

      Specifications:

      • Ports:

        • RJ-45 (Downlink): 24 10/100/1000
        • SFP Uplink Ports: 4
        • PoE Ports: 24

      • PoE Features:

        • PoE Budget: 200W (Expandable)
        • Supports IEEE 802.3af/IEEE802.3at on each port
        • Features Dynamic Power Allocation and PoE Scheduling

      • Performance:

        • Switching Capacity: 56Gbps
        • Forward Rate: 41.7Mpps
        • Up to 8K MAC Address Table, 256MB DRAM
        • Supports 10K Jumbo Frames and wirespeed forwarding
        • IPv4/IPv6 Dual Protocol Stack

      • Security:

        • Advanced DDOS Protection, CPU Guard
        • Up to 512 Access Control Lists (ACL) based on L2/L3/L4
        • Comprehensive port and MAC security features

      • Layer 3 Standards:

        • Supports up to 56 Static routes, RIPv1/RIPv2
        • DHCP Client/Relay, Static Multicast Routing

      • Layer 2 Standards:

        • Compliance with IEEE 802.3u, 802.3z, and other standards
        • Advanced Spanning Tree and Loopback Detection protocols

      • Management:

        • Web-based GUI, CLI (Telnet/SSH)
        • Dual Image/Configuration and comprehensive SNMP support

      • QoS and Diagnostic Tools:

        • Rate Limiting, Priority Queues Schedule
        • Diag LED, Cable Test, DDM on SFP Ports

      • Electrical Characteristics:

        • Max Power Consumption: 260W
        • Low Acoustic Noise: 46.1 dB (A)

      • Physical and Environmental Requirements:

        • Dimensions: 17.3” W x 8.6” D x 1.7” H
        • Operating Temperature: 32 to 122°F

      • Certifications and Warranty:

        • Complies with EN 55022, FCC Part 15 Class A
        • Five-year warranty, including power supply
