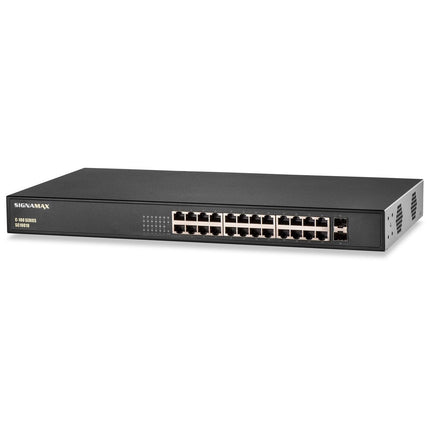

Signamax C-100 Gigabit Switch - 24-Port PoE+ with Dual SFP Ports | FO-SC10010

Description

Features:

  • Seamless Connectivity: Offers zero-touch Plug and Play connectivity for effortless network integration.
  • High Power Output: Delivers up to 385W of power with PoE+ support across all 24 ports.
  • Efficient Power Supply: Equipped with a robust 400W internal power supply for reliable performance.
  • Versatile Uplink Interfaces: Features 2 Gigabit SFP uplink interfaces for high-speed network connections.
  • Durable Construction: Encased in a rugged metal with a clean black finish for enhanced durability.
  • Easy Installation: Integrated mounting brackets included for convenient rack installation.

Specifications:

  • Ports:

    • RJ-45 (Downlink): 24 10/100/1000
    • Uplink Ports: 2 Gigabit SFP
    • PoE Ports: 24

  • PoE:

    • Budget: 385W
    • Full support for IEEE 802.3af/IEEE802.3at on each port
    • Dynamic Power Allocation for optimized distribution

  • Performance:

    • Switching Capacity: 52Gbps
    • Forward Rate: 36.7Mpps
    • Supports up to 4K MAC Addresses
    • 4Mb Packet Buffer
    • 10K Jumbo Frames compatibility
    • Wirespeed Forwarding for maximum throughput

  • Layer 2 Standards:

    • Compliant with a range of IEEE standards including 802.3, 802.3u, 802.3ab, and more
    • SFP ports support a variety of IEEE standards for greater flexibility

  • Electrical Characteristics:

    • Max Power Consumption: 400W
    • AC Input: 100 – 240 V AC, 50/60 Hz
    • High MTBF (Mean Time Between Failures) of 100K hours

  • Physical Characteristics:

    • Dimensions: 17.3” W x 8.8” D x 1.7” H
    • Includes 19-inch rack mounting hardware
    • Weight: 7.8 lb (3.5 kg)

  • Environmental Requirements:

    • Operating Temperature Range: 14 to 131°F
    • Storage Temperature Range: -4 to 158°F
    • Humidity Tolerance: 5 to 95% (non-condensing)

  • Certifications:

    • Complies with EN 55022, FCC Part 15 Class B, VCCI Class B
    • Safety Certified: CE/LVD EN60950

  • Warranty:

    • Comprehensive five-year warranty, including power supply for added assurance.
Product form

Features: Seamless Connectivity: Offers zero-touch Plug and Play connectivity for effortless network integration. High Power Output: Delivers up to 385W... Read more

Free local pickup in our store

SKU: SIGFO-SC10010

$862.40 $574.93

      Description

      Features:

      • Seamless Connectivity: Offers zero-touch Plug and Play connectivity for effortless network integration.
      • High Power Output: Delivers up to 385W of power with PoE+ support across all 24 ports.
      • Efficient Power Supply: Equipped with a robust 400W internal power supply for reliable performance.
      • Versatile Uplink Interfaces: Features 2 Gigabit SFP uplink interfaces for high-speed network connections.
      • Durable Construction: Encased in a rugged metal with a clean black finish for enhanced durability.
      • Easy Installation: Integrated mounting brackets included for convenient rack installation.

      Specifications:

      • Ports:

        • RJ-45 (Downlink): 24 10/100/1000
        • Uplink Ports: 2 Gigabit SFP
        • PoE Ports: 24

      • PoE:

        • Budget: 385W
        • Full support for IEEE 802.3af/IEEE802.3at on each port
        • Dynamic Power Allocation for optimized distribution

      • Performance:

        • Switching Capacity: 52Gbps
        • Forward Rate: 36.7Mpps
        • Supports up to 4K MAC Addresses
        • 4Mb Packet Buffer
        • 10K Jumbo Frames compatibility
        • Wirespeed Forwarding for maximum throughput

      • Layer 2 Standards:

        • Compliant with a range of IEEE standards including 802.3, 802.3u, 802.3ab, and more
        • SFP ports support a variety of IEEE standards for greater flexibility

      • Electrical Characteristics:

        • Max Power Consumption: 400W
        • AC Input: 100 – 240 V AC, 50/60 Hz
        • High MTBF (Mean Time Between Failures) of 100K hours

      • Physical Characteristics:

        • Dimensions: 17.3” W x 8.8” D x 1.7” H
        • Includes 19-inch rack mounting hardware
        • Weight: 7.8 lb (3.5 kg)

      • Environmental Requirements:

        • Operating Temperature Range: 14 to 131°F
        • Storage Temperature Range: -4 to 158°F
        • Humidity Tolerance: 5 to 95% (non-condensing)

      • Certifications:

        • Complies with EN 55022, FCC Part 15 Class B, VCCI Class B
        • Safety Certified: CE/LVD EN60950

      • Warranty:

        • Comprehensive five-year warranty, including power supply for added assurance.
