Description

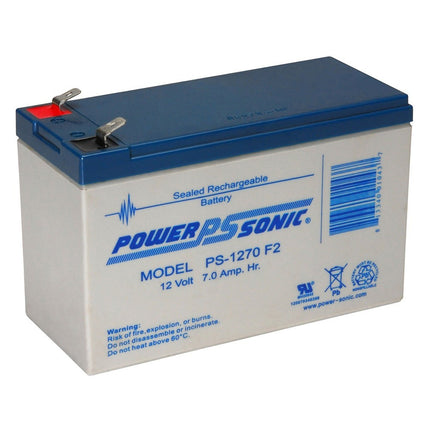

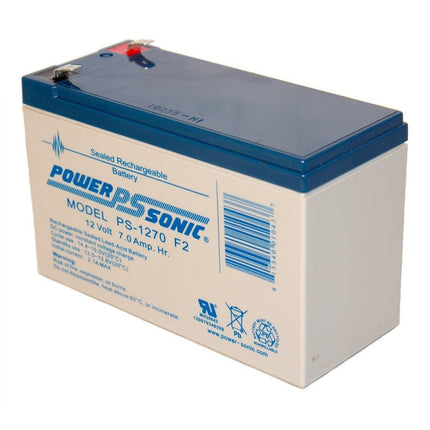

PowerSonic PS-1270-F2 12 Volt 7 AH Sealed Lead Acid SLA / AGM Battery .250 F2 Terminal
The Power-Sonic valve regulated sealed lead acid batteries are maintenance free, easy to handle, rugged and economical. It has a characteristic of high discharge rate, wide operating temperature, long service life and deep discharge recover.• Absorbent Glass Mat (AGM) technology for superior performance.• Valve regulated, spill proof construction allows safe operation in any position.• Power/volume ratio yielding unrivaled energy density.
Specifications:
Chemistry: SLA (Sealed Lead Acid).
Terminal Type: F2 - .250" Quick Connect
Nominal Voltage: 12 Volts (6 Cells).
Nominal Capacity:
20-Hour (125mA to 10.50V). 2.50 Ah.
10-Hour (220mA to 10.50V).. 2.20 Ah.
5-Hour (400mA to 10.20V).. 2.00 Ah.
1-Hour (1.5A to 9.00V).. 1.50 Ah.
15-Min. (4.5A to 9.00V).. 1.13 Ah.
Energy Density (20-Hour Rate): 1.32 W-h/in³ (80.30 W-h/l).
Specific Energy (20-Hour Rate): 14.29 W-h/lb (31.49 W-h/kg).
Internal Resistance (approx.): 60 milliohms.
Max Discharge Current (7 Min.): 300.0 amperes.
Max Short-Duration Discharge Current (10 Sec.): 7.5 amperes.
Operating Temperature Range:
Charge: -4°F (-20°C) to 122°F (50°C).
Discharge: -40°F (-40°C) to 140°F (60°C).
Dimensions (LxWxH): 7.00" x 1.38" x 2.56" (178mm 35mm 65mm).
Approximate Weight: 2.10 lbs. (0.95 kg).
Batteries are fully charged at factory, but may require a recharge prior to first use.
