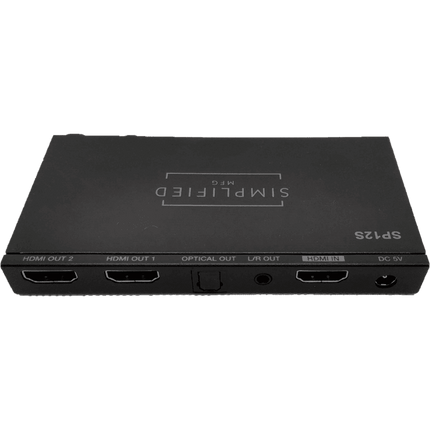

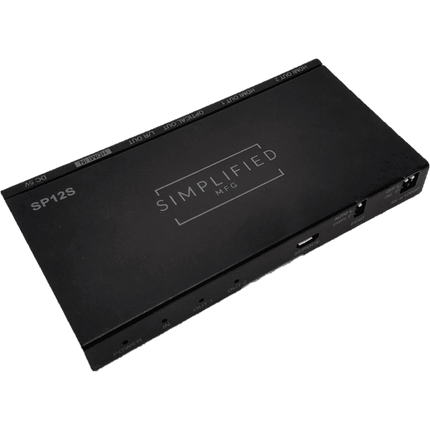

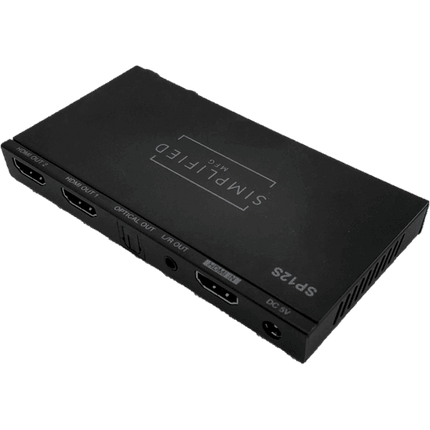

Simplified MFG SP12S: 1 in 2 Out Scaling HDMI 2.0b Splitter with Audio Extraction
Tri-Tek Electronics is proud to offer the Simplified MFG SP12S, a high-performance HDMI splitter that scales and distributes a single HDMI source to two outputs, while also supporting audio extraction. As an authorized distributor, we ensure full manufacturer warranty coverage, competitive pricing, and comprehensive factory support.
Product Overview
The Simplified MFG SP12S is a versatile HDMI 2.0b splitter designed to distribute one HDMI source to two outputs with independent scaling capabilities for each output. It supports resolutions up to 4K @ 60Hz and features advanced audio extraction, allowing you to send audio to external sound systems without compromising video quality. Ideal for both home and professional AV setups, the SP12S ensures that you can manage and distribute high-quality video and audio signals effectively.
Key Features
-
1 in 2 Out HDMI Splitting: Distributes one HDMI source to two outputs, providing flexibility for various display configurations.
-
4K UHD Resolution Support: Supports up to 4K @ 60Hz resolution, ensuring sharp and clear video quality.
-
Independent Output Scaling: Each output can be scaled independently, allowing for simultaneous 4K and 1080p output to different displays.
-
HDMI 2.0b Compliance: Fully compliant with HDMI 2.0b, supporting HDR, HDCP 2.2, and 18Gbps bandwidth for high-definition video and audio.
-
Audio Extraction: Extracts audio from the HDMI source for output to optical (Toslink) or analog (3.5mm) audio systems, enhancing audio flexibility.
-
Advanced EDID Management: Provides robust EDID management to ensure compatibility with a wide range of displays and audio devices.
-
Compact and Durable Design: Features a sleek and durable build for reliable performance in various installation environments.
Technical Specifications
| Specification |
Details |
| HDMI Inputs |
1 x HDMI |
| HDMI Outputs |
2 x HDMI |
| Max Resolution |
3840x2160 @ 60Hz |
| Output Scaling |
Independent scaling for each output |
| HDMI Version |
HDMI 2.0b |
| Audio Outputs |
Optical (Toslink), Analog (3.5mm) |
| Audio Formats |
LPCM 2.0/5.1, Dolby Digital, DTS |
| EDID Management |
Full EDID management |
| Control Options |
No external control required (plug-and-play) |
| Power Supply |
DC 5V, 2A |
| Dimensions |
5.0” x 3.0” x 1.0” |
| Weight |
0.6 lbs |
Installation Scenario
In a home theater setup, the Simplified MFG SP12S allows you to connect a single 4K source, such as a Blu-ray player or a streaming device, to two displays, such as a TV and a projector. Each output can be independently scaled, enabling you to send 4K content to the TV and 1080p content to the projector. The audio extraction feature provides the flexibility to route the audio to a high-fidelity sound system, enhancing the overall entertainment experience.
In a corporate environment, the SP12S can be used to connect a single presentation source to multiple displays in different rooms or areas. The independent scaling ensures that each display receives the appropriate resolution, while the audio extraction allows for connection to a central audio system, facilitating clear communication during meetings or presentations.
For commercial applications, such as digital signage or retail displays, the SP12S enables the distribution of promotional videos or informational content to multiple screens throughout the venue. The audio extraction can be used to provide background music or announcements through the store’s audio system, creating an engaging customer experience.
