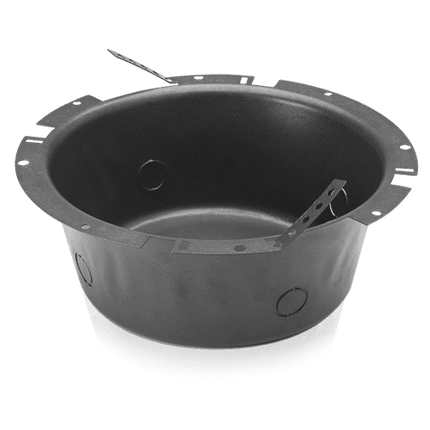

Atlas Sound CS95-8, 8 inch Recessed Round Stacking Enclosure
DESCRIPTION
Ideal for contractors with limited storage facilities, this conically shaped enclosure nests to achieve reduced inventory space requirements and transportation costs. Furnished with four combination conduit knockouts 1/2" – 3/4" (13-19mm), four J-clips and two flexible perforated mounting straps. One-piece CRS construction, undercoated, patch-jute lined, and finished in epoxy. The CS95-8 enclosure is a perfect for use with AtlasIED model SD72W,SD72WV or high performance 8" 8-watt coaxial model GD87W speaker/ transformer/baffle packages. Note: Enclosure is not designed to mount other speaker packages with pre-mounted high performance transformers (HT-167, HT-327).
FEATURES
Cost Effective Enclosure System for General Use
Perfect for SD72W or DLS4
Stackable for Easy Storage
SPECIFICATIONS
Depth
4 1/4" (10.80 cm)
Diameter
11 3/4" (29.85 cm)
Shipping Weight
2.33 lbs (1.06 kgs)
Mounts Baffle
51-8, 60-8(W), 61-8W, 62-8, 63-8, 67-8(W), G22-8, M222(W), P900, VP60-R
Safety Listed
1480, 2043
