SMA Plug 3-Piece Straight Crimp RG-58/U

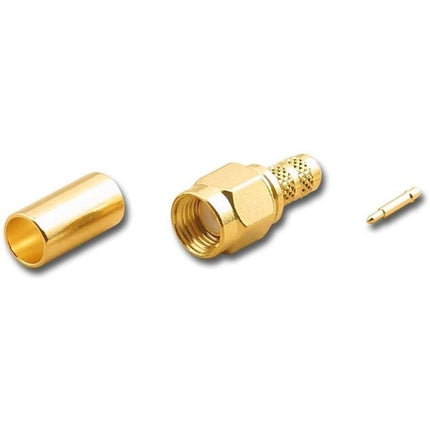

Pan Pacific SMA-2518P, SMA Plug 3-Piece Straight Crimp for RG-58/U

The Pan Pacific SMA-2518P is a 3-piece SMA straight crimp plug designed for use with RG-58/U coaxial cable. This high-quality connector is ideal for RF and microwave applications, offering stable and reliable connections in demanding environments. Its robust design ensures high durability and superior performance, making it a preferred choice for installers and technicians in various industries, including telecommunications, wireless communications, and test equipment.

The SMA-2518P features a gold-plated center pin for excellent signal transmission, along with a nickel-plated brass body for enhanced durability and corrosion resistance. This connector is designed for quick and secure crimp connections, providing a long-lasting, low-loss interface.

Key Features:

  • Connector Type: SMA straight crimp plug
  • Cable Type: RG-58/U coaxial cable
  • 3-Piece Design: Ensures easy and secure crimping
  • Center Pin Material: Gold-plated for excellent conductivity
  • Body Material: Gold-plated brass for corrosion resistance
  • Wide Frequency Range: Suitable for RF and microwave applications
  • Low VSWR: Ensures minimal signal loss

Specifications:

  • Impedance: 50 Ohms
  • Frequency Range: DC to 18 GHz
  • VSWR: 1.3:1 (typical)
  • Center Pin Contact Resistance: ≤ 3 mΩ
  • Outer Contact Resistance: ≤ 2 mΩ
  • Insulation Resistance: ≥ 5,000 MΩ
  • Temperature Range: -65°C to +165°C
  • Body Finish: Nickel-plated brass
  • Center Pin Finish: Gold-plated

Example Installation Scenario:

An installer working on a data communication system would use the Pan Pacific SMA-2518P for connecting an RG-58/U coaxial cable to wireless transmission equipment. The 3-piece design allows for quick assembly, while the gold-plated center pin ensures low signal loss in high-frequency applications. This connector is ideal for use in tight spaces where performance and reliability are critical, such as in a server room or on-site wireless network installations.

Benefits for Installers and Technicians:

  • Easy Crimping: The 3-piece design simplifies installation, making it faster and easier to achieve a secure connection.
  • High Performance: Gold-plated center pin minimizes signal loss, supporting high-frequency operations.
  • Durability: Gold-plated brass body offers long-lasting corrosion resistance, ensuring dependable connections even in harsh environments.

Tri-Tek Electronics is an authorized distributor of Pan Pacific products, ensuring that the SMA-2518P comes with a full manufacturer warranty and factory support. We offer the best pricing and reliable service at our retail location in Mesa, AZ.

Product form

Pan Pacific SMA-2518P, SMA Plug 3-Piece Straight Crimp for RG-58/U The Pan Pacific SMA-2518P is a 3-piece SMA straight crimp... Read more

Free local pickup in our store

SKU: PANSMA-2518P
UPC: 0725310155379

4 in stock

$4.29 $3.09
